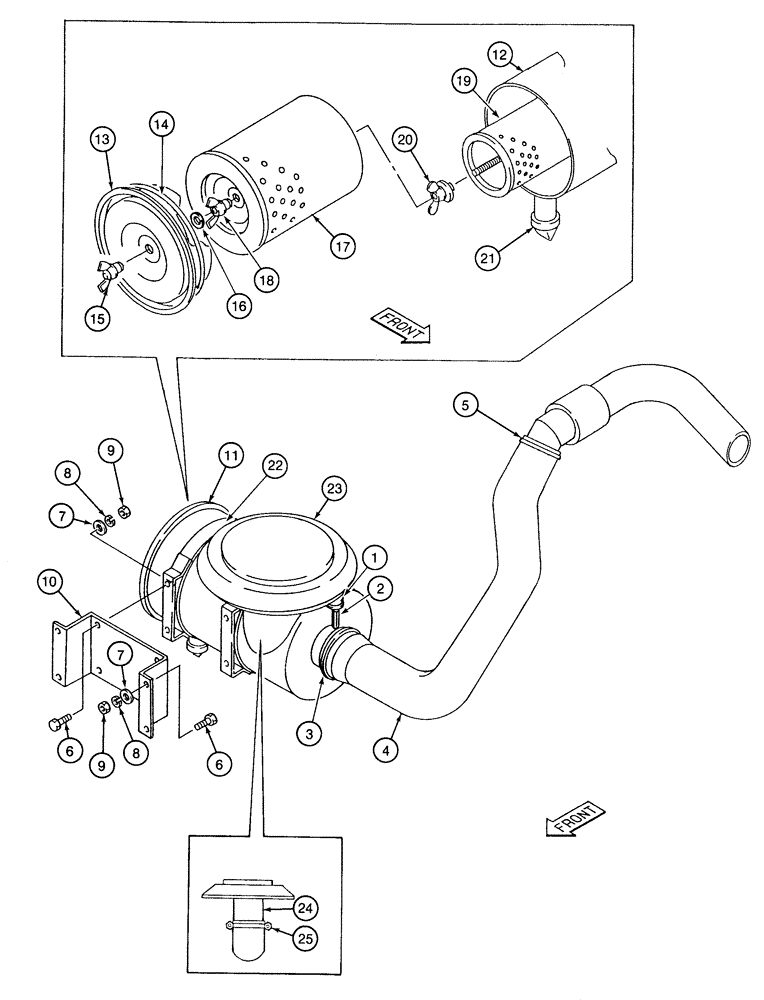

Запчасти Case 9060 (2-08) - AIR CLEANER SYSTEM (02) - ENGINE

1

150042A1

SENSOR

SWITCH - air restriction indicator

1шт.

2

150116A1

SOCKET

ADAPTER - switch

1шт.

3

170076A1

CLAMP

- hose

1шт.

4

170017A1

INTAKE AIR HOSE,101.60 mm ID, 127.00 mm ID x 653.00 mm

101.60 mm ID, 127.00 mm ID x 653.00 mm

1шт.

5

170075A1

CLAMP

- hose

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

8шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

8шт.

10

170013A1

BRACKET

- mounting, air cleaner

1шт.

151013A1

AIR CLEANER

CLEANER - air, Includes: Ref. 11 - 23

1шт.

11

150892A1

AIR CLEANER

CLEANER - air, without cover and clamps, Includes: Ref. 12 - 21

1шт.

12

157234A1

AIR CLEANER

HOUSING - air cleaner

1шт.

13

157235A1

COVER

- front

1шт.

14

157236A1

GASKET

-, Serial Range: cover,-housing

1шт.

15

156676A1

NUT

- wing type, cover retaining

1шт.

16

156677A1

CLIP

SPACER - cover mounting

1шт.

17

150783A1

ELEMENT

- outer, air cleaner

1шт.

18

156678A1

NUT

NUT - wing type, outer element retaining

1шт.

19

151397A1

AIR FILTER

ELEMENT - inner, air cleaner

1шт.

20

156679A1

NUT

NUT - wing type, inner element retaining

1шт.

21

156680A1

VALVE

CUP - dust, air cleaner

1шт.

22

150791A1

COLLAR CLAMP

BRACKET - air cleaner mounting

2шт.

23

150786A1

CAP

COVER - air inlet

1шт.

24

170014A1

AIR INTAKE TUBE,152.4 mm ID, 152.4 mm OD

TUBE - air intake

1шт.

25

170077A1

CLAMP

- tube

1шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

8шт.
