Запчасти Case 9060 (9-68) - H & H BUCKETS, SEVERE DUTY (09) - CHASSIS/ATTACHMENTS

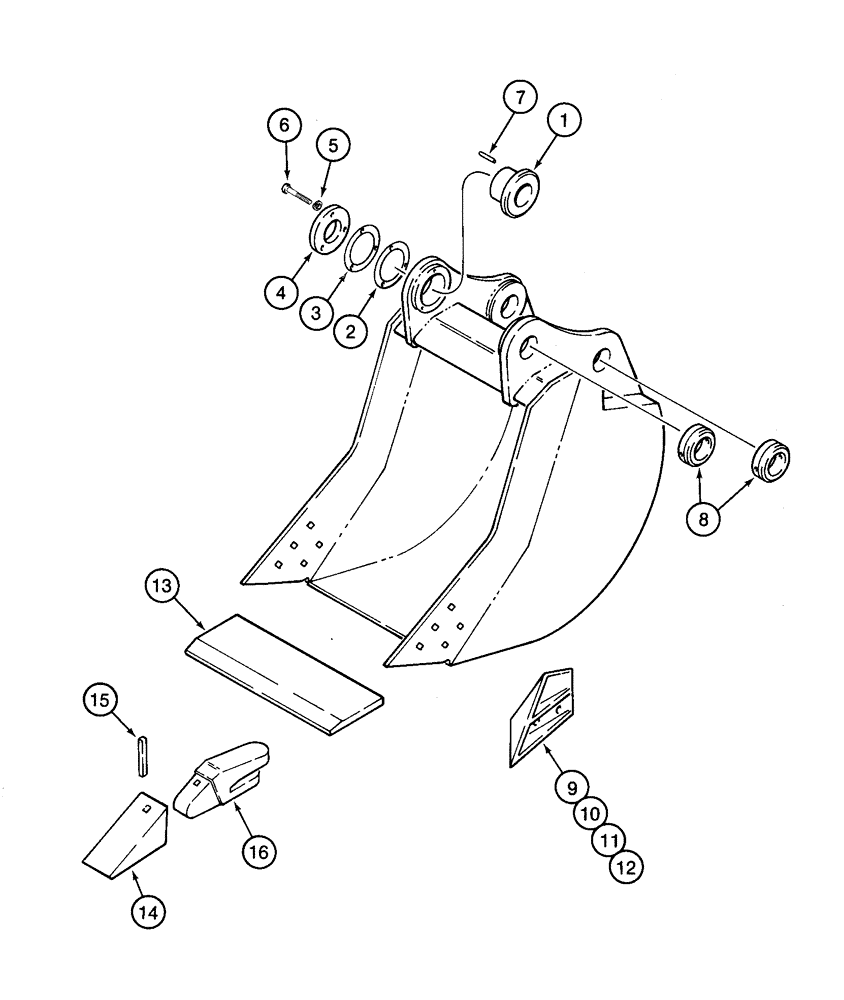

Схема запчастей Case 9060 - (9-68) - H & H BUCKETS, SEVERE DUTY (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 4 teeth, 1.89 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 5 teeth, 2.14 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 5 teeth, 2.30 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

125676A1

BUSHING

- adjustable

1шт.

2

125677A1

SHIM

- adjustable bushing

1шт.

3

125678A1

SHIM

- adjustable bushing

6шт.

4

125680A1

RETAINER

PLATE - cover, adjustable bushing

1шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

6

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

7

125664A1

DOWEL

PIN - dowel, special, adjustable bushing

2шт.

8

125681A1

BOSS

BUSHING - non adjustable, with locking collar

2шт.

128170A1

HALF BLADE

KIT - edge, side cutting, 5 inch, Includes: Ref. 10 - 12

1шт.

9

125934A1

EDGE, CUTTING

EDGE - side cutting, left-hand, 5 inch, kit

1шт.

10

125936A1

EDGE, CUTTING

EDGE - side cutting, right-hand, 5 inch, kit

1шт.

11

320-21656

CARRIAGE BOLT,#3, 1" - 8 x 3 1/2", Gr 8

BOLT - plow, #3 head, 1 NC x 3-1/2 inch, grade 8, side cutting kit

10шт.

12

232-41316

NUT,1"-8, GC

NUT, LOCK, , Side cutting kit 1"-8, GC

10шт.

13

125738A1

EDGE, CUTTING

EDGE - cutting, center, 42 inch (1067 mm) bucket, 2-1/2 inch

1шт.

13

125739A1

EDGE, CUTTING

EDGE - cutting, center, 48 inch (1219 mm) bucket, 2-1/2 inch

1шт.

13

125740A1

EDGE, CUTTING

EDGE - cutting, center, 54 inch (1372 mm) bucket, 2-1/2 inch

1шт.

14

122677A1

TOOTH

- standard point, 2-1/2 inch cutting edges

1шт.

See figures 9-70 and 9-72 for point, pin and shank options.

1шт.

15

122678A1

FASTENER

PIN - flex, standard, 2-1/2 inch cutting edges

1шт.

See figures 9-70 and 9-72 for point, pin and shank options.

1шт.

16

122679A1

ADAPTER

SHANK - tooth, 2-1/2 inch, cutting edges

1шт.

See figures 9-70 and 9-72 for point, pin and shank options.

1шт.

Выбрано товаров: 28
