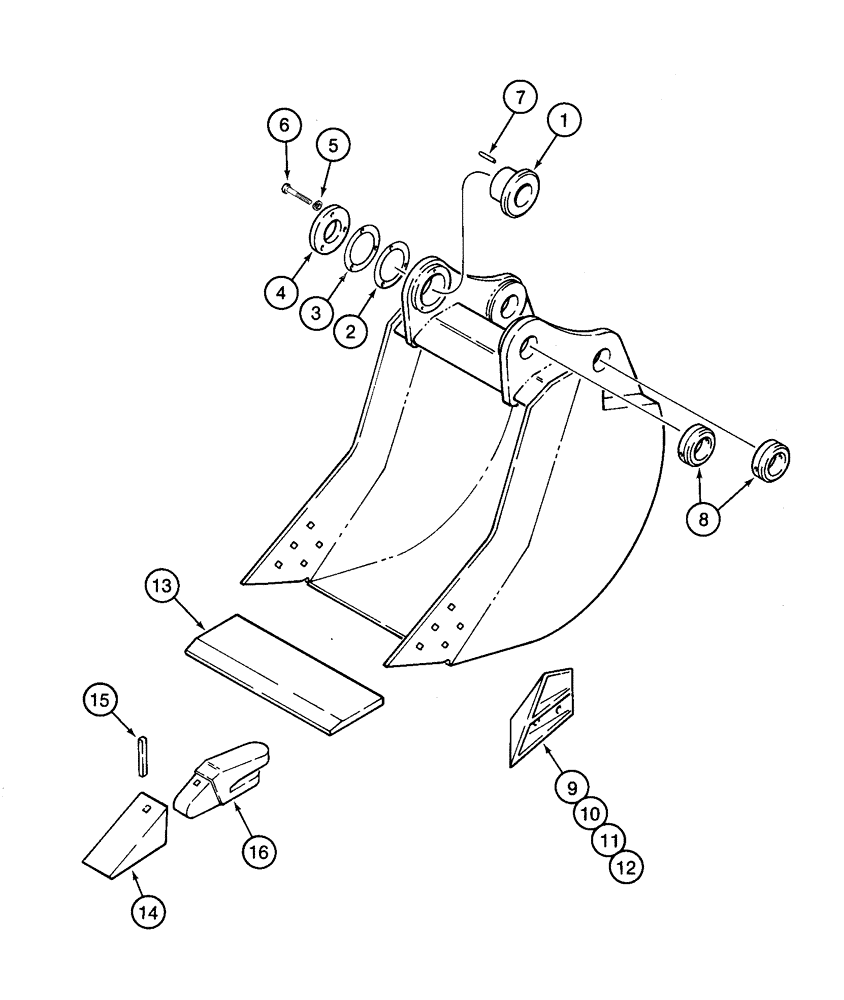

Запчасти Case 9060 (9-64[2]) - H & H BUCKETS, HEAVY DUTY - HIGH CAPACITY (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

BUCKET - 36 inch ( 914 mm), with 4 teeth, 1.92 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 2.34 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 5 teeth, 2.57 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 5 teeth, 2.84 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 5 teeth, 3.10 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 60 inch (1524 mm), with 6 teeth, 3.24 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 72 inch (1828 mm), with 7 teeth, 3.46 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

125676A1

BUSHING

- adjustable

1шт.

2

125677A1

SHIM

- adjustable bushing

1шт.

3

125678A1

SHIM

- adjustable bushing

6шт.

4

125680A1

RETAINER

PLATE - cover, adjustable bushing

1шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

6

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

7

125664A1

DOWEL

PIN - dowel, special, adjustable bushing

2шт.

8

125681A1

BOSS

BUSHING - non adjustable, with locking collar

2шт.

128170A1

HALF BLADE

KIT - edge, side cutting, 5 inch, Includes: Ref. 9 - 12

1шт.

9

125934A1

EDGE, CUTTING

EDGE - side cutting, left-hand, 5 inch

1шт.

10

125936A1

EDGE, CUTTING

EDGE - side cutting, right-hand, 5 inch

1шт.

11

320-21656

CARRIAGE BOLT,#3, 1" - 8 x 3 1/2", Gr 8

BOLT - plow, #3 head, 1 NC x 3-1/2 inch, grade 8, side cutting kit

10шт.

12

232-41316

NUT,1"-8, GC

NUT, LOCK, , Side cutting kit 1"-8, GC

10шт.

13

125731A1

EDGE, CUTTING

EDGE - cutting, center, 36 inch (914 mm) bucket, 2 inch

1шт.

13

125732A1

EDGE, CUTTING

EDGE - cutting, center, 42 inch (1067 mm) bucket, 2 inch

1шт.

13

125733A1

EDGE, CUTTING

EDGE - cutting, center, 48 inch (1219 mm) bucket, 2 inch

1шт.

13

125734A1

EDGE, CUTTING

EDGE - cutting, center, 54 inch (1372 mm) bucket, 2 inch

1шт.

13

125735A1

EDGE, CUTTING

EDGE - cutting, center, 60 inch (1524 mm) bucket, 2 inch

1шт.

13

125737A1

EDGE, CUTTING

EDGE - cutting, center, 72 inch (1828 mm) bucket, 2 inch

1шт.

14

127225A1

TOOTH

- standard point, 2 inch cutting edges

1шт.

See figures 9-70 and 9-72 for point, pin and shank options.

1шт.

15

127229A1

PIN

- flex, point to shank, 2 inch cutting edges

1шт.

See figures 9-70 and 9-72 for point, pin and shank options.

1шт.

16

127224A1

ADAPTER

SHANK - tooth, 2 inch, 2 inch cutting edges

1шт.

See figures 9-70 and 9-72 for point, pin and shank options.

1шт.
