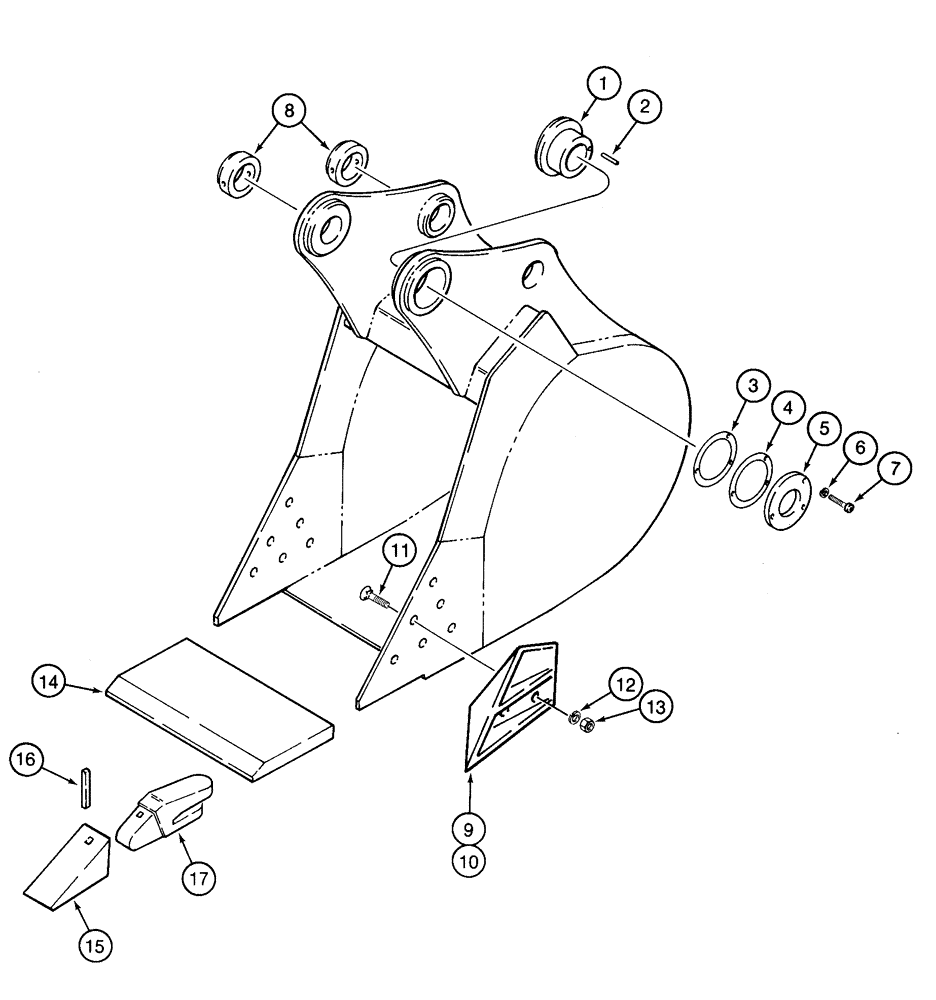

Запчасти Case 9060 (9-62) - CENTRAL FABRICATORS BUCKETS, SEVERE DUTY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
BUCKET - 42 inch (1067 mm), with 4 teeth, 1.85 cu. yd.
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET - 48 inch (1219 mm), with 5 teeth, 2.15 cu. yd.
1шт.
Order bucket assembly from Machinery Price List.
1шт.
REF
INSTRUCTION
BUCKET - 54 inch (1372 mm), with 5 teeth, 2.45 cu. yd.
1шт.
Order bucket assembly from Machinery Price List.
1шт.
1
122691A1
BUSHING
- adjustable, Includes: Ref. 2
1шт.
2
NSS
NOT SOLD SEPARAT
PIN - dowel, special
2шт.
3
122692A1
SHIM
- adjustable bushing
2шт.
4
122693A1
SHIM
- adjustable bushing
6шт.
5
122694A1
RETAINER
PLATE - cover, adjustable bushing
1шт.
6
429-11062
LOCK WASHER
WASHER - lock, 5/8 inch
3шт.
7
361-36232
HEX SOC SCREW,5/8" - 11 x 2"
BOLT - hex socket, 5/8 NC x 2 inch
3шт.
8
122695A1
BOSS
BUSHING - non-adjustable, with locking collar
2шт.
128169A1
HALF BLADE
KIT - edge, side cutting, 6 inch, Includes: Ref. 9 - 13
1шт.
9
122682A1
CUTTER
EDGE - cutting, bucket, right-hand side, kit
1шт.
10
122683A1
CUTTER
EDGE - cutting, bucket, left-hand side, kit
1шт.
11
320-21456
CARRIAGE BOLT,#3, 7/8" - 9 x 3 1/2", Gr 8
BOLT - plow, #3 head, 7/8 NC x 3-1/2 inch, grade 8, side cutting kit
6шт.
12
392-21088
LOCK WASHER,7/8"
side cutting kit 7/8"
6шт.
13
329-1014
NUT,7/8"-9, G8
Side cutting kit 7/8"-9, G8
6шт.
14
125029A1
EDGE, CUTTING
EDGE - cutting, center, 42 inch (1067 mm) bucket, 2-1/2 inch
1шт.
14
125030A1
EDGE, CUTTING
EDGE - cutting, center, 48 inch (1219 mm) bucket, 2-1/2 inch
1шт.
14
125031A1
EDGE, CUTTING
EDGE - cutting, center, 54 inch (1372 mm) bucket, 2-1/2 inch
1шт.
15
122677A1
TOOTH
- standard point, 2-1/2 inch cutting edges
1шт.
See figures 9-70 and 9-72 for point, pin and shank options.
1шт.
16
122678A1
FASTENER
PIN - flex, standard, 2-1/2 inch cutting edges
1шт.
See figures 9-70 and 9-72 for point, pin and shank options.
1шт.
17
122679A1
ADAPTER
SHANK - tooth, 2-1/2 inch cutting edges
1шт.
See figures 9-70 and 9-72 for point, pin and shank options.
1шт.
Выбрано товаров: 29
