Запчасти Case 9060 (9-58[2]) - CENTRAL FABRICATORS BUCKETS, HEAVY DUTY - HIGH CAPACITY (09) - CHASSIS/ATTACHMENTS

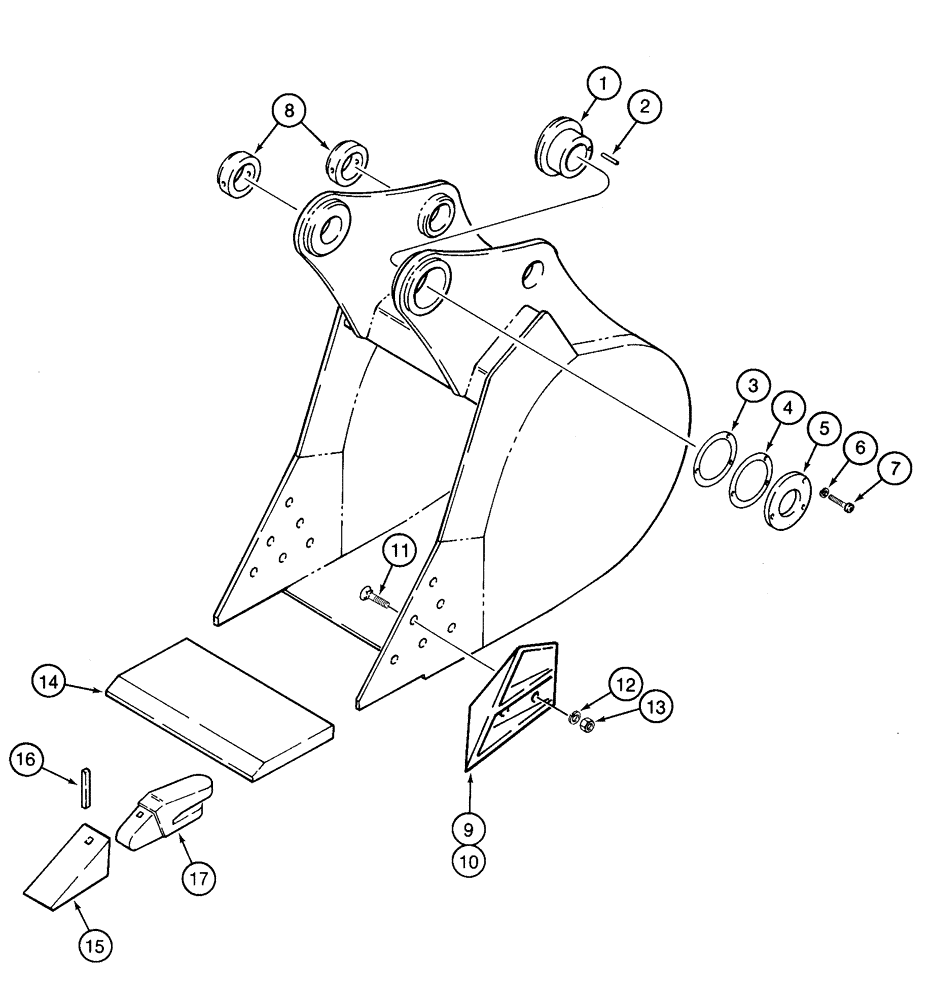

Схема запчастей Case 9060 - (9-58[2]) - CENTRAL FABRICATORS BUCKETS, HEAVY DUTY - HIGH CAPACITY (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

BUCKET - 36 inch ( 914 mm), with 4 teeth, 1.96 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 4 teeth, 2.32 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 48 inch (1219 mm), with 5 teeth, 2.69 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 54 inch (1372 mm), with 5 teeth, 3.06 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 60 inch (1524 mm), with 6 teeth, 3.43 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 72 inch (1829 mm), with 7 teeth, 4.17 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122691A1

BUSHING

- adjustable, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

PIN - dowel, special, 12 x 30 mm

1шт.

3

122692A1

SHIM

- adjustable bushing

2шт.

4

122693A1

SHIM

- adjustable bushing

6шт.

5

122694A1

RETAINER

PLATE - cover, adjustable bushing

1шт.

6

429-11062

LOCK WASHER

WASHER - lock, 5/8 inch

3шт.

7

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

BOLT - hex socket, 5/8 NC x 2 inch

3шт.

8

122695A1

BOSS

BUSHING - non-adjustable, with locking collar

2шт.

128169A1

HALF BLADE

KIT - edge, side cutting, 6 inch, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side, kit

1шт.

10

122683A1

CUTTER

EDGE - cutting, bucket, left-hand side, kit

1шт.

11

320-21456

CARRIAGE BOLT,#3, 7/8" - 9 x 3 1/2", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3-1/2 inch, grade 8, side cutting kit

6шт.

12

392-21088

LOCK WASHER,7/8"

side cutting kit 7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

Side cutting kit 7/8"-9, G8

6шт.

14

125010A1

EDGE, CUTTING

EDGE - cutting, center, 36 inch (914 mm) bucket, 2 inch

1шт.

14

125011A1

EDGE, CUTTING

EDGE - cutting, center, 42 inch (1067 mm) bucket, 2 inch

1шт.

14

125012A1

EDGE, CUTTING

EDGE - cutting, center, 48 inch (1219 mm) bucket, 2 inch

1шт.

14

125013A1

EDGE, CUTTING

EDGE - cutting, center, 54 inch (1372 mm) bucket, 2 inch

1шт.

14

125014A1

EDGE, CUTTING

EDGE - cutting, center, 60 inch (1524 mm) bucket, 2 inch

1шт.

14

125033A1

EDGE, CUTTING

EDGE - cutting, center, 72 inch (1828 mm) bucket, 2 inch

1шт.

15

122671A1

TOOTH

- standard point, 2 inch cutting edges

1шт.

See figures 9-70 and 9-72 for point, pin and shank options.

1шт.

16

122672A1

FASTENER

PIN - flex, point to shank, standard, 2 inch cutting edges

1шт.

See figures 9-70 and 9-72 for point, pin and shank options.

1шт.

16

176554A1

PIN

- steel, point to shank, replacement option, 2 inch cutting edges

1шт.

See figures 9-70 and 9-72 for point, pin and shank options.

1шт.

17

122673A1

BUCKET TOOTH SHANK

- tooth, 2 inch, cutting edges

1шт.

See figures 9-70 and 9-72 for point, pin and shank options.

1шт.

Выбрано товаров: 40
