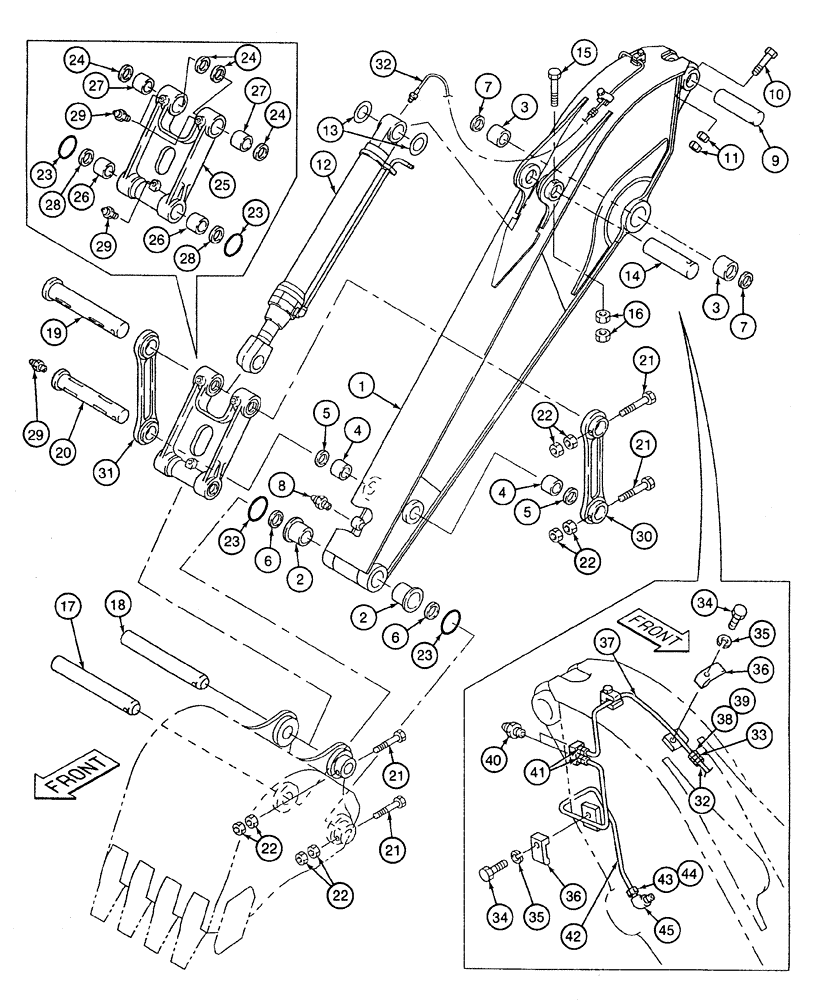

Запчасти Case 9060 (9-56) - 8,11, & 13 FT (2-1/2, 3-1/3 & 4 M) ARMS AND LINKAGE (09) - CHASSIS/ATTACHMENTS

1

160371A1

ARM

- 8 ft 2 inch (2.49 M) long

1шт.

1

170090A1

ARM

- 11 ft 1 inch (3.36 M) long

1шт.

1

170091A1

ARM

- 13 ft 1 inch (4.0 M) long

1шт.

2

153806A1

BUSHING

-, Serial Range: arm-bucket

2шт.

3

151352A1

BUSHING

-, Serial Range: boom-arm

2шт.

4

151202A1

BUSHING,90mm ID x 105mm OD x 90mm L

- Center, Serial Range: link-arm

2шт.

5

150044A1

SEAL

- dust, bushing, Serial Range: link-arm

2шт.

6

150050A1

SEAL

- dust, bushing, Serial Range: arm-bucket

2шт.

7

150331A1

SEAL

SEAL - dust, bushing, Serial Range: boom-arm

2шт.

8

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

9

151435A1

PIN ASSY.

PIN - attaching, arm, Serial Range: cylinder-arm

1шт.

10

514-1402

BOLT,Hex, M24 x 2 x 200mm, Cl 10.9

- hex, 24 - 2.0 x 200 mm, class 10.9

1шт.

11

825-13424

NUT,M24 x 2, Cl 8

- hex, 24 mm - 2.0

2шт.

12

151581A1

CYLINDER ASSY.

CYLINDER - 6-5/16 (160) ID x 51-7/16 inch (1306 mm) stroke, parts list figure 8-92

1шт.

13

151443A1

SHIM,111mm ID x 190mm OD x 1.2mm Thk

- 0.04 inch thick

1шт.

14

151435A1

PIN ASSY.

PIN - attaching, arm cylinder, closed end

1шт.

15

514-1402

BOLT,Hex, M24 x 2 x 200mm, Cl 10.9

- hex, 24 - 2.0 x 200 mm, class 10.9

1шт.

16

825-13424

NUT,M24 x 2, Cl 8

- hex, 24 mm - 2.0

2шт.

17

153809A1

PIN ASSY.

PIN - attaching, Serial Range: arm-bucket

1шт.

18

153810A1

PIN ASSY.

PIN - attaching, center, Serial Range: link-bucket

1шт.

19

151406A1

PIN

- attaching, center link to bucket cylinder, standard

1шт.

19

164299A1

PIN,110mm OD x 624mm L

- attaching, center link to bucket cylinder, heavy duty option

1шт.

20

151412A1

PIN ASSY.

PIN - attaching, outer, Serial Range: links-arm

1шт.

21

514-1402

BOLT,Hex, M24 x 2 x 200mm, Cl 10.9

- hex, 24 - 2.0 x 200 mm, class 10.9

4шт.

22

825-13424

NUT,M24 x 2, Cl 8

- hex, 24 mm - 2.0

8шт.

23

150322A1

O-RING

- arm to bucket and center link

4шт.

24

150055A1

SEAL

- dust, center link at bucket cylinder

4шт.

25

164444A1

POWER ARM

LINK - bucket, inner, was 163758A1, standard (cast ductile iron)

1шт.

25

164313A1

LINK ASSY.

LINK - bucket, inner, heavy duty option (welded steel)

1шт.

26

153807A1

RING

BUSHING - center link at bucket

2шт.

27

151345A1

BUSHING,110mm ID x 125mm OD x 130mm L

- center link at bucket cylinder

2шт.

28

150050A1

SEAL

- dust, center link at bucket

2шт.

29

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

30

164224A1

LINKAGE YOKE

LINK - bucket, outer, left-hand, at arm, was 151305A1, standard (cast ductile iron)

1шт.

30

164315A1

POWER ARM

LINK - bucket, outer, left-hand, at arm, heavy duty option (welded steel)

1шт.

31

164223A1

LINKAGE YOKE

LINK - bucket, outer, right-hand, at arm, was 151311A1, standard (cast ductile iron)

1шт.

31

164314A1

LINKAGE YOKE

LINK - bucket, outer, right-hand, at arm, heavy duty option (welded steel)

1шт.

32

152776A1

HOSE,560.00 mm

- At closed end of bucket cylinder 560.00 mm

1шт.

33

152032A1

UNION

CONNECTOR - straight

1шт.

34

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 30 mm, class 10.9

3-4шт.

35

892-10008

LOCK WASHER,M8

WASHER - lock, 8 mm

3-4шт.

36

151504A1

CLAMP

- lubrication line, single type

3-4шт.

157255A1

TUBE ASSY.

TUBE - lubrication

1шт.

151700A1

TUBE ASSY.

TUBE - lubrication, Includes: Ref. 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

TUBE - lubrication

1шт.

38

151949A1

TUBE NUT,8 mm OD

NUT - hex, compression, hydraulic tube

2шт.

39

151991A1

SPACER

SLEEVE - compression, hydraulic tube

2шт.

40

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree, straight

2шт.

41

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special, lubrication line

2шт.

151703A1

TUBE ASSY.,995.5, 260.3 mm Length

TUBE - lubrication, Includes: Ref. 42 - 44

1шт.

42

NSS

NOT SOLD SEPARAT

TUBE - lubrication

1шт.

43

151949A1

TUBE NUT,8 mm OD

NUT - hex, compression, hydraulic tube

2шт.

44

151991A1

SPACER

SLEEVE - compression, hydraulic tube

2шт.

45

152627A1

ELBOW

- 90 degree, special

1шт.
