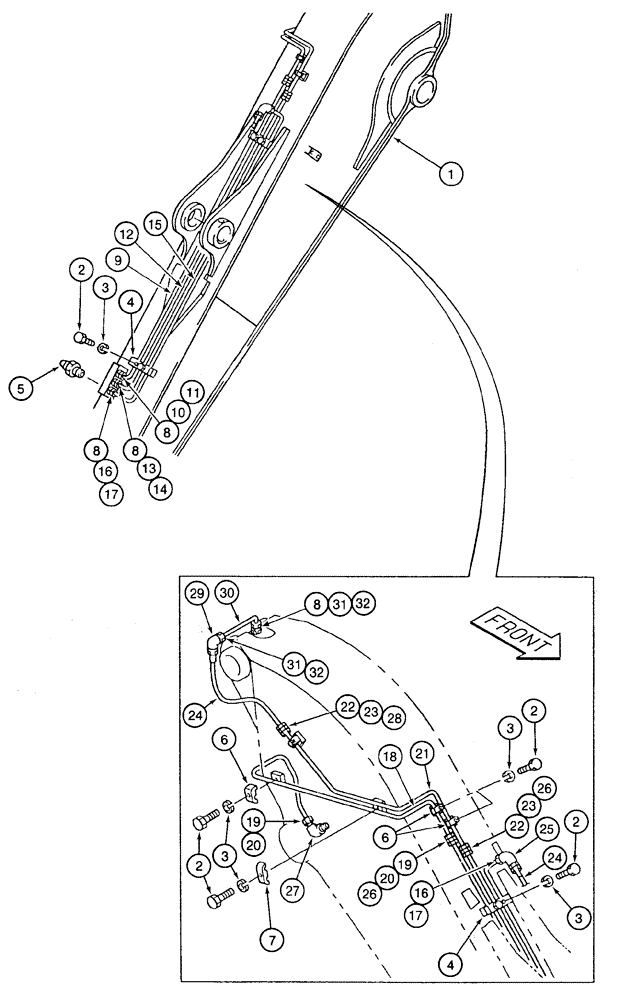

Запчасти Case 9060 (9-55A) - 17 FT 8 INCH (5.38 M) ARM, LUBRICATION SYSTEM (09) - CHASSIS/ATTACHMENTS

1

170092A1

ARM

- 17 ft 8 inch (5.38 M) long, if used, see figure 9-54 for components and linkage

1шт.

2

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 30 mm, class 10.9

9шт.

3

892-10008

LOCK WASHER,M8

WASHER - lock, 8 mm

9шт.

4

151497A1

CLAMP

- lubrication line, triple type

2шт.

5

153630A1

LUBE NIPPLE

FITTING - grease, straight

3шт.

6

151504A1

CLAMP

- lubrication line, single type

4шт.

7

153774A1

CLAMP

- double lubrication line

1шт.

8

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special, lubrication line

4шт.

153832A1

TUBE,3288, 91.5 mm Length

- lubrication, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

TUBE - lubrication

1шт.

10

151949A1

TUBE NUT,8 mm OD

NUT - hex, compression, hydraulic tube

2шт.

11

151991A1

SPACER

SLEEVE - compression, hydraulic tube

2шт.

153833A1

TUBE,3218, 115.5 mm Length

- lubrication, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - lubrication

1шт.

13

151949A1

TUBE NUT,8 mm OD

NUT - hex, compression, hydraulic tube

2шт.

14

151991A1

SPACER

SLEEVE - compression, hydraulic tube

2шт.

153834A1

TUBE,2290, 139.5 mm Length

- lubrication, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - lubrication

1шт.

16

151949A1

TUBE NUT,8 mm OD

NUT - hex, compression, hydraulic tube

2шт.

17

151991A1

SPACER

SLEEVE - compression, hydraulic tube

2шт.

153837A1

TUBE

- lubrication, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - lubrication

1шт.

19

151949A1

TUBE NUT,8 mm OD

NUT - hex, compression, hydraulic tube

2шт.

20

151991A1

SPACER

SLEEVE - compression, hydraulic tube

2шт.

153836A1

TUBE

- lubrication, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

TUBE - lubrication

1шт.

22

151949A1

TUBE NUT,8 mm OD

NUT - hex, compression, hydraulic tube

2шт.

23

151991A1

SPACER

SLEEVE - compression, hydraulic tube

2шт.

24

151508A1

HOSE,700.00 mm

Nylon, At arm and bucket cylinders 700.00 mm

2шт.

25

153695A1

ELBOW

- 90 degree, lubrication, to bucket cylinder

1шт.

26

153694A1

UNION

CONNECTOR - straight, special

2шт.

27

152627A1

ELBOW

- 90 degree, special

1шт.

28

152032A1

UNION

CONNECTOR - straight

1шт.

29

153696A1

ELBOW

- 45 degree, lubrication line

1шт.

153835A1

TUBE,228, 50 mm Length

- lubrication, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

TUBE - lubrication

1шт.

31

151949A1

TUBE NUT,8 mm OD

NUT - hex, compression, hydraulic tube

2шт.

32

151991A1

SPACER

SLEEVE - compression, hydraulic tube

2шт.
