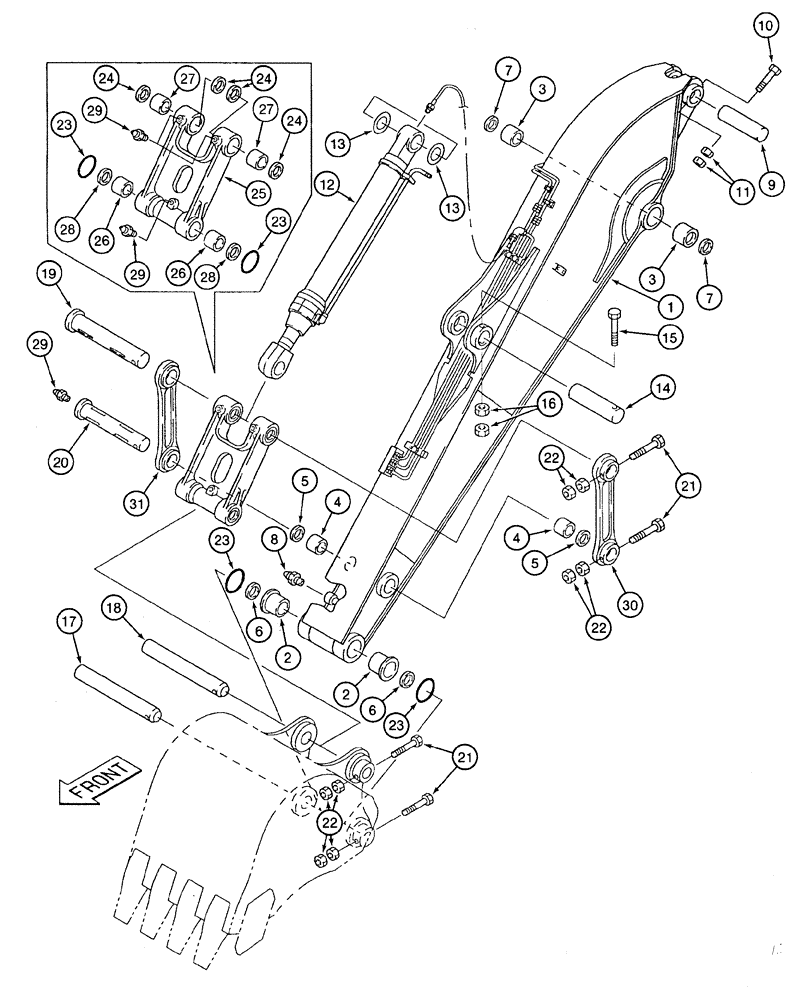

Запчасти Case 9060 (9-54) - 17 FT 8 INCH ARM AND LINKAGE (09) - CHASSIS/ATTACHMENTS

170092A1

ARM

- 17 ft 8 inch (5.38 M) long, see figure 9-055A for lubrication system, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

ARM - excavator

1шт.

2

153806A1

BUSHING

-, Serial Range: arm-bucket

2шт.

3

151352A1

BUSHING

-, Serial Range: boom-arm

2шт.

4

151202A1

BUSHING,90mm ID x 105mm OD x 90mm L

- Center, Serial Range: link-arm

2шт.

5

150044A1

SEAL

- dust, bushing, Serial Range: link-arm

2шт.

6

150050A1

SEAL

- dust, bushing, Serial Range: arm-bucket

2шт.

7

150331A1

SEAL

SEAL - dust, bushing, Serial Range: boom-arm

2шт.

8

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

9

151435A1

PIN ASSY.

PIN - attaching, arm, Serial Range: cylinder-arm

1шт.

10

514-1402

BOLT,Hex, M24 x 2 x 200mm, Cl 10.9

- hex, 24 - 2.0 x 200 mm, class 10.9

1шт.

11

825-13424

NUT,M24 x 2, Cl 8

- hex, 24 mm - 2.0

2шт.

12

151581A1

CYLINDER ASSY.

CYLINDER - 6-5/16 (160) ID x 51-7/16 inch (1306 mm) stroke, bucket, parts list figure 8-92

1шт.

13

151443A1

SHIM,111mm ID x 190mm OD x 1.2mm Thk

- 0.04 inch thick

1шт.

14

151435A1

PIN ASSY.

PIN - attaching, arm cylinder, closed end

1шт.

15

514-1402

BOLT,Hex, M24 x 2 x 200mm, Cl 10.9

- hex, 24 - 2.0 x 200 mm, class 10.9

1шт.

16

825-13424

NUT,M24 x 2, Cl 8

- hex, 24 mm - 2.0

2шт.

17

153809A1

PIN ASSY.

PIN - attaching, Serial Range: arm-bucket

1шт.

18

153810A1

PIN ASSY.

PIN - attaching, center, Serial Range: link-bucket

1шт.

19

151406A1

PIN

- attaching, center link to bucket cylinder, standard

1шт.

19

164299A1

PIN,110mm OD x 624mm L

- attaching, center link to bucket cylinder, heavy duty option

1шт.

20

151412A1

PIN ASSY.

PIN - attaching, outer, Serial Range: links-arm

1шт.

21

514-1402

BOLT,Hex, M24 x 2 x 200mm, Cl 10.9

- hex, 24 - 2.0 x 200 mm, class 10.9

4шт.

22

825-13424

NUT,M24 x 2, Cl 8

- hex, 24 mm - 2.0

8шт.

23

150322A1

O-RING

- arm to bucket and center link

4шт.

24

150055A1

SEAL

- dust, center link at bucket cylinder

4шт.

25

164444A1

POWER ARM

LINK - bucket, inner, standard (cast ductile iron)

1шт.

25

164313A1

LINK ASSY.

LINK - bucket, inner, heavy duty option (welded steel)

1шт.

26

153807A1

RING

BUSHING - center link, at bucket

2шт.

27

151345A1

BUSHING,110mm ID x 125mm OD x 130mm L

- center link, at bucket cylinder

2шт.

28

150050A1

SEAL

- dust, center link at bucket

2шт.

29

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

30

164224A1

LINKAGE YOKE

LINK - bucket, outer, left-hand, at arm, was 151305A1, standard (cast ductile iron)

1шт.

30

164315A1

POWER ARM

LINK - bucket, outer, left-hand, at arm, heavy duty option (welded steel)

1шт.

31

164223A1

LINKAGE YOKE

LINK - bucket, outer, right-hand, at arm, was 151311A1, standard (cast ductile iron)

1шт.

31

164314A1

LINKAGE YOKE

LINK - bucket, outer, right-hand, at arm, heavy duty option (welded steel)

1шт.
