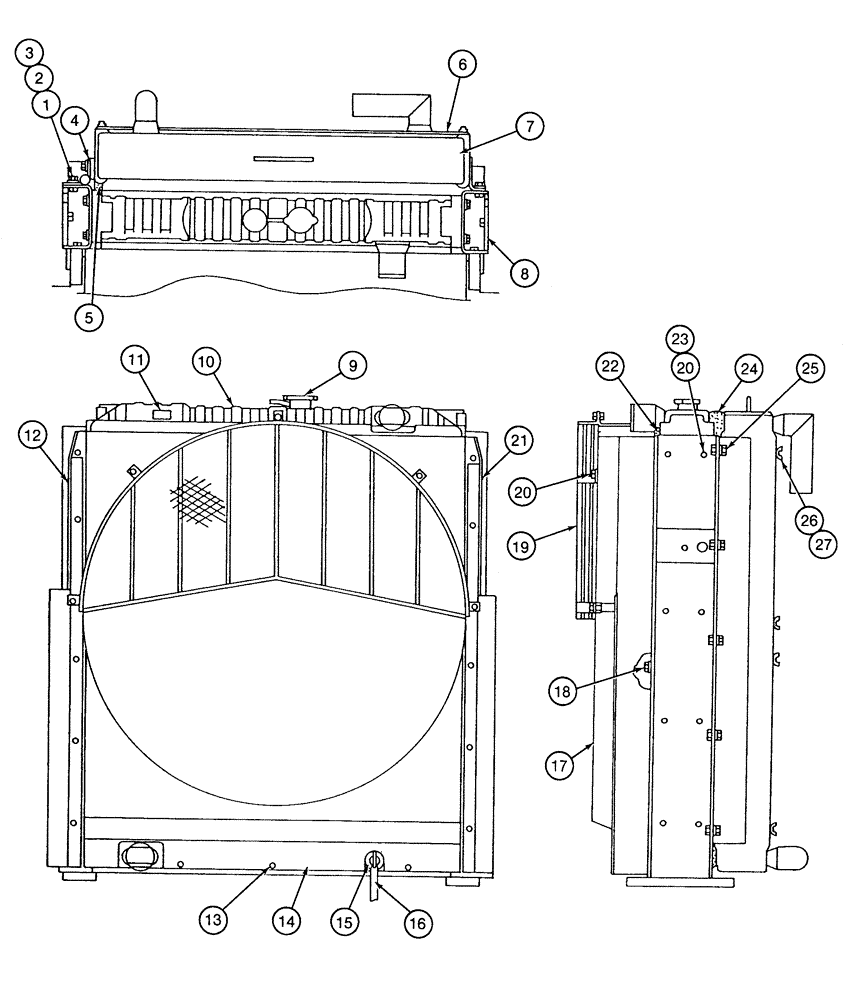

Запчасти Case 9060 (2-06) - RADIATOR (02) - ENGINE

150989A1

RADIATOR

- engine and oil cooling, Includes: Ref. 1 - 27

1шт.

1

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

2

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

6шт.

3

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

6шт.

4

156478A1

HINGE

- cooler mounting

3шт.

5

156427A1

PACKING

PAD - insulation

1шт.

6

156479A1

ELECTRICAL WIRE

SCREEN - wire

2шт.

7

156477A1

OIL COOLER

COOLER - oil

1шт.

8

156472A1

FRAME

- radiator

1шт.

9

156685A1

CAP

- radiator

1шт.

10

156471A1

RADIATOR

CORE - radiator

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - identification

1шт.

12

156475A1

BRACKET

- mounting, front

1шт.

13

156798A1

SPECIAL BOLT,Sems

BOLT - hex, with washer

3шт.

14

157237A1

PACKING

PAD - insulation

1шт.

15

156686A1

BREATHER ASSY.

ADAPTER - coolant drain hose

1шт.

16

156687A1

HOSE

- 11-13/16 inch (300 mm) long

1шт.

17

156473A1

SHROUD

- radiator

1шт.

18

156799A1

SPECIAL BOLT,Sems

BOLT - hex, with washer

10шт.

19

156474A1

GUARD

- fan

1шт.

20

156683A1

SPECIAL BOLT,Sems

BOLT - hex, with washer

21шт.

21

156476A1

BRACKET

- mounting, rear

1шт.

22

157238A1

PACKING

PAD - insulation

2шт.

23

156423A1

LINING

LINER - radiator

4шт.

24

157239A1

PACKING

PAD - insulation

2шт.

25

156688A1

CAPTIVE WASHER SCREW,Sems

BOLT - hex, includes captive washer

11шт.

26

156690A1

BOLT,Wing Hd, M6

BOLT - special, wing type head

8шт.

27

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12.5 x 1.6 mm

8шт.
