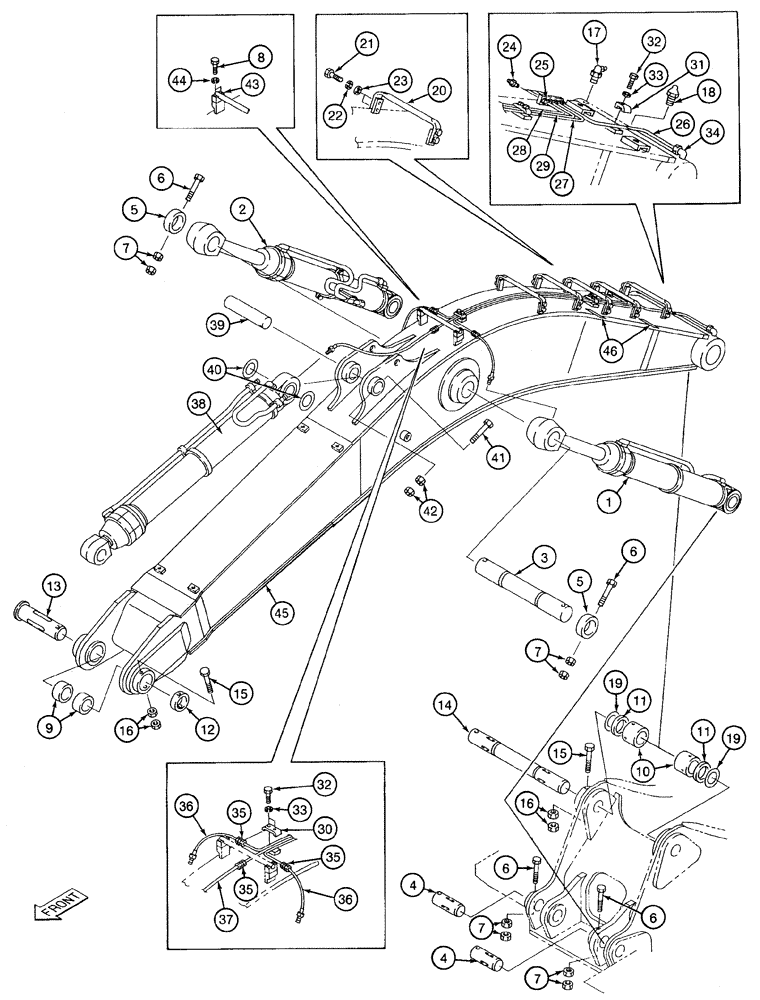

Запчасти Case 9060 (9-52) - BOOM, MOUNTING PINS AND RELATED PARTS (09) - CHASSIS/ATTACHMENTS

1

153813A1

CYLINDER ASSY.

CYLINDER - 6-5/16 (160) ID x 62-3/16 inch (1580 mm) stroke, left hand, parts list figure 8-088

1шт.

2

153814A1

CYLINDER ASSY.

CYLINDER - 6-5/16 (160) ID x 62-3/16 inch (1580 mm) stroke, right hand, parts list figure 8-088

1шт.

3

153812A1

PIN

- attaching, at boom

1шт.

4

153811A1

PIN ASSY.

PIN - attaching, boom cylinder mounting, at frame

2шт.

5

153808A1

RING, LOCKING

COLLAR - pin retaining

2шт.

6

514-1402

BOLT,Hex, M24 x 2 x 200mm, Cl 10.9

- hex, 24 - 2.0 x 200 mm, class 10.9

4шт.

7

825-13424

NUT,M24 x 2, Cl 8

- hex, 24 mm - 2.0

8шт.

8

626-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

9

151357A1

BUSHING

-, Serial Range: Boom-arm

2шт.

10

151347A1

BUSHING

-, Serial Range: boom-frame

2шт.

11

150331A1

SEAL

SEAL - dust, Serial Range: boom-frame

2шт.

12

151374A1

COLLAR CLAMP

COLLAR - pin retaining

1шт.

13

151423A1

PIN ASSY.

PIN - attaching, Serial Range: boom-arm

1шт.

14

170053A1

PIN

- attaching, Serial Range: boom-frame

1шт.

15

514-1501

BOLT,Hex, M30 x 2 x 260mm, Cl 10.9

- hex, 30 - 2.0 x 260 mm, class 10.9

2шт.

16

825-11330

NUT,M30 x 2, Cl 8

- hex, 30 mm - 2

4шт.

17

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree

1шт.

18

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

19

151447A1

BLOCK

SHIM - 0.05 inch, Serial Range: thick,-frame

2шт.

20

151458A1

STAY

GUARD - tube, top of boom

5шт.

21

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

20шт.

22

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

20шт.

23

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

20шт.

24

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

25

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special, lubrication line

4шт.

26

151641A1

TUBE

- lubrication, pin, Serial Range: boom-frame

1шт.

27

151643A1

TUBE

- lubrication, boom cylinder pin, left-hand

1шт.

28

151647A1

TUBE,2596.1, 269 mm Length

- lubrication, boom cylinder pin, right-hand

1шт.

29

151649A1

TUBE,2866.6, 291 mm Length

- lubrication, arm cylinder pin

1шт.

30

151497A1

CLAMP

- lubrication line, triple type

2шт.

31

151504A1

CLAMP

- lubrication line, single type

1шт.

32

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 30 mm, class 10.9

5шт.

33

892-10008

LOCK WASHER,M8

WASHER - lock, 8 mm

5шт.

34

152627A1

ELBOW

- 90 degree, special

1шт.

35

152032A1

UNION

CONNECTOR - straight

3шт.

36

150983A1

HOSE ASSY.

HOSE - 17-3/4 inch (450 mm) long, at boom cylinder

2шт.

37

152432A1

HOSE,6.3mm ID x 770mm L

Lubrication, At arm cylinder 770.00 mm

1шт.

38

151584A1

HYDRAULIC CYLINDER

CYLINDER - 7-1/8 (180) ID x 75-3/16 inch (1910 mm) stroke, parts list figure 8-90

1шт.

39

151435A1

PIN ASSY.

PIN - attaching, arm, Serial Range: cylinder-boom

1шт.

40

151443A1

SHIM,111mm ID x 190mm OD x 1.2mm Thk

- 0.04 inch thick, arm, Serial Range: cylinder-boom

2шт.

41

514-1402

BOLT,Hex, M24 x 2 x 200mm, Cl 10.9

- hex, 24 - 2.0 x 200 mm, class 10.9

1шт.

42

825-13424

NUT,M24 x 2, Cl 8

- hex, 24 mm - 2.0

2шт.

43

151883A1

GUIDE

GUARD - tube

1шт.

44

892-10016

LOCK WASHER,M16

WASHER - lock, 16 mm

4шт.

45

152016A1

BOOM

- excavator, Includes: Ref. 46

1шт.

46

150486A1

CLIP

- harness

4шт.
