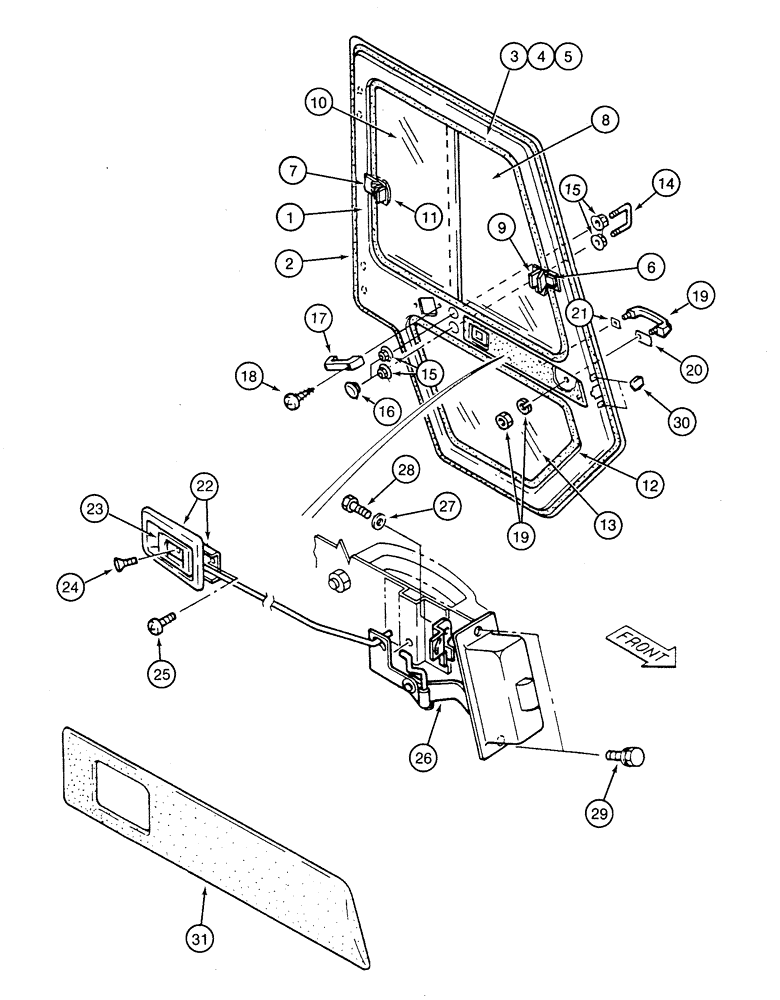

Запчасти Case 9060 (9-50) - CAB DOOR (09) - CHASSIS/ATTACHMENTS

KHN12010

DOOR ASSY.

ASSEMBLY cab, Includes: Ref. 1 - 31, Replaces 152734A1

1шт.

1

152733A1

DOOR ASSY.

cab

1шт.

2

152144A1

MOLDING

TRIM edge, door seal

1шт.

KHN1062

WINDOW

ASSEMBLY upper, Includes: Ref. 3 - 11, Replaces 152608A1

1шт.

3

KHN0827

WINDOW FRAME

window sliding

1шт.

4

152361A1

CHANNEL

TRACK sliding window trim, rubber window edge

1шт.

5

152365A1

RUBBER STRIP

1шт.

6

KHN0919

SELF-TAP SCREW

1шт.

7

KHN0919

SELF-TAP SCREW

1шт.

8

KHN1057

LOCK

WINDOW front

1шт.

9

152860A1

LOCK

LATCH right-hand, front sliding window

1шт.

10

KHN1291

CAB GLASS

WINDOW sliding, rear

1шт.

11

KHN1057

LOCK

LATCH left-hand, rear, sliding window

1шт.

12

152566A1

RUBBER STRIP

TRIM edge

1шт.

13

152560A1

CAB GLASS

WINDOW cab door, lower

1шт.

14

152329A1

PLATE

STRIKER door

1шт.

15

152545A1

SPECIAL NUT

special, door striker

4шт.

16

152691A1

COVER

striker threads

2шт.

17

151807A1

HANDLE

grab inside, cab door

1шт.

18

152458A1

SPECIAL BOLT

handle retaining

2шт.

19

152381A1

HANDLE

grab cab door, outside

1шт.

20

152402A1

PACKING

SPACER handle mounting, outside, front

1шт.

21

152405A1

PACKING

SPACER handle mounting, outside, rear

1шт.

22

152346A1

HANDLE

LEVER cab door, unlatching inside

1шт.

23

152695A1

PIN

PLATE cab door, inside lever

1шт.

24

152462A1

SCREW

special cab, door lever

1шт.

25

152482A1

SPECIAL BOLT,Spcl

2шт.

26

152342A1

LOCK

LATCH cab door

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

28

152326A1

SPECIAL BOLT

hex

2шт.

29

152053A1

BOLT

hex, special

4шт.

30

152692A1

COVER

seal

2шт.

31

152373A1

BOARD

PANEL access, cab door latch

1шт.
