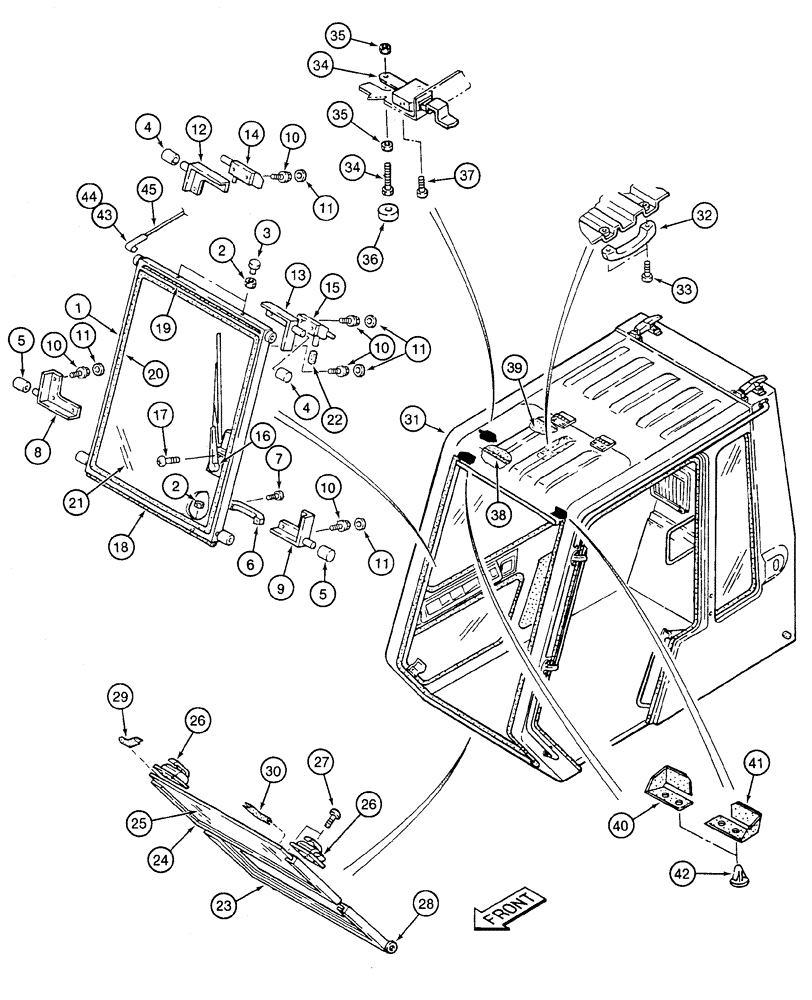

Запчасти Case 9060 (9-46) - CAB WINDSHIELD, LOWER FRONT WINDOW AND OVERHEAD DOOR (09) - CHASSIS/ATTACHMENTS

KHN1148

CAB

- operators, includes Ref. 1 - 42 on this figure and Ref. 1 - 8 on figure 9-044, Replaces 152792A1, KHN12000

1шт.

152646A1

WINDOW

WINDSHIELD - cab, Includes: Ref. 1 - 22

1шт.

1

152427A1

WINDOW FRAME

FRAME - windshield

1шт.

2

825-1405

NUT,M5, Cl 8

7шт.

3

152741A1

STOP

- rubber

2шт.

4

152392A1

ROLLER

- track, windshield top

2шт.

5

152390A1

ROLLER

- track, windshield bottom

2шт.

6

151807A1

HANDLE

- grab, inside, cab windshield

2шт.

7

152458A1

SPECIAL BOLT

SCREW - special, handle retaining

4шт.

8

152292A1

BRACKET

- mounting, lower right-hand

1шт.

9

152297A1

BRACKET

- mounting, lower left-hand

1шт.

10

158863A1

BOLT

BOLT - special, roller bracket mounting, was 152434A1

12шт.

11

152530A1

CAP

COVER - bolt

12шт.

12

152279A1

BRACKET

- mounting, upper right-hand

1шт.

13

152284A1

BRACKET

- mounting, upper left-hand

1шт.

14

152379A1

HANDLE

CATCH - windshield, upper right-hand

1шт.

15

152380A1

HANDLE

CATCH - windshield, upper left-hand

1шт.

16

152415A1

BRACKET

- mounting

1шт.

17

152482A1

SPECIAL BOLT,Spcl

SCREW - special

6шт.

18

KHN0767

SEAL, GLASS

GUARD frame, lower, Replaces 152716A1

1шт.

19

152817A1

GASKET

GUARD - trim, frame top

1шт.

20

152228A1

SEALING STRIP

SEAL -, Serial Range: glass-frame

1шт.

21

152930A1

GLASS

- windshield

1шт.

22

152376A1

CAP

GUARD - catch pin

2шт.

KHN1040

WINDOW FRAME

WINDOW - lower front, Includes: Ref. 23 - 30, Replaces 152703A1

1шт.

23

152523A1

WINDOW

FRAME - window, lower front window

1шт.

24

152527A1

SEALING STRIP

SEAL - rubber

1шт.

25

KHN1298

CAB GLASS

GLASS - lower front window, Replaces 152561A1

1шт.

26

152547A1

CATCH

LATCH - window

2шт.

27

152482A1

SPECIAL BOLT,Spcl

SCREW - special

8шт.

28

152666A1

SPACER

- window mounting

2шт.

29

152822A1

RUBBER

TRIM - rubber, right-hand

1шт.

30

152823A1

RUBBER

TRIM - rubber, left-hand

1шт.

152663A1

DOOR ASSY.

DOOR - cab, overhead hinged, Includes: Ref. 31 - 42

1шт.

KHN0891

SCREW,M6 x 10mm

Hinge Mounting Hardware, Not Shown

4шт.

31

152657A1

ROOF

DOOR - cab, overhead hinged

1шт.

32

151807A1

HANDLE

- grab, inside, overhead door

1шт.

33

152458A1

SPECIAL BOLT

SCREW - special, handle retaining

2шт.

34

152413A1

LOCK

LATCH - overhead door

2шт.

35

152472A1

SPECIAL NUT

- special

4шт.

36

152528A1

CAP

GUARD - latch bolt

2шт.

37

152540A1

SPECIAL BOLT

BOLT - special

4шт.

38

152727A1

NOISE PROTECTION

PAD - insulation, front

1шт.

39

152730A1

NOISE PROTECTION

PAD - insulation, rear

1шт.

40

152826A1

RUBBER BLOCK

GUARD - rubber, right-hand front

1шт.

41

152828A1

RUBBER BLOCK

GUARD - rubber, left-hand front

1шт.

42

152830A1

CLIP

- guard retaining

4шт.

43

152260A1

HOOK

GUIDE - track, windshield

2шт.

44

152697A1

RIVET

- track guide

4шт.

45

152814A1

SPRING

- guide, window storage

2шт.
