Запчасти Case 9060 (9-42) - CAB VANDAL GUARDS (09) - CHASSIS/ATTACHMENTS

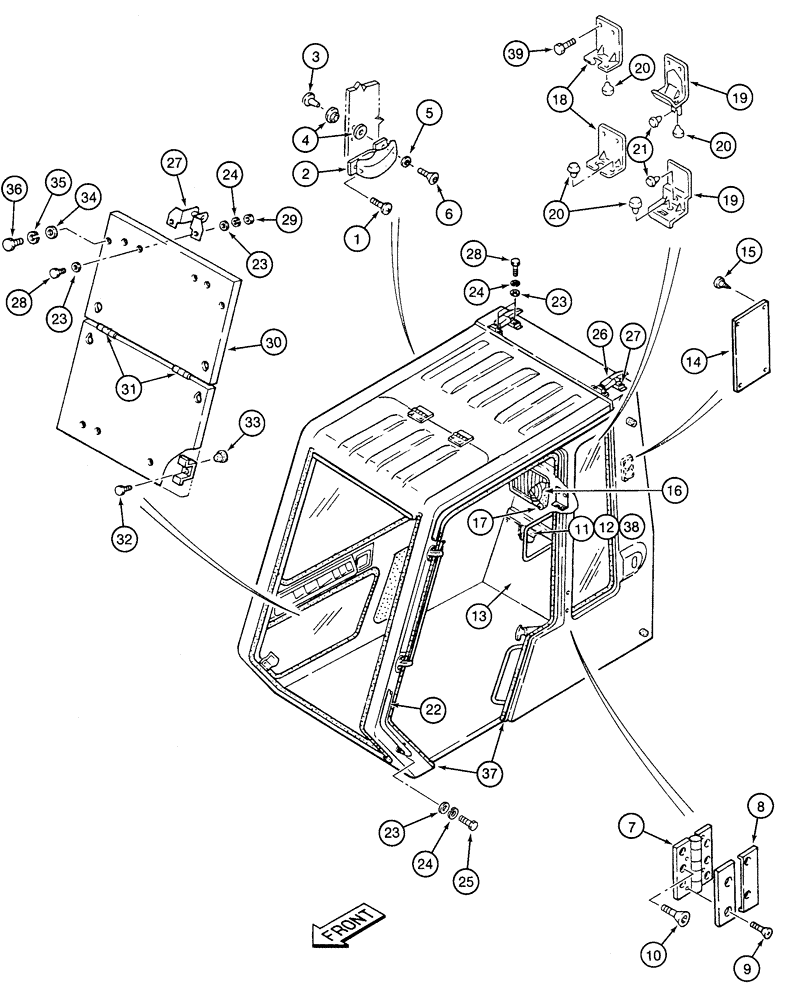

Схема запчастей Case 9060 - (9-42) - CAB VANDAL GUARDS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

152446A1

SPECIAL BOLT,Spcl

SCREW - special

2шт.

2

152495A1

HANDLE

- vandal guard storage

2шт.

3

KAN1370

NUT

RETAINER - special, Replaces 152629A1

4шт.

4

KHN0661

SEAL PROTECTION

WASHER - special, Replaces 152631A1

8шт.

5

152513A1

WASHER

WASHER - special

4шт.

6

156499A1

SCREW

- special

4шт.

7

152382A1

HINGE

- cab door

2шт.

8

152506A1

COVER

- hinge

4шт.

9

152546A1

SCREW

- special

8шт.

10

151290A1

HEX SOC SCREW,Flat Csk Hd, M8 x 20mm

BOLT - special

12шт.

11

152394A1

PACKING

PAD - lower rear cab

2шт.

12

152397A1

PACKING

PAD - lower rear cab

2шт.

13

152313A1

COVER

PANEL - lower rear cab

1шт.

14

152320A1

COVER

- side

2шт.

15

152450A1

SCREW

- special, cover mounting

8шт.

16

152316A1

COVER

- upper rear cab

1шт.

17

152538A1

SCREW

- special, cover mounting

6шт.

18

152671A1

SUPPORT

BRACKET - support

1шт.

19

152673A1

PLATE

BRACKET - catch

1шт.

20

152679A1

CLIP

BUMPER - rubber

4шт.

21

152676A1

STOP

BUMPER - rubber

2шт.

22

152573A1

RAIL

HANDLE - grab, cab frame

1шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

9-25шт.

24

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

9-21шт.

25

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

9шт.

26

150854A1

FASTENER

LATCH - top cover, If Used

2шт.

27

150856A1

STOP LOCK

CATCH - top cover, If Used

4шт.

28

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9, If Used

12шт.

29

829-1406

NUT,Hex, M6 x 1, Cl 10.9

If Used M6, Cl 10

4шт.

30

152569A1

COVER

GUARD - vandal, Includes: Ref. 31, If Used

1шт.

31

152590A1

HINGE

- vandal guard, If Used

2шт.

32

152580A1

STEP BOLT,Hex, M10 x 20mm, Spcl

BOLT - special, If Used

6шт.

33

152588A1

CUSHION ASSY.

BUMPER - rubber, If Used

6шт.

34

150861A1

WASHER

- flat, special, If Used

2шт.

35

892-11010

LOCK WASHER,M10

If Used M10

2шт.

36

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9, If Used

2шт.

37

152750A1

CAP

EDGE - trim

2шт.

38

152810A1

PACKING

PAD - lower rear panel

2шт.

39

152542A1

BOLT

BOLT - special

6шт.

Выбрано товаров: 39
