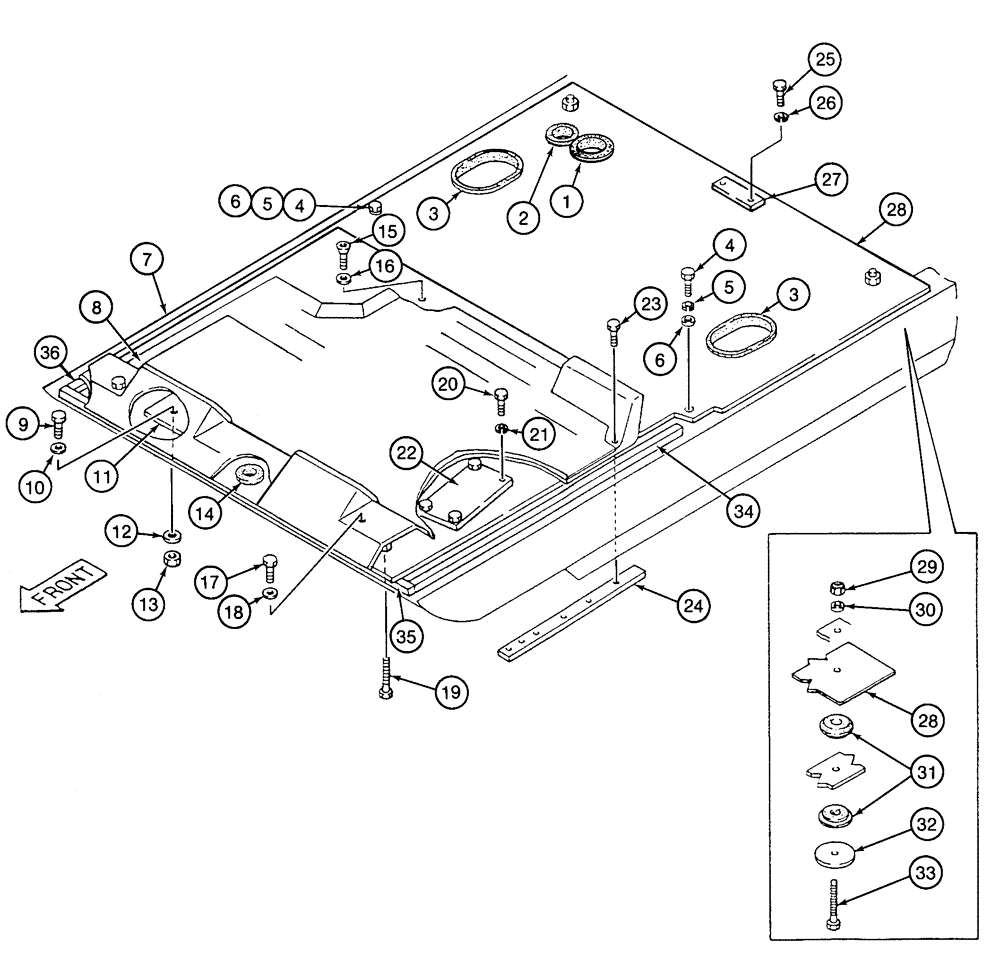

Запчасти Case 9060 (9-40) - CAB FLOOR AND MOUNTING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
152424A1
GROMMET
- rubber
1шт.
2
152643A1
GROMMET
- rubber
1шт.
3
152644A1
GROMMET
- rubber
2шт.
4
628-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd
2шт.
5
892-11010
LOCK WASHER,M10
2шт.
6
150344A1
WASHER
WASHER - flat, special, 11 ID x 25 OD x 3.2 mm thick
2шт.
7
151186A1
FLOOR MAT
MAT - floor, outer
1шт.
8
151425A1
FLOOR MAT
MAT - floor, inner
1шт.
9
151102A1
SPECIAL BOLT,Hex, M10 x 40mm, Full Thd
BOLT - hex, special
2шт.
10
150409A1
WASHER
- flat, special, 10.5 x 21 x 3.2 mm
2шт.
11
151168A1
BRACKET
- foot rest
1шт.
12
150811A1
WASHER
- flat, special, 12 mm
2шт.
13
829-1410
NUT,M10 x 1.5, Cl 10.9
2шт.
14
150413A1
GROMMET
- rubber
1шт.
15
151290A1
HEX SOC SCREW,Flat Csk Hd, M8 x 20mm
BOLT - special
2шт.
16
151590A1
WASHER
- special
2шт.
17
150548A1
BOLT,High Strength, Hex, M10 x 20mm
BOLT - hex, 10 - 1.5 x 20 mm, class 10.9
2шт.
18
150604A1
WASHER
- special
2шт.
19
152973A1
SPECIAL BOLT,High Strength, Hex, M16 x 100mm
BOLT - hex, special
1шт.
20
627-6012
BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd
- hex, full threads, 6 - 1.0 x 12 mm, class 10.9
4шт.
21
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
4шт.
22
150976A1
PLATE
- access
1шт.
23
627-6025
BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd
- hex, full threads, 6 - 1.0 x 25 mm, class 10.9
6шт.
24
151183A1
PLATE
- reinforcement
1шт.
26
892-11010
LOCK WASHER,M10
2шт.
27
156699A1
BRACKET
- floor plate
1шт.
28
153331A1
FLOOR
- cab
1шт.
29
150760A1
NUT
- hex, special
4шт.
30
150714A1
WASHER
- special
4шт.
31
152645A1
INSULATOR BLOCK
MOUNT - shock, rubber
8шт.
32
150330A1
WASHER
- flat, special
4шт.
33
150882A1
BOLT,High Strength, Hex, M16 x 90mm
BOLT - hex, special
3шт.
34
150631A1
CUSHION ASSY.
CUSHION - sponge, left side
1шт.
35
150632A1
CUSHION ASSY.
CUSHION - sponge, front
1шт.
36
150635A1
CUSHION ASSY.
CUSHION - sponge, right side
1шт.
Выбрано товаров: 36
