Запчасти Case 9060 (9-38) - CAB FAN AND MOUNTING (09) - CHASSIS/ATTACHMENTS

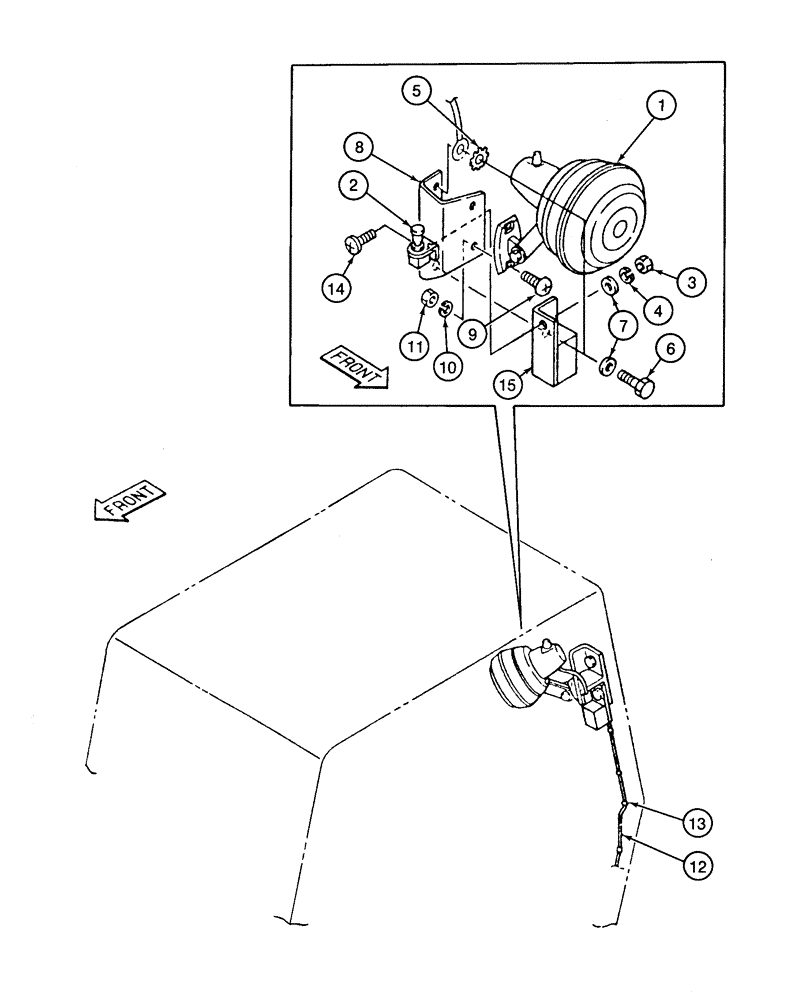

Схема запчастей Case 9060 - (9-38) - CAB FAN AND MOUNTING (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

157689A1

FAN

- cab, Includes: Ref. 1 - 4

1шт.

1

157694A1

FAN

- cab

1шт.

2

152843A1

IGNITION SWITCH

SWITCH - cab fan

1шт.

3

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

4

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

5

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

1шт.

6

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

7

153360A1

WASHER

- flat, special

3шт.

8

150564A1

BRACKET

- fan mounting

1шт.

9

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

10

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

11

825-1405

NUT,M5, Cl 8

2шт.

12

152854A1

HARNESS

- cab fan

1шт.

13

150563A1

CLIP

- wire

17шт.

14

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 16 mm

1шт.

15

159338A1

RESISTOR

FILTER - noise, if used

1шт.

Выбрано товаров: 16
