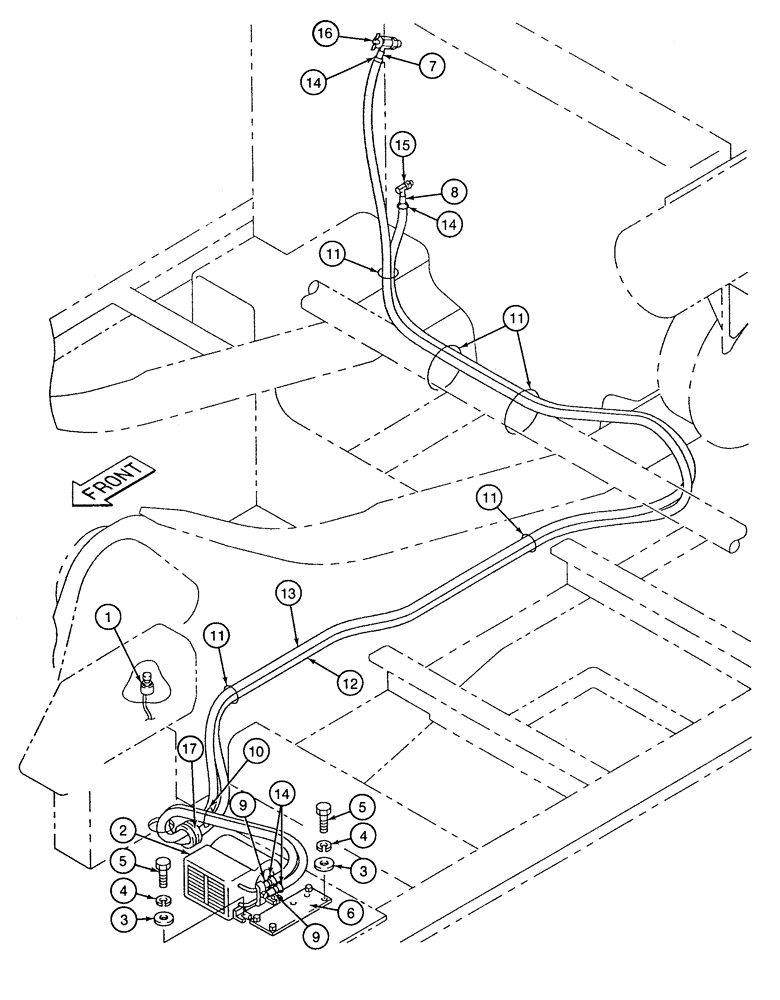

Запчасти Case 9060 (9-36) - HEATER AND HOSES (09) - CHASSIS/ATTACHMENTS

1

151848A1

SWITCH

- rotary, heater fan

1шт.

2

152815A1

HEATER,Assembly, Cab

HEATER - cab, Includes: Ref. 2A

1шт.

2a

163619A1

MOTOR, ELECTRIC

MOTOR - electric, cab heater blower, not shown

1шт.

For fan blower (squirrel cage) only order: 166058A1 (RH) and/or 166059A1 (LH).

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

8шт.

4

892-11010

LOCK WASHER,M10

8шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

8шт.

6

151656A1

PLATE

- access

1шт.

7

150666A1

HOSE,13.00 mm ID x 6000.00 mm

1шт.

8

150041A1

HOSE

- 216-9/16 inch (5500 mm), Serial Range: long,-radiator

1шт.

9

150384A1

COLLAR

CLAMP - adjustable

4шт.

10

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

11

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

12

151566A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 228-11/32 inch (5800 mm) long

1шт.

13

151561A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 208-21/32 inch (5300 mm) long

1шт.

14

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

4шт.

15

151061A1

NIPPLE, LUBE

ADAPTER - straight, heater, Serial Range: hose-radiator

1шт.

16

152725A1

VALVE

- shutoff, Serial Range: water-heater

1шт.

17

152529A1

GROMMET

- rubber

1шт.
