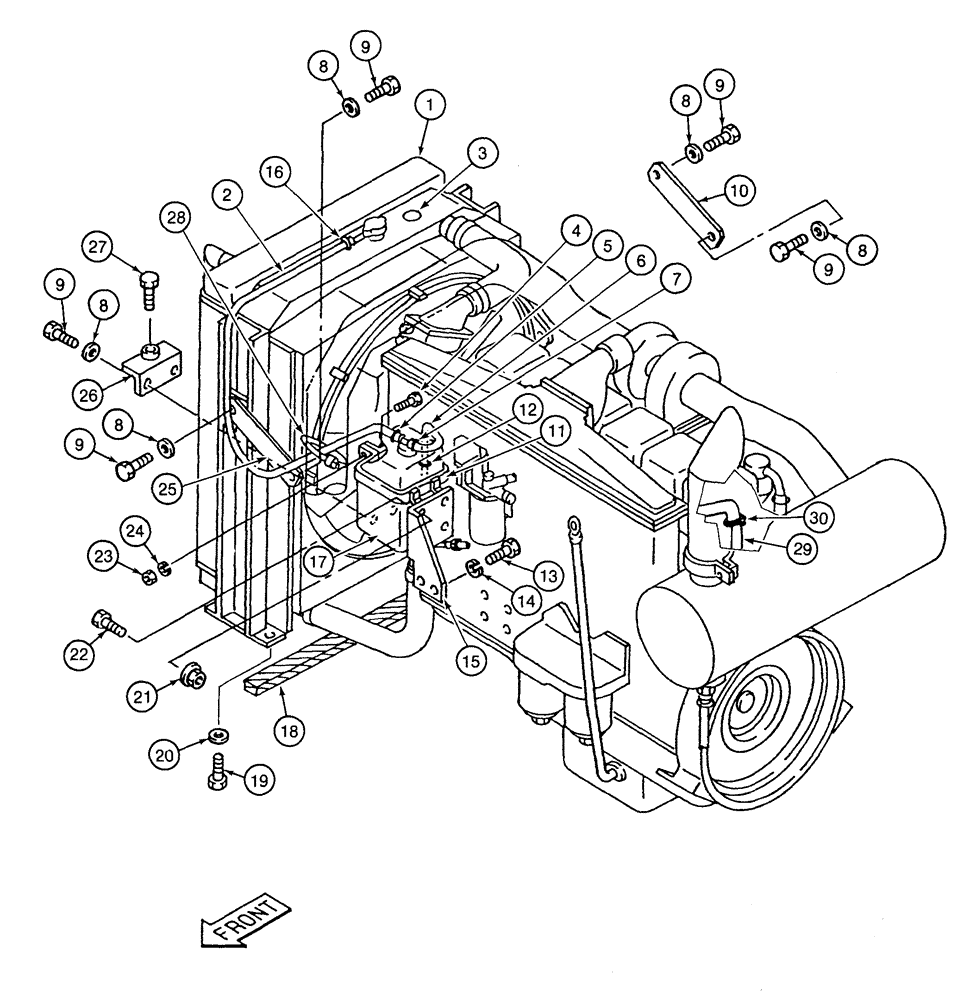

Запчасти Case 9060 (2-04) - RADIATOR, MOUNTING AND COOLANT OVERFLOW RESERVOIR (02) - ENGINE

1

150989A1

RADIATOR

ASSEMBLY - engine and oil cooling, and oil cooling, parts list figure 2-6

1шт.

2

150740A1

HOSE

- radiator

1шт.

3

151885A1

DECAL

LABEL - coolant

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

1шт.

5

170069A1

CLAMP

- overflow hose

1шт.

6

157486A1

HOSE

- overflow

1шт.

7

170069A1

CLAMP

- tube

1шт.

8

150811A1

WASHER

- flat, special, 12 mm

6шт.

9

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

6шт.

10

151062A1

STAY

BRACKET - support, radiator

1шт.

11

150607A1

HOLDER

RETAINER - coolant overflow reservoir, Includes: Ref. 12

1шт.

12

150486A1

CLIP

- harness

1шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

14

892-11010

LOCK WASHER,M10

2шт.

15

158175A1

BRACKET

- reservoir mounting

1шт.

16

170069A1

CLAMP

- overflow hose

1шт.

17

150606A1

RESERVOIR

- coolant overflow, Includes: Ref. 17A

1шт.

17a

150032A1

LIMIT SWITCH

SWITCH - limit, low coolant, not shown

1шт.

18

151008A1

SEAL

PAD - insulation, radiator

1шт.

19

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

4шт.

20

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

21

150472A1

FLANGE NUT

- hex flange, special, 8 mm - 1.25, reservoir mounting

4шт.

22

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

25

151062A1

STAY

BRACKET - support, radiator

1шт.

26

151941A1

BRACKET

- radiator mounting, bottom

1шт.

27

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

1шт.

28

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

29

158429A1

HOSE

- 25-5/8 inch (650 mm) long, engine block water drain

1шт.

30

158430A1

CLAMP

- special

1шт.
