Запчасти Case 9060 (9-24) - RIGHT-HAND CONTROL LINKAGE (09) - CHASSIS/ATTACHMENTS

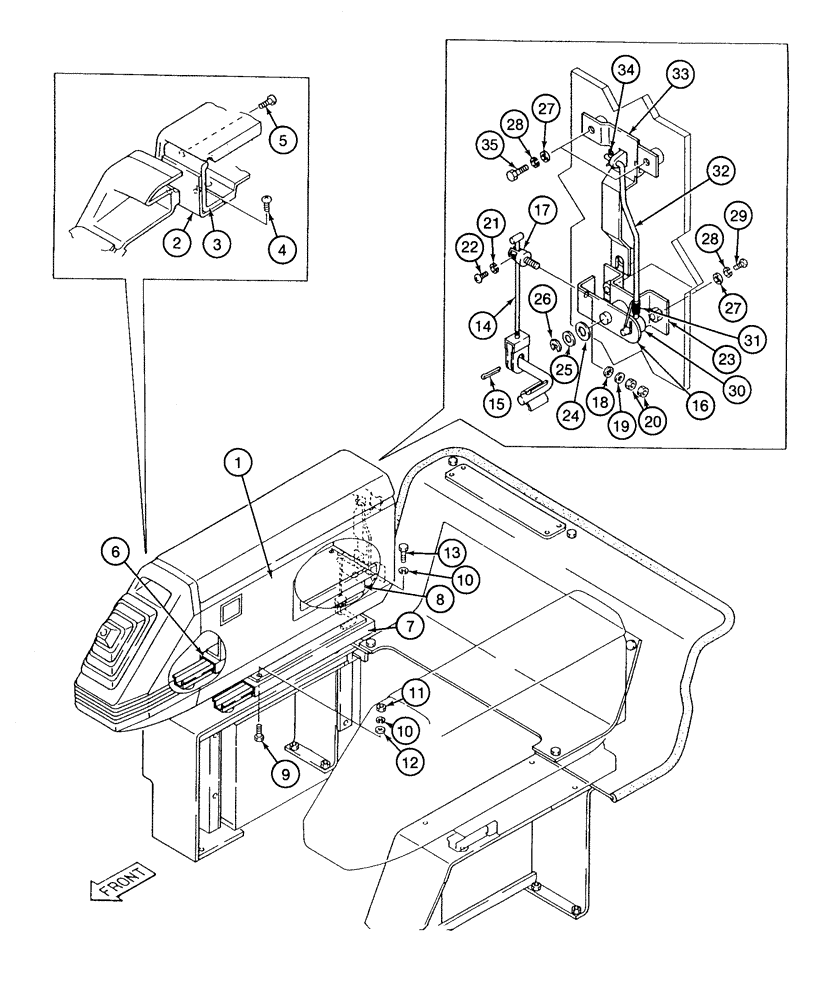

Схема запчастей Case 9060 - (9-24) - RIGHT-HAND CONTROL LINKAGE (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

152122A1

BOX

CONSOLE - control, right-hand, Includes: Ref. 1 - 35

1шт.

1

151788A1

BOX

CONSOLE - control, right-hand

1шт.

2

151779A1

BRACKET

- end cover mounting

1шт.

3

151775A1

COVER

- top end, right-hand console

1шт.

4

151159A1

SCREW,Truss Hd, M4 x 12mm

- special

2шт.

5

152025A1

SCREW,Phil Truss Hd, M3 x 5mm

- truss head, special

2шт.

6

152670A1

RAIL

- slide, right-hand outer

1шт.

7

152669A1

RAIL

- slide, right-hand inner

1шт.

8

152406A1

BRACKET

- mounting

1шт.

9

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

12

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

13

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

14

151972A1

CABLE

- latch

1шт.

Ref# 14: 151972A1 IS JUST THE CABLE. THE PART SHOWING AT THE BOTTOM IS ACTUALLY THE ADJUSTING LEVER THAT IS PART OF 152669A1 SLIDE RAIL ASY. NEED TO ORDER THE SLIDE RAIL TO GET THE LEVER. 1/9/97 bw

1шт.

15

153077A1

COTTER PIN

CLIP - hair pin type

1шт.

16

151948A1

LINK

- console latch

1шт.

17

151964A1

SPECIAL PIN

PIN - special

1шт.

18

151372A1

WAVE WASHER

- special

1шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

20

825-1405

NUT,M5, Cl 8

2шт.

21

892-11003

LOCK WASHER,M3

WASHER - lock, 3 mm

1шт.

22

840-1316

SCREW,Pan, M3 x 16mm, Cl 4.8

- machine, pan Phillips, 3 - 0.5 x 16 mm

1шт.

23

151956A1

BRACKET

- link mounting

1шт.

24

151389A1

WAVE WASHER

- special

1шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

26

800-1110

SNAP RING,M10, Ext

RING - external retaining, No. 10

1шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

28

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

5шт.

29

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 12 mm

2шт.

30

151358A1

SPECIAL PIN

PIN - spring tension

1шт.

31

151364A1

SPRING

- latch rod

1шт.

32

152126A1

ROD

- threaded

1шт.

33

151348A1

HANDLE

LATCH - handle, top cover

1шт.

34

733-2012

COTTER PIN,M2 x 12

PIN, SPLIT (COTTER), M2 x 12

1шт.

35

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

3шт.

Выбрано товаров: 37
