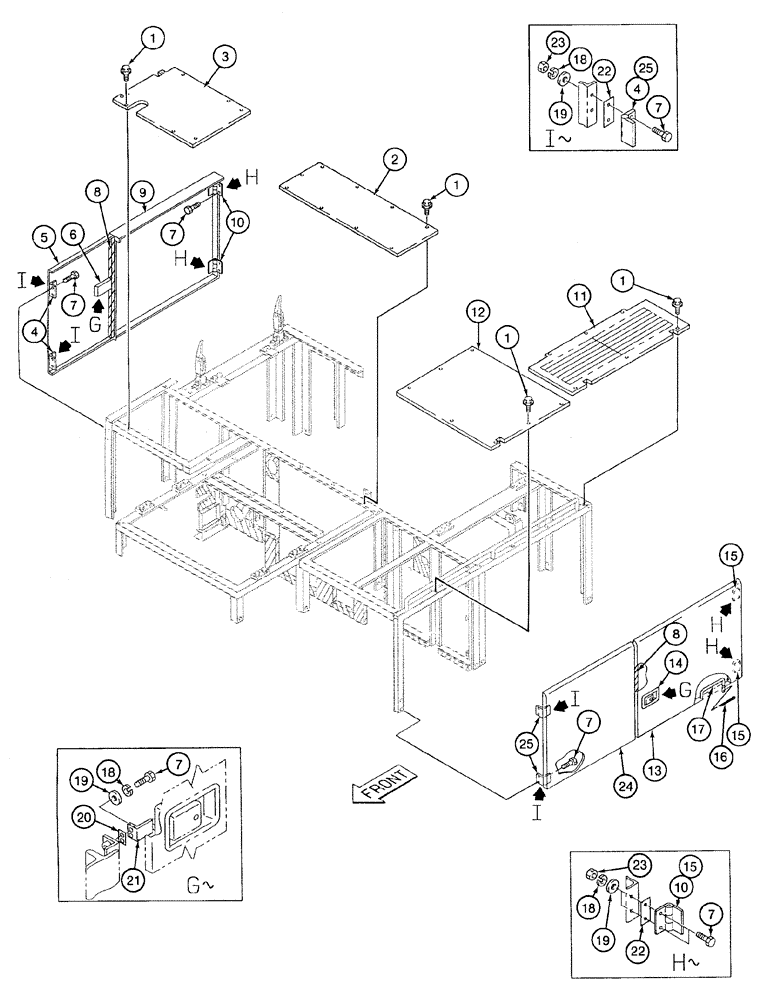

Запчасти Case 9060 (9-18) - UPPER STRUCTURE, TOP AND SIDE COVERS (09) - CHASSIS/ATTACHMENTS

1

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access cover retaining

30шт.

2

170033A1

COVER

- access, top, center

1шт.

3

170031A1

COVER

- access, top, right-hand

1шт.

151666A1

DOOR

- side, right-hand front, Includes: Ref. 4 - 6

1шт.

4

151104A1

HINGE

- door

2шт.

5

NSS

NOT SOLD SEPARAT

DOOR - side, right-hand front

1шт.

6

150938A1

LOCK

LATCH - recessed

1шт.

7

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

16шт.

8

150964A1

CUSHION ASSY.

PAD - insulation

2шт.

170040A1

DOOR ASSY.

DOOR - side, right-hand rear, Includes: Ref. 9 & 10

1шт.

9

NSS

NOT SOLD SEPARAT

DOOR - side, right-hand rear

1шт.

10

151104A1

HINGE

- door

1шт.

11

170034A1

COVER

- access, top, left-hand rear

1шт.

12

170102A1

COVER

- access, top, left-hand front

1шт.

170041A1

DOOR ASSY.

DOOR - side, left-hand rear, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

DOOR - side, left-hand rear

1шт.

14

150938A1

LOCK

LATCH - recessed

1шт.

15

151104A1

HINGE

- door

2шт.

16

130003

COTTER PIN,3mm OD x 30mm OAL

Replaces 156467A1

4шт.

17

151791A1

STAY

ROD - retaining, cover

4шт.

18

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

20шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

20шт.

20

151685A1

BLOCK

SHIM - plate

1шт.

21

151683A1

BRACKET

- angle, 90 degree, sheet metal mounting

2шт.

22

152186A1

BLOCK

SHIM - 2.5 mm thick

1шт.

23

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

16шт.

151674A1

DOOR

- side, left-hand front, Includes: Ref. 24 & 25

1шт.

24

NSS

NOT SOLD SEPARAT

DOOR - side, left-hand front

1шт.

25

151104A1

HINGE

- door

2шт.
