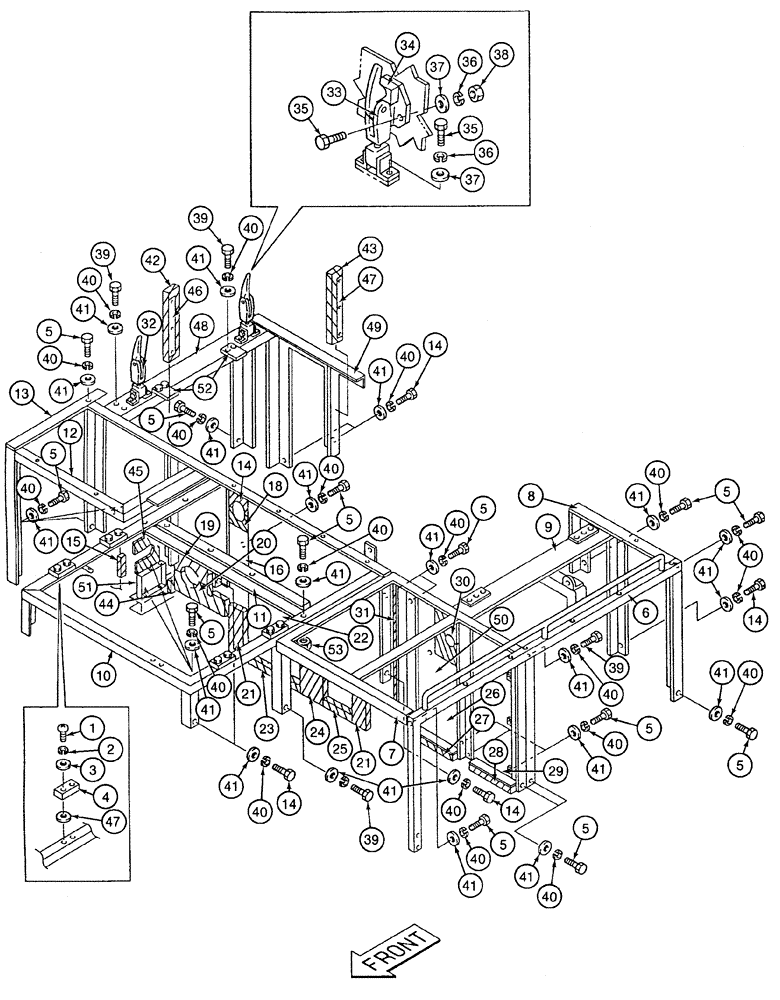

Запчасти Case 9060 (9-14) - UPPER STRUCTURE, FRAME AND RELATED PARTS (09) - CHASSIS/ATTACHMENTS

1

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

8шт.

2

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

8шт.

3

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

8шт.

4

150617A1

PLATE

- cover stop

4шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

1шт.

6

170023A1

FRAME

SECTION - frame, left-hand upper

1шт.

7

170024A1

FRAME

SECTION - frame, left-hand front upper

1шт.

8

170022A1

FRAME

SECTION - frame, left-hand rear upper

1шт.

9

170025A1

FRAME

SECTION - frame, left rear upper, inner

1шт.

10

170026A1

FRAME

SECTION - frame, front center upper

1шт.

11

151640A1

FRAME ASSY

SECTION - frame, middle, upper

1шт.

12

170028A1

FRAME

SECTION - frame, front, right-hand upper

1шт.

13

170027A1

FRAME

SECTION - frame, right-hand side, upper front

1шт.

14

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

9шт.

15

152318A1

SEAL

- weather

1шт.

16

170036A1

PANEL

- frame cover, front of engine compartment

1шт.

17

152330A1

SEAL

- weather

1шт.

18

152327A1

SEAL

- weather

1шт.

19

152334A1

SEAL

- weather

1шт.

20

152339A1

SEAL

- weather

1шт.

21

152344A1

SEAL

- weather

2шт.

22

170037A1

PANEL

- frame cover, center

1шт.

23

152348A1

SEAL

- weather

1шт.

24

152353A1

SEAL

- weather

1шт.

25

152355A1

SEAL

- weather

1шт.

26

170039A1

PANEL

- frame cover, center

1шт.

27

151528A1

SEAL

- weather

1шт.

28

151522A1

SEAL

- weather

1шт.

29

151661A1

COVER

PANEL - frame cover, left-hand side, center

1шт.

30

152358A1

SEAL

- weather

1шт.

31

151707A1

SEAL

- weather

1шт.

32

151361A1

HANDLE

LATCH - hood, front, without lock

1шт.

33

151356A1

LOCK ASSY

LATCH - hood, rear, with lock

1шт.

34

150785A1

STOP LOCK

LATCH - door assembly

2шт.

36

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

37

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

38

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

39

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

20шт.

40

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

41

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

42

152311A1

SEAL

PAD - cushion

1шт.

43

152314A1

SEAL

PAD - cushion

1шт.

44

152324A1

SEAL

PAD - cushion

1шт.

45

152321A1

SEAL

PAD - cushion

1шт.

46

170046A1

SUPPORT

- frame

1шт.

47

170047A1

SUPPORT

- frame, rear

1шт.

48

170029A1

FRAME

SECTION - frame, right-hand side

1шт.

49

170030A1

FRAME

SECTION - frame, right-hand rear

1шт.

50

170038A1

PANEL

- frame cover

1шт.

51

170035A1

PANEL

- frame cover

1шт.

52

170043A1

SUPPORT

- frame

2шт.

53

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

8шт.

35

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

8шт.
