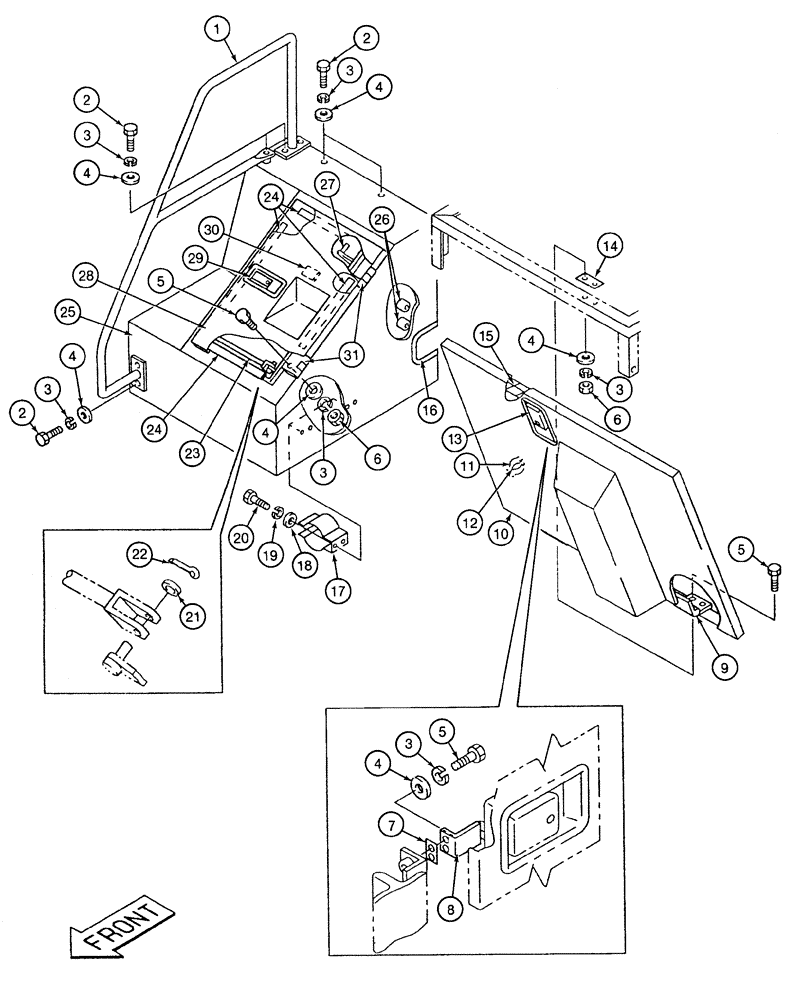

Запчасти Case 9060 (9-12) - UPPER STRUCTURE, TOP AND FRONT COVERS (09) - CHASSIS/ATTACHMENTS

1

151350A1

STAY

HANDRAIL - upper structure

1шт.

2

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

6шт.

3

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

18шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

18шт.

5

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

8шт.

6

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

8шт.

7

151685A1

BLOCK

SHIM - plate

1шт.

8

151683A1

BRACKET

- angle, 90 degree, sheet metal mounting

2шт.

170032A1

DOOR ASSY.

DOOR - top, Includes: Ref. 9 - 14

1шт.

9

151104A1

HINGE

- door, front cover

2шт.

10

NSS

NOT SOLD SEPARAT

DOOR - top front

1шт.

11

150102A1

CLIP

- support rod storage

1шт.

12

116495A1

RIVET

- clip retaining

2шт.

13

150938A1

LOCK

LATCH - recessed, left-hand

1шт.

14

152186A1

BLOCK

SHIM - 2.5 mm thick

1шт.

15

151539A1

CUSHION ASSY.

PAD - insulation

1шт.

16

151366A1

CUSHION ASSY.

GROMMET - rubber

1шт.

17

152772A1

HOLDER

- grease gun

2шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

19

892-11010

LOCK WASHER,M10

4шт.

20

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

22

732-1612

COTTER PIN,M1.6 x 12

PIN - cotter, 1.6 x 12 mm

2шт.

23

152694A1

CYLINDER

- storage box cover

1шт.

24

150940A1

PLATE

BUMPER - rubber, door

4шт.

151780A1

BOX

COMPARTMENT - front, right-hand storage, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

COMPARTMENT - front, right-hand storage

1шт.

26

150508A1

BOSS

BLOCK - retaining, tube clamp (weld-on)

2шт.

27

116496A1

HEADED PIN

PIN - headed, special

1шт.

151326A1

BOX

DOOR - compartment access, right-hand side, Includes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

DOOR - compartment access, right-hand side

1шт.

29

150938A1

LOCK

LATCH - recessed

1шт.

30

116496A1

HEADED PIN

PIN - headed, special

1шт.

31

151104A1

HINGE

- door

2шт.
