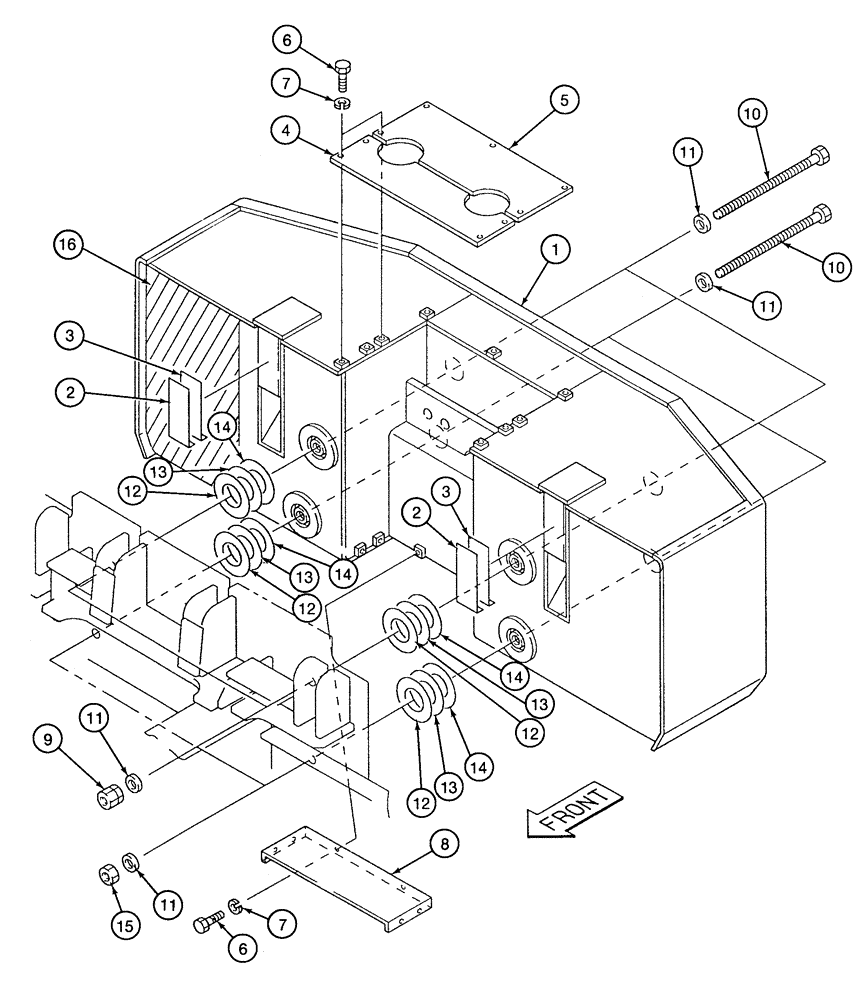

Запчасти Case 9060 (9-10) - COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

151694A1

WEIGHT

COUNTERWEIGHT - rear, 17,860 pounds (8100 kg)

1шт.

2

151191A1

SHIM

PLATE - shim, 0.08 inch (2 mm)

1шт.

3

151195A1

SHIM

PLATE - shim, 0.128 inch (3.2 mm)

1шт.

4

151725A1

COVER

- top, front

1шт.

5

151726A1

COVER

- top, rear

1шт.

6

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 16 mm, class 10.9

15шт.

7

892-11010

LOCK WASHER,M10

15шт.

8

151145A1

COVER

- counterweight bottom

1шт.

9

151268A1

NUT

- lock, 42 mm - 4.5, special

2шт.

10

KUB10300

BOLT

- hex, special; Replaces 151156A1

4шт.

11

150400A1

WASHER

- flat, special

8шт.

12

151020A1

ADJUSTING PLATE

PLATE - shim, 0.08 inch (2 mm)

1шт.

13

151023A1

ADJUSTING PLATE

PLATE - shim, 0.128 inch (3.2 mm)

1шт.

14

151028A1

ADJUSTING PLATE

PLATE - shim, 0.18 inch (4.5 mm)

1шт.

15

825-1042

NUT,M42, Cl 8

- hex, 42 - 4.5 mm, Cl 8

2шт.

16

151599A1

INSULATOR

PAD - counterweight mounting

1шт.
