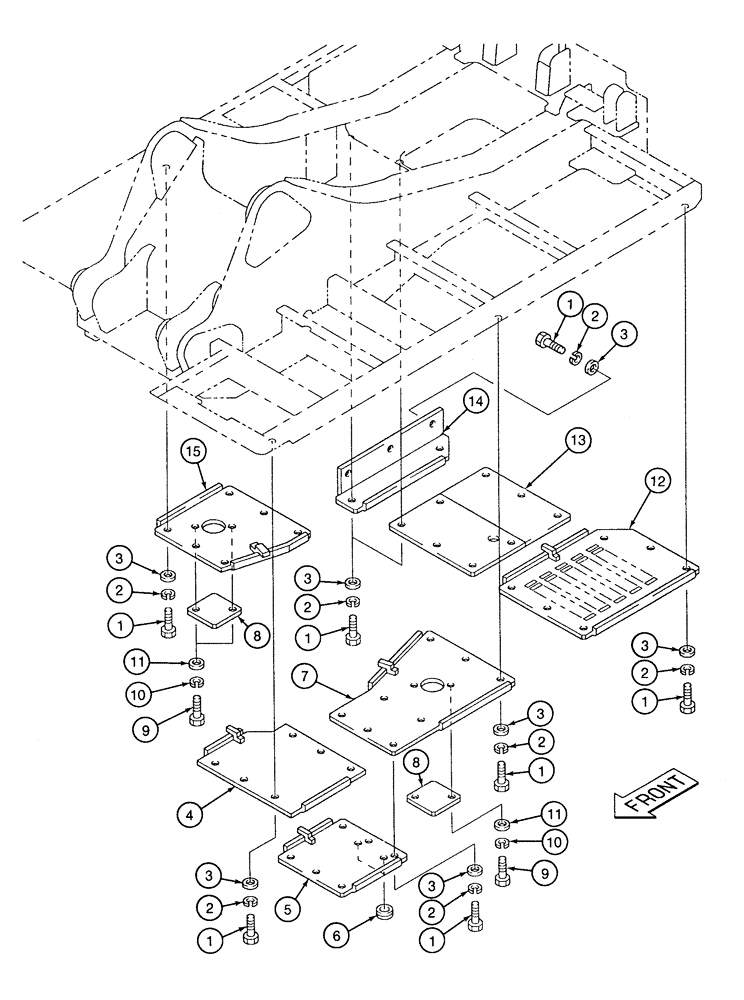

Запчасти Case 9060 (9-08) - TURNTABLE GUARDS (09) - CHASSIS/ATTACHMENTS

1

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

39шт.

2

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

39шт.

3

170061A1

WASHER

- flat, special

39шт.

4

151323A1

COVER

GUARD - turntable, front and center

1шт.

5

170004A1

GUARD

- turntable, left-hand front

1шт.

6

151042A1

GROMMET

- rubber

2шт.

7

151242A1

COVER

GUARD - turntable, left-hand side

1шт.

8

150761A1

COWL

COVER - access, turntable

2шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

10

892-11010

LOCK WASHER,M10

4шт.

11

151977A1

WASHER

- flat, 10 mm, special

4шт.

12

170009A1

GUARD

- turntable, left-hand rear

1шт.

13

170005A1

GUARD

- turntable, rear and center

1шт.

14

151720A1

COVER

GUARD - turntable, right-hand rear

1шт.

15

151178A1

COVER

GUARD - turntable, right-hand front

1шт.
