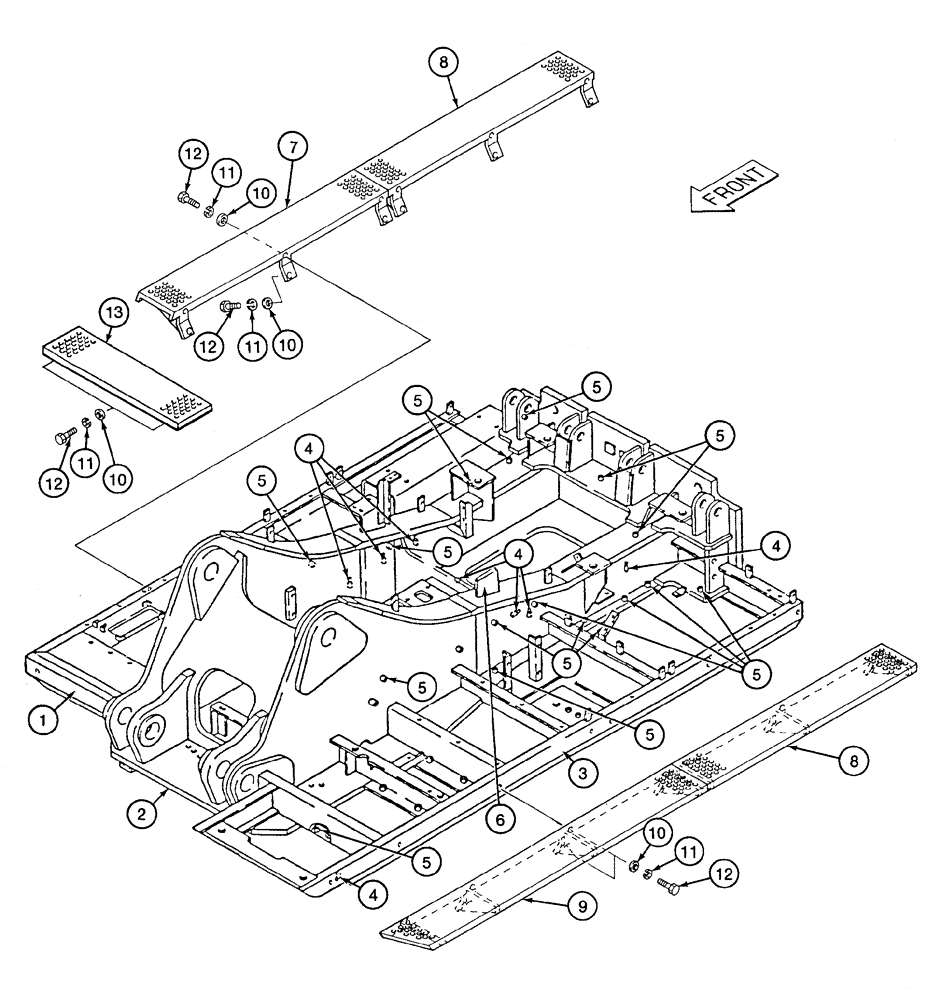

Запчасти Case 9060 (9-07A) - TURNTABLE AND WALKWAYS, P.I.N. EAC0600003 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

170054A1

PLATFORM

- turntable, right-hand

1шт.

2

REF

INSTRUCTION

FRAME - boom mounting

1шт.

3

170056A1

PLATFORM

- turntable, left-hand

1шт.

4

150486A1

CLIP

- harness

7шт.

5

150508A1

BOSS

BLOCK - retaining, tube clamp (weld-on)

14шт.

6

REF

INSTRUCTION

PLATE - support

1шт.

7

170007A1

WALKWAY

- turntable, right-hand center

1шт.

8

170010A1

WALKWAY

- turntable, right-hand and left-hand rear

2шт.

9

151344A1

WALKWAY

- turntable, left-hand front

1шт.

10

150900A1

WASHER

- flat, 12 mm, special

30шт.

11

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

30шт.

12

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

30шт.

13

170006A1

WALKWAY

- turntable, right-hand front

1шт.
