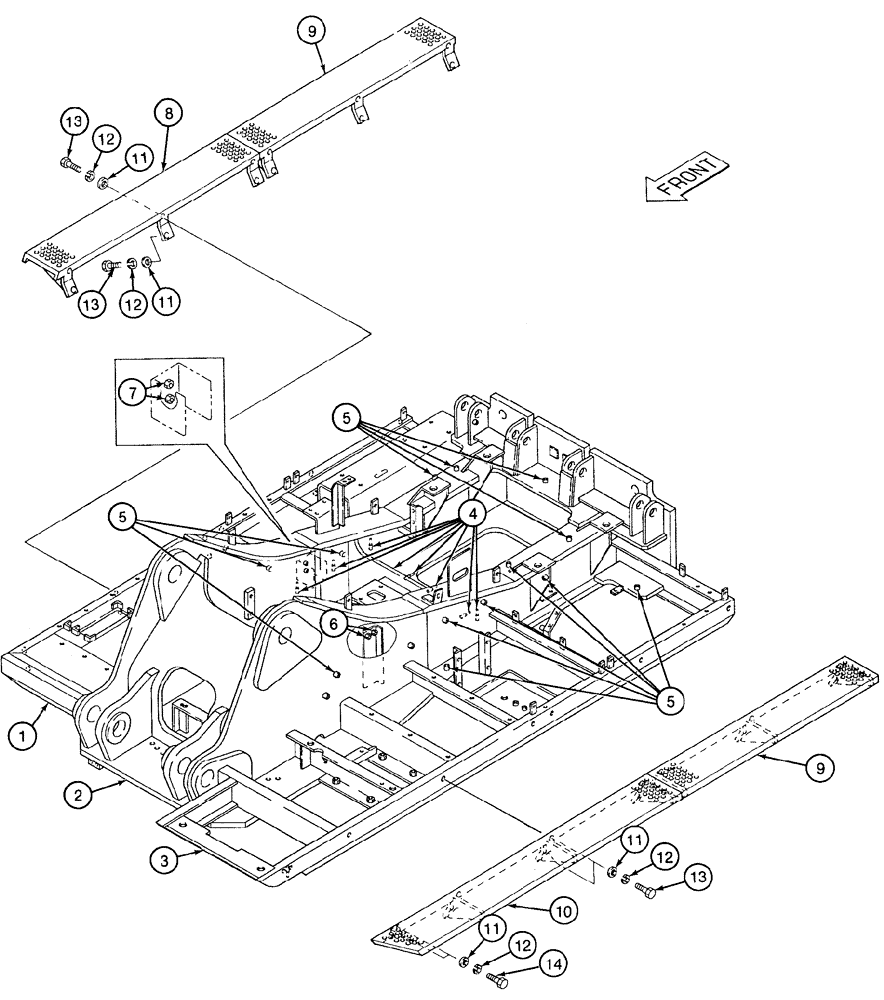

Запчасти Case 9060 (9-06) - TURNTABLE AND WALKWAYS, P.I.N. EAC0600001 AND EAC0600002 (09) - CHASSIS/ATTACHMENTS

1

151712A1

PLATFORM

- turntable, right-hand

1шт.

2

151702A1

FRAME

- boom mounting

1шт.

3

151706A1

PLATFORM

- turntable, left-hand

1шт.

4

150486A1

CLIP

- harness

7шт.

5

150508A1

BOSS

BLOCK - retaining, tube clamp (weld-on)

16шт.

6

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

2шт.

7

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10

2шт.

8

151098A1

WALKWAY

- turntable, right-hand front

1шт.

9

151096A1

WALKWAY

- turntable, right-hand and left-hand rear

2шт.

10

151344A1

WALKWAY

- turntable, left-hand front

1шт.

11

150900A1

WASHER

- flat, 12 mm, special

26шт.

12

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

26шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

24шт.

14

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

2шт.
