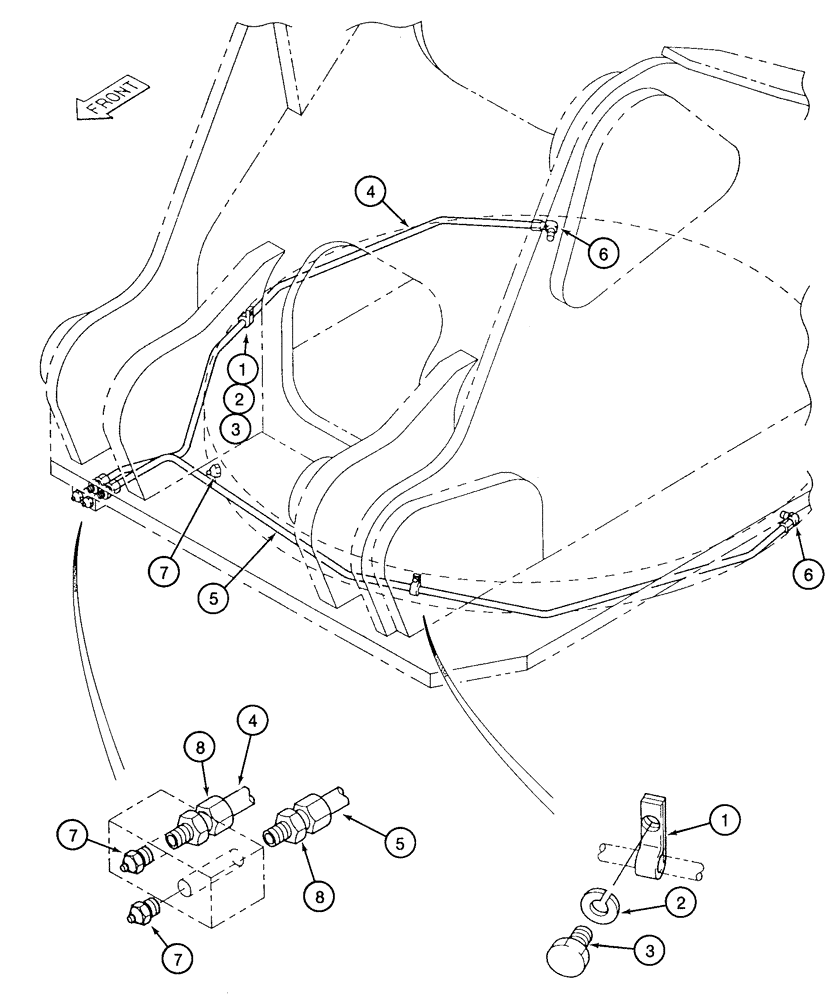

Запчасти Case 9060 (9-04) - TURNTABLE BEARING LUBRICATION LINES (09) - CHASSIS/ATTACHMENTS

1

150566A1

CLAMP

- P-type

2шт.

2

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

3

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

4

151257A1

TUBE

- lubrication, turntable, right-hand side

1шт.

5

151254A1

TUBE

- lubrication, turntable, left-hand side

1шт.

6

152627A1

ELBOW

- 90 degree, special

2шт.

7

153630A1

LUBE NIPPLE

FITTING - grease, straight

3шт.

8

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special, lubrication line

2шт.
