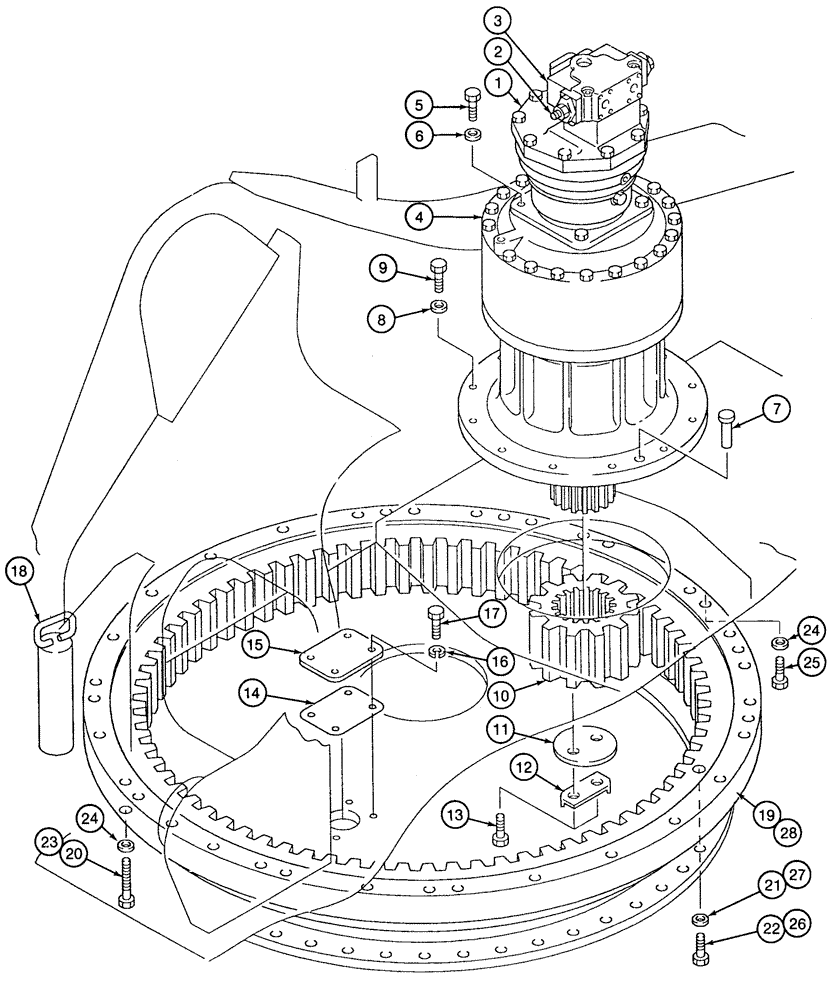

Запчасти Case 9060 (9-02) - TURNTABLE BEARING AND SWING MOTOR MOUNTING (09) - CHASSIS/ATTACHMENTS

150444A1

MOTOR

- swing, with reduction gear, Includes: Ref. 1 - 6

1шт.

150448A1

ASSEMBLY

MOTOR - swing, with check and brake valves, without reduction gear, Includes: Ref. 1 - 3

1шт.

1

157232A1

MOTOR

- swing, parts list figure 8-064

1шт.

2

155847A1

VALVE, CHECK

VALVE - check, parts list figure 8-068

1шт.

3

155843A1

VALVE, CONTROL

VALVE - brake, parts list figure 8-070

1шт.

4

150407A1

REDUCER

GEAR - reduction, swing motor, parts list figure 8-066

1шт.

5

626-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

6

150991A1

WASHER

- flat, special, 16 mm

4шт.

7

150317A1

HEADED PIN,24mm OD x 90mm L

PIN - headed

1шт.

8

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

12шт.

9

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9

12шт.

10

150301A1

PINION

GEAR - pinion

1шт.

11

116493A1

COVER

PLATE - end

1шт.

12

116494A1

RETAINER

- plate

1шт.

13

626-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 50 mm, class 10.9

2шт.

14

151070A1

GASKET

- access cover

1шт.

15

151068A1

LID

COVER - access

1шт.

16

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

17

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

4шт.

18

150303A1

PIN

- swing lock

1шт.

19

151216A1

SLEWING RING

BEARING - turntable EAC0600001, Serial Range: -EAC0600001

1шт.

19

151216A1

SLEWING RING

BEARING - turntable, Serial Range: EAC0600002-EAC0600002

1шт.

20

827-24130

BOLT,Hex, M24 x 3 x 130mm, Cl 10.9

- hex, 24 - 3.0 x 130 mm, class 10.9 EAC0600001, Serial Range: -EAC0600001

36шт.

20

827-24130

BOLT,Hex, M24 x 3 x 130mm, Cl 10.9

- hex, 24 - 3.0 x 130 mm, class 10.9, Serial Range: EAC0600002-EAC0600002

36шт.

21

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special EAC0600001, Serial Range: -EAC0600001

36шт.

21

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special, Serial Range: EAC0600002-EAC0600002

36шт.

22

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9 EAC0600001, Serial Range: -EAC0600001

36шт.

22

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9, Serial Range: EAC0600002-EAC0600002

36шт.

23

828-24140

BOLT,Hex, M24 x 3 x 140mm, Cl 10.9

- hex, 24 - 3.0 x 140 mm, class 10.9, Start Serial: EAC0600003

30шт.

24

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special, Start Serial: EAC0600003

42шт.

25

170063A1

BOLT

- hex, special, Start Serial: EAC0600003

12шт.

26

828-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9, Start Serial: EAC0600003

46шт.

27

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special, Start Serial: EAC0600003

46шт.

28

170008A1

BEARING

- turntable, Start Serial: EAC0600003

1шт.
