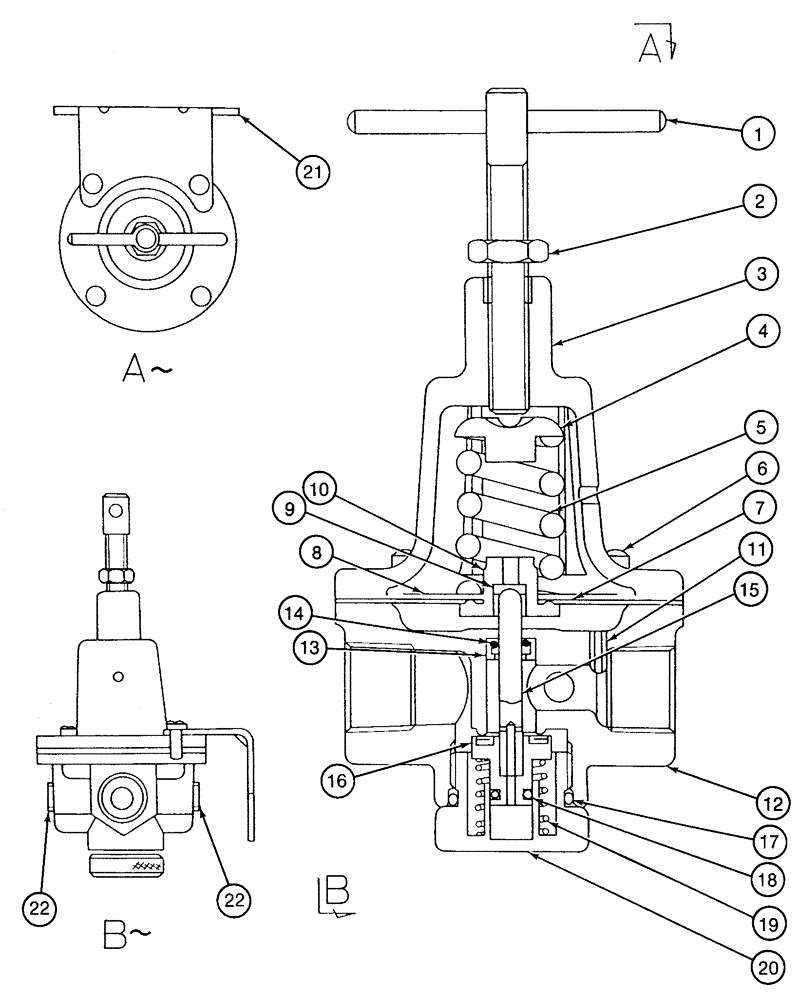

Запчасти Case 9060 (8-098) - 152845A1 REDUCING VALVE (08) - HYDRAULICS

152845A1

VALVE

- pressure reducing, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

SCREW - adjusting, T-type

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - jam, adjusting screw

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - top

1шт.

4

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - cover retaining

4шт.

155845A1

DIAPHRAGM

- reducing valve, Includes: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM - reducing valve

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER -, Serial Range: spring-plate

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - diaphragm

1шт.

10

NSS

NOT SOLD SEPARAT

POPPET - diaphragm

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - siphon

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

13

NSS

NOT SOLD SEPARAT

GUIDE - plunger

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: plunger-guide

1шт.

155846A1

PLUNGER

- valve, Includes: Ref. 15 & 16

1шт.

15

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT - plunger

1шт.

17

155228A1

O-RING

- spring guide

1шт.

18

155229A1

O-RING

- plunger seat

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - plunger return

1шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - plunger return spring

1шт.

21

NSS

NOT SOLD SEPARAT

BRACKET - valve mounting

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.
