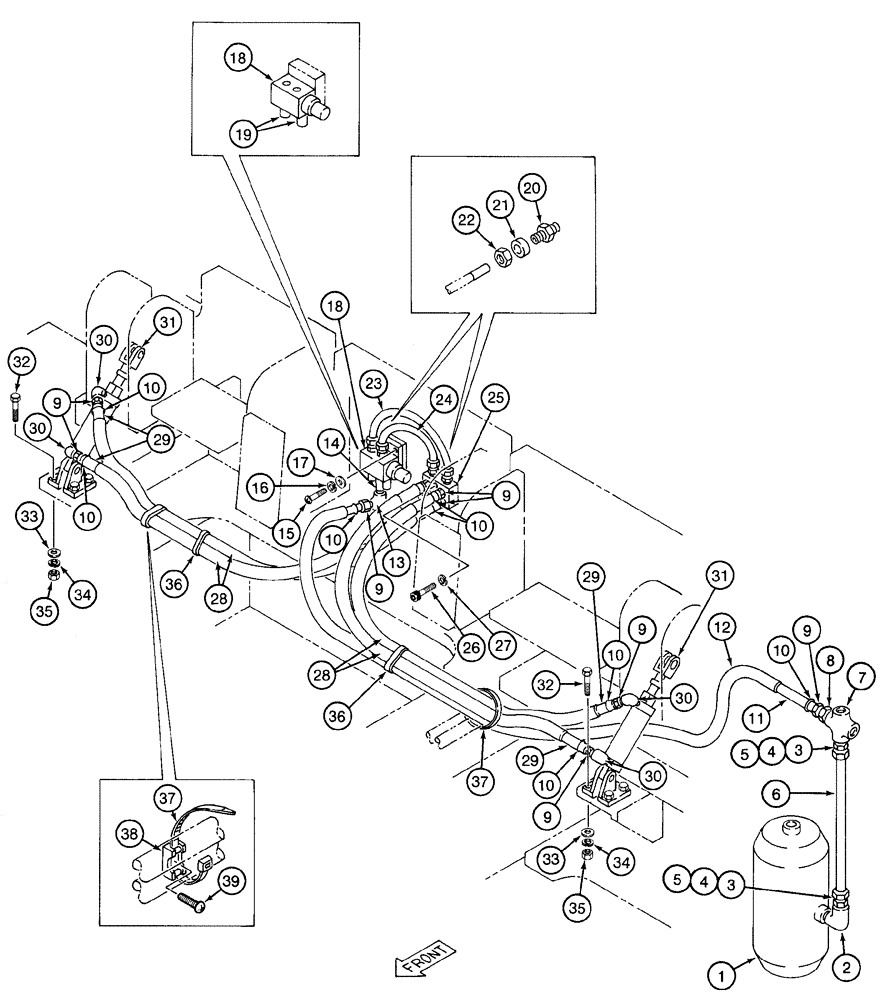

Запчасти Case 9060 (8-096) - AIR LINES, COUNTERWEIGHT REMOVAL SYSTEM (08) - HYDRAULICS

1

REF

INSTRUCTION

TANK - air, see Figure 8-094 Ref. 33

1шт.

2

158666A1

ELBOW

- 90 degree, hydraulic

1шт.

152946A1

HYD CONNECTOR

CONNECTOR - straight, Includes: Ref. 3 - 5

2шт.

3

153527A1

CONNECTOR, ELEC

ADAPTER - straight, air line

1шт.

4

153528A1

SLEEVE

- compression

1шт.

5

153529A1

UNION

NUT - compression fitting

1шт.

6

170099A1

PLASTIC-RUBBER TUBE

TUBE - nylon, air, Serial Range: tank-cross

1шт.

7

152303A1

4 WAY CONNECTION

CROSS - special

1шт.

8

151055A1

BUSHING

- reducer

1шт.

9

151235A1

CONNECTOR, ELEC

CONNECTOR - straight, barbed end

10шт.

10

151367A1

COLLAR

CLAMP - adjustable, at stem

10шт.

11

153080A1

HOSE

- 41-3/4 inch (3600 mm) long, tank to solenoid valve

1шт.

12

151175A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 118-1/8 inch (3000 mm) long

1шт.

13

152943A1

ELBOW

- 90 degree

1шт.

14

153633A1

NIPPLE, LUBE

CONNECTOR - straight

1шт.

15

840-148

SCREW,Pan, M4 x 8mm, Cl 4.8

- machine, pan Phillips, 4 - 0.7 x 8 mm

4шт.

16

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

4шт.

17

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(Flat, 4.3 x 9 x 0.8 mm) M4

4шт.

152790A1

VALVE

- solenoid, Includes: Ref. 18 - 19

1шт.

18

152939A1

VALVE

- solenoid, counterweight removal

1шт.

19

152940A1

MUFFLER

SILENCER - air

2шт.

152946A1

HYD CONNECTOR

CONNECTOR - straight, Includes: Ref. 20 - 22

4шт.

20

153527A1

CONNECTOR, ELEC

ADAPTER - straight, air line

1шт.

21

153528A1

SLEEVE

- compression

1шт.

22

153529A1

UNION

NUT - compression fitting

1шт.

23

152953A1

TUBE

- nylon, air line, solenoid to manifold, long

1шт.

24

152952A1

TUBE

- nylon, air line, solenoid to manifold, short

1шт.

25

152798A1

MANIFOLD

- air line

1шт.

26

862-6030

HEX SOC SCREW,M6 x 30mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 30 mm, class 12.9

2шт.

27

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

28

170100A1

GUARD

- hose, manifold to air cylinder

4шт.

29

153083A1

HOSE

- 43-3/8 inch (1100 mm) long, manifold to air cylinder

4шт.

30

152925A1

ELBOW

- 90 degree

4шт.

31

152791A1

CYLINDER

- air, parts list figure 8-100

2шт.

32

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm, class 10.9

8шт.

33

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

34

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

8шт.

35

829-1406

NUT,Hex, M6 x 1, Cl 10.9

8шт.

36

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

37

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

38

150860A1

COLLAR

BRACKET - support

1шт.

39

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm, clamp bracket mounting

1шт.
