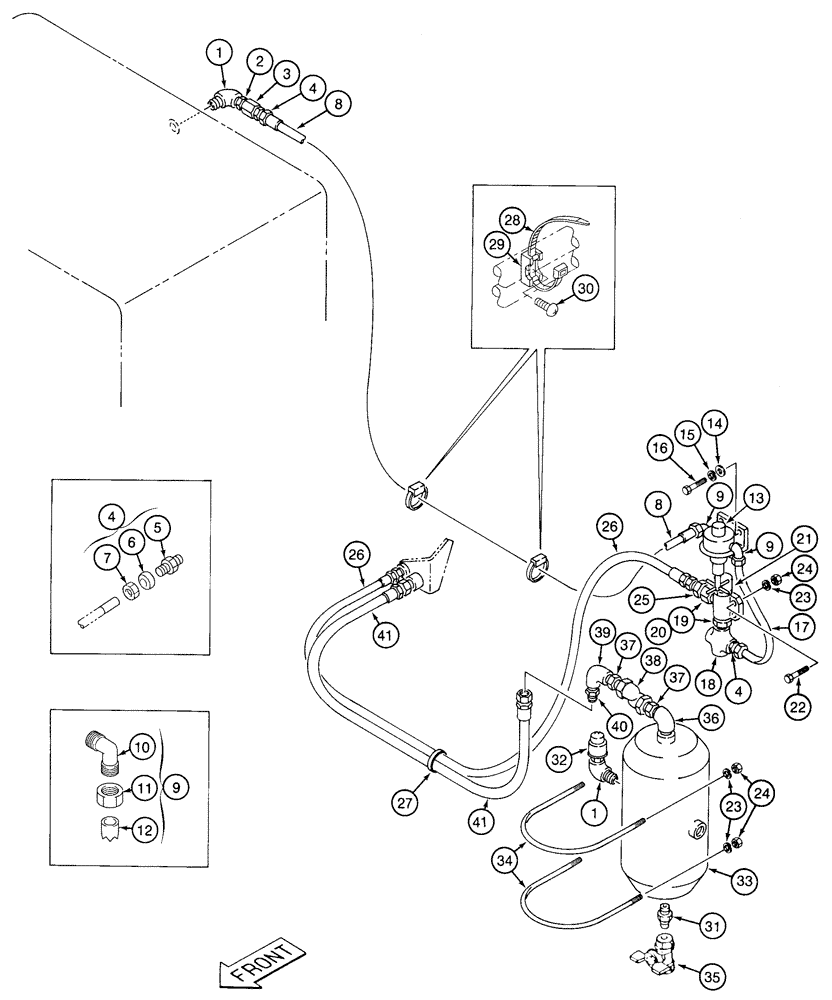

Запчасти Case 9060 (8-094) - AIR LINES, PRESSURE REDUCING VALVE TO BULKHEAD (08) - HYDRAULICS

1

158666A1

ELBOW

- 90 degree, air line

2шт.

2

152460A1

VALVE

- check

1шт.

3

150914A1

SOCKET

FITTING - straight, air line

1шт.

4

152946A1

HYD CONNECTOR

CONNECTOR - straight, air line tube, Includes: Ref. 5 - 7

5шт.

5

153527A1

CONNECTOR, ELEC

ADAPTER - straight, air line

1шт.

6

153528A1

SLEEVE

- compression

1шт.

7

153529A1

UNION

NUT - compression fitting

1шт.

8

170099A1

PLASTIC-RUBBER TUBE

TUBE - nylon

1шт.

9

152948A1

ELBOW

- 90 degree, air line, Includes: Ref. 10 - 12

2шт.

10

153530A1

ELBOW

- compression, air line

1шт.

11

153528A1

SLEEVE

- compression

1шт.

12

153529A1

UNION

NUT - compression fitting

1шт.

13

152845A1

VALVE

- pressure reducing, parts list figure 8-098

1шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

16

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

17

152953A1

TUBE

- nylon, reducing, Serial Range: valve-cross

1шт.

18

152303A1

4 WAY CONNECTION

CROSS - special, at governor

1шт.

19

153065A1

SOCKET

ADAPTER - special

2шт.

20

152510A1

GASKET

-, Serial Range: bushing-governor

2шт.

21

153063A1

GOVERNOR

- air line

1шт.

23

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

6шт.

25

150693A1

FITTING

ADAPTER - straight, hydraulic

1шт.

26

153079A1

LARGE HOSE

HOSE - 96-7/16 inch (2450 mm) long, Serial Range: governor-bulkhead

1шт.

27

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

28

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

29

150860A1

COLLAR

BRACKET - support

2шт.

30

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm, clamp bracket mounting

2шт.

31

150847A1

HYD CONNECTOR

CONNECTOR - straight, air line at reservoir

2шт.

32

153060A1

VALVE

- relief, air pressure

1шт.

33

153058A1

AIR TANK

TANK - air

1шт.

34

150119A1

U-BOLT,M8 x 170mm W x 105mm L

- air reservoir retaining

2шт.

35

152944A1

COCK, DRAIN

VALVE - drain, air, at reservoir

1шт.

36

153595A1

ELBOW

- 90 degree

1шт.

37

150848A1

NIPPLE, LUBE

ADAPTER - straight

2шт.

38

153057A1

VALVE

- check, air line

1шт.

39

158105A1

ELBOW

- 90 degree

1шт.

40

150073A1

ADAPTER

- straight, air line hose

1шт.

41

153078A1

LARGE HOSE

HOSE - 84-5/8inch (2150 mm) long, air, Serial Range: reservoir-bulkhead

1шт.

22

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

2шт.
