Запчасти Case 9060 (8-090) - ARM CYLINDER (08) - HYDRAULICS

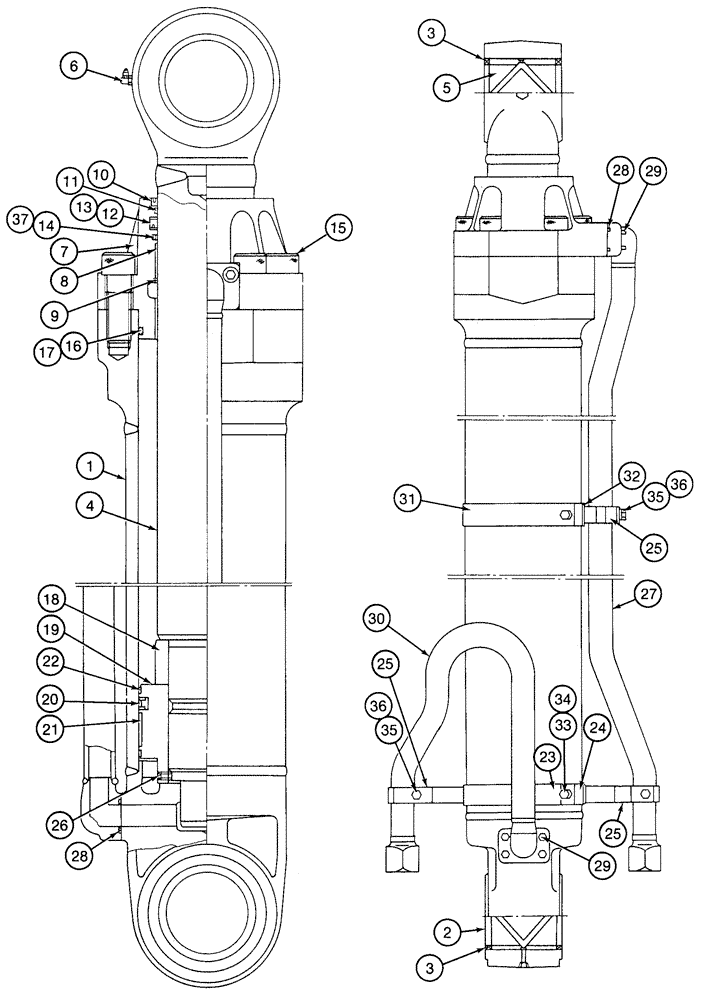

Схема запчастей Case 9060 - (8-090) - ARM CYLINDER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

151584A1

HYDRAULIC CYLINDER

CYLINDER - 7-1/8 (180) ID x 75-3/16 inch (1910 mm) stroke, arm, Includes: Ref. 1 - 37

1шт.

155876A1

HYD TUBE

TUBE - cylinder, Includes: Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

155422A1

BUSHING

- cylinder rod

1шт.

3

155149A1

SEAL

WIPER - tube mounting pin

4шт.

155879A1

PISTON

ROD - cylinder, Includes: Ref. 4 & 5

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - cylinder

1шт.

5

155422A1

BUSHING

- cylinder rod

1шт.

6

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

155882A1

ROD

GLAND - cylinder, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

8

155404A1

RING

BUSHING - gland

1шт.

9

155731A1

CLIP

RING - retaining, gland bushing

1шт.

10

155138A1

SEAL

WIPER - piston rod

1шт.

11

155332A1

RING

SEAL - piston rod

1шт.

Part of Seal Kit P/N 156004A1

1шт.

12

155244A1

BACK-UP RING

RING - backup, U-cup seal

1шт.

Part of Seal Kit P/N 156004A1

1шт.

13

155316A1

PACKING

SEAL - U-cup, piston rod

1шт.

Part of Seal Kit P/N 156004A1

1шт.

14

155141A1

SEAL

RING - buffer, piston rod

1шт.

Part of Seal Kit P/N 156004A1

1шт.

15

156226A1

BOLT (MACHINE),Hex Skt

BOLT - hex socket, special

8шт.

16

154239A1

BACK-UP RING

RING - backup, gland seal

1шт.

Part of Seal Kit P/N 156004A1

1шт.

17

154845A1

O-RING

-, Serial Range: gland-tube

1шт.

Part of Seal Kit P/N 156004A1

1шт.

18

155729A1

BUMPER

BEARING - cushion

1шт.

19

155979A1

PISTON

- cylinder

1шт.

20

155334A1

PACKING

SEAL - piston

1шт.

Part of Seal Kit P/N 156004A1

1шт.

21

155333A1

SEALING RING

RING - wear, piston, inner

1шт.

Part of Seal Kit P/N 156004A1

1шт.

22

155336A1

BACK-UP RING

RING - wear, piston, outer

2шт.

Part of Seal Kit P/N 156004A1

1шт.

23

156388A1

BAND

CLAMP - band, plain half

1шт.

24

156387A1

BAND

CLAMP - band, tube support half

1шт.

25

156381A1

CLAMP

- tube

3шт.

26

156214A1

SCREW

- set, special

1шт.

27

155531A1

HYD TUBE

TUBE - hydraulic, gland end

1шт.

28

154569A1

O-RING

- hydraulic tube

2шт.

29

153864A1

BOLT,Hex Skt

- hex socket, special

8шт.

30

155532A1

HYD TUBE

TUBE - hydraulic, closed end

1шт.

31

156385A1

BAND

CLAMP - band, plain half

1шт.

32

156386A1

BAND

CLAMP - band, tube support half

1шт.

33

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

4шт.

34

626-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

35

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

3шт.

36

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

3шт.

37

155246A1

O-RING

- buffer ring

1шт.

Part of Seal Kit P/N 156004A1

1шт.

156004A1

SEAL KIT

KIT - seal, Includes: Ref. 10 - 14, 16, 17, 20 - 22 & 37

1шт.

Выбрано товаров: 52
