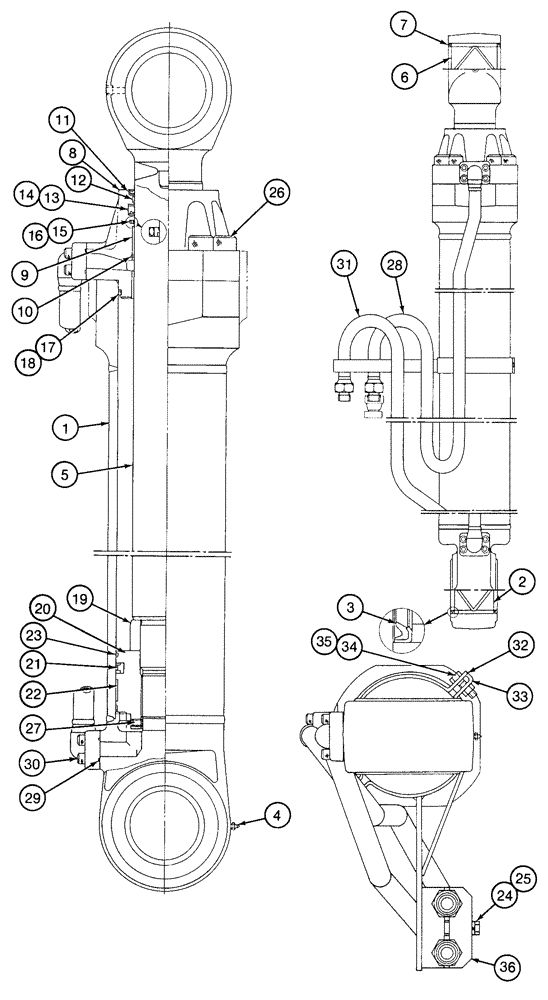

Запчасти Case 9060 (8-088) - BOOM CYLINDERS (08) - HYDRAULICS

153814A1

CYLINDER ASSY.

CYLINDER - 6-5/16 (160) ID x 62-3/16 inch (1580 mm) stroke, right-hand boom, Includes: Ref. 1 - 36

1шт.

153813A1

CYLINDER ASSY.

CYLINDER - 6-5/16 (160) ID x 62-3/16 inch (1580 mm) stroke, left-hand boom, Includes: Ref. 1 - 36

1шт.

155875A1

HYD TUBE

TUBE - cylinder, Includes: Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

155420A1

BUSHING

- tube

1шт.

3

155149A1

SEAL

WIPER - tube mounting pin

2шт.

4

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

155878A1

ROD ASSY.

ROD - cylinder, Includes: Ref. 5 & 6

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - cylinder

1шт.

6

155421A1

BUSHING

- cylinder rod

1шт.

7

155139A1

SEAL

RING - wiper, piston rod pin

2шт.

155881A1

ROD

GLAND - cylinder, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

9

155403A1

RING

BUSHING - gland

1шт.

10

155730A1

CLIP

RING - retaining, gland bushing

1шт.

11

155137A1

SEAL

WIPER - piston rod

1шт.

Part of Seal Kit P/N 164058A1

1шт.

12

155331A1

SEALING RING

SEAL - piston rod

1шт.

Part of Seal Kit P/N 164058A1

1шт.

13

155243A1

BACK-UP RING

RING - backup, U-cup seal

1шт.

Part of Seal Kit P/N 164058A1

1шт.

14

155315A1

SEAL

- U-cup, piston rod

1шт.

Part of Seal Kit P/N 164058A1

1шт.

15

155140A1

SEAL

RING - buffer, piston rod

1шт.

Part of Seal Kit P/N 164058A1

1шт.

16

155245A1

O-RING

- buffer ring

1шт.

Part of Seal Kit P/N 164058A1

1шт.

17

154215A1

BACK-UP RING

RING - backup, gland seal

1шт.

Part of Seal Kit P/N 164058A1

1шт.

18

154813A1

O-RING

SEAL -, Serial Range: gland,-tube

1шт.

Part of Seal Kit P/N 164058A1

1шт.

19

155728A1

BUMPER

BEARING - cushion

1шт.

20

155978A1

PIN

PISTON - cylinder

1шт.

21

155317A1

PACKING

SEAL - piston

1шт.

Part of Seal Kit P/N 164058A1

1шт.

22

155318A1

SEALING RING

RING - wear, piston, inner

1шт.

Part of Seal Kit P/N 164058A1

1шт.

23

155335A1

BACK-UP RING

RING - wear, piston, outer

2шт.

Part of Seal Kit P/N 164058A1

1шт.

24

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

1шт.

25

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

1шт.

26

156225A1

BOLT (MACHINE),Hex Skt

BOLT - hex socket, special

8шт.

27

156214A1

SCREW

- set, special

1шт.

28

155553A1

HYD TUBE

TUBE - hydraulic, gland end, right-hand boom cylinder

1шт.

28

155552A1

HYD TUBE

TUBE - hydraulic, gland end, left-hand boom cylinder

1шт.

29

154549A1

O-RING

- hydraulic tube

2шт.

30

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

SCREW - hex socket 12 - 1.75 x 40 mm, class 12.9

8шт.

31

155551A1

HYD TUBE

TUBE - hydraulic, tube end, right-hand boom cylinder

1шт.

31

155550A1

HYD TUBE

TUBE - hydraulic, tube end, left-hand boom cylinder

1шт.

32

156383A1

BAND

CLAMP - band, plain half

1шт.

33

156384A1

BAND

CLAMP - band, tube support half

1шт.

34

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

2шт.

35

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9, plated

2шт.

36

156380A1

CLAMP

- tube, double

1шт.

164058A1

SEAL KIT

KIT - seal, Includes: Ref. 11 - 18, and 21 - 23

1шт.
