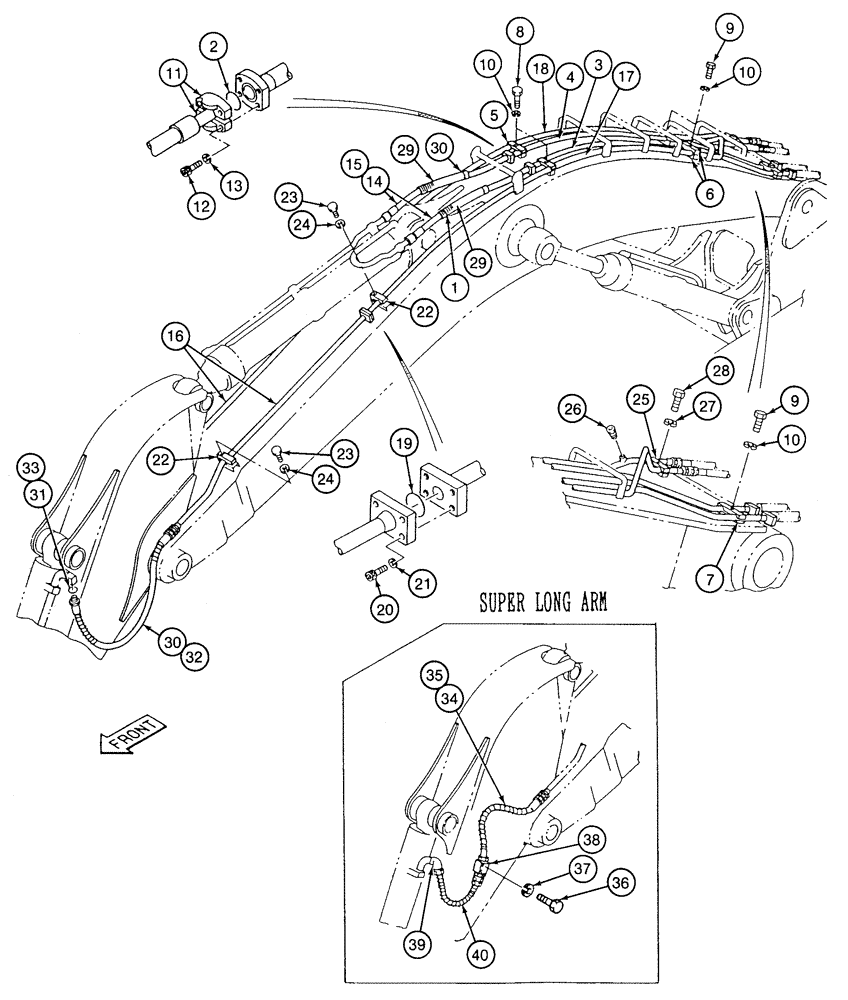

Запчасти Case 9060 (8-086) - ARM/BUCKET HYDRAULIC CIRCUITS, BASE OF BOOM TO BUCKET CYLINDER (08) - HYDRAULICS

1

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

4шт.

2

153626A1

O-RING

-, Serial Range: tube-hose

2шт.

3

157256A1

TUBE ASSY.

TUBE - hydraulic, to closed end of arm cylinder

1шт.

4

157257A1

HYD TUBE

TUBE - hydraulic, to rod end of arm cylinder

1шт.

5

152995A1

COLLAR

CLAMP - tube

2шт.

6

151695A1

CLAMP

- tube

4шт.

7

151380A1

CLAMP

- tube

2шт.

8

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

9

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

- hex, 16 - 2.0 x 90 mm, class 10.9

3шт.

10

892-10016

LOCK WASHER,M16

WASHER - lock, 16 mm

5шт.

11

150124A1

FLANGE

- split, hose mounting

4шт.

12

863-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

SCREW - hex socket, 14 - 2.0 x 50 mm, class 12.9

8шт.

13

150336A1

SPRING WASHER

WASHER - lock, 14 mm

8шт.

14

151833A1

HOSE ASSY.

HOSE - 50 inch (1270 mm) long, to arm cylinder, Includes: Ref. 15

2шт.

15

150583A1

O-RING

- hose

1шт.

16

151689A1

TUBE,34 mm OD, 2650, 69.5 mm Length

- to bucket cylinder, at top of arm

2шт.

17

152011A1

HYD TUBE

TUBE - hydraulic, bucket cylinder, at base of boom, left-hand

1шт.

18

152009A1

HYD TUBE,34 mm OD, 4384.5, 1690.2 mm Length

TUBE - hydraulic, bucket cylinder, at base of boom, right-hand

1шт.

19

154548A1

O-RING

- tube

2шт.

20

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 45 mm, class 12.9

8шт.

21

112310A1

WASHER

- lock, special

8шт.

22

150777A1

COLLAR

CLAMP - tube

4-6шт.

23

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

4-6шт.

24

892-10016

LOCK WASHER,M16

WASHER - lock, 16 mm

4-6шт.

25

151232A1

CLAMP

- tube

2шт.

26

150824A1

PLUG

- port

2шт.

27

892-10016

LOCK WASHER,M16

WASHER - lock, 16 mm

1шт.

28

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

29

151046A1

GUARD

- hose

2шт.

30

153816A1

HYDRAULIC HOSE,1900.00 mm

- Bucket cylinder, at top of arm, Includes Ref. 31, Models with 11 foot arm only 1900.00 mm

2шт.

31

154523A1

O-RING

- hose

1шт.

32

151658A1

HOSE ASSY.,2400.00 mm

HYDRAULIC HOSE - - At top of arm, Includes Ref. 33, Models with 13 foot 1 inch only 2400.00 mm

2шт.

33

154523A1

O-RING

- hose

1шт.

34

151658A1

HOSE ASSY.,2400.00 mm

HYDRAULIC HOSE - - At top of arm, Includes Ref. 35, Models with 17 foot 8 inch only 2400.00 mm

2шт.

35

154523A1

O-RING

-, Serial Range: hose-manifold

1шт.

36

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9, Models with 17 foot 8 inch arm only

4шт.

37

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm, Models with 17 foot 8 inch arm only

4шт.

38

153830A1

MANIFOLD

- hydraulic, bucket cylinder, at top of arm, models with 17 foot 8 inch only

2шт.

39

153682A1

ELBOW

- 90 degree, hydraulic, models with 17 foot 8 inch arm only

2шт.

40

153816A1

HYDRAULIC HOSE,1900.00 mm

- Manifold to bucket cylinder, Models with 17 foot 8 inch arm only 1900.00 mm

2шт.
