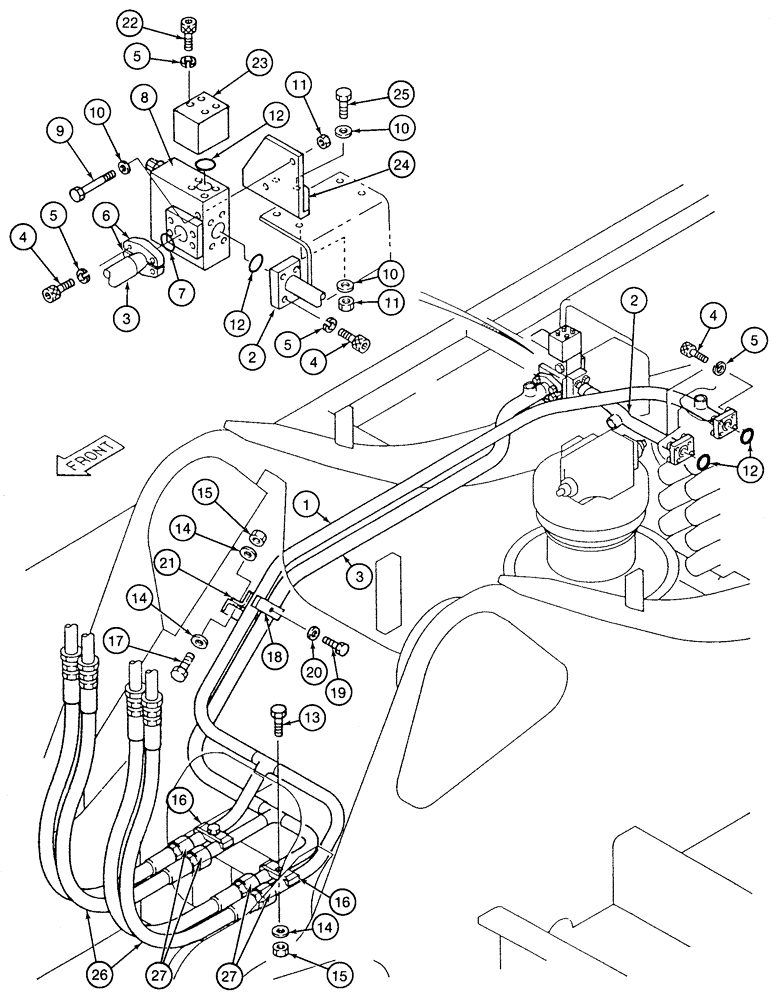

Запчасти Case 9060 (8-080) - BOOM HYDRAULIC CIRCUIT, CONTROL VALVE TO BASE OF BOOM (08) - HYDRAULICS

1

153035A1

TUBE

- flanged, at control valve boom section, rear port

1шт.

2

153031A1

TUBE,34 mm OD, 280, 40 mm Length

- flanged, at control valve boom section, front port to boom hold valve

1шт.

3

153033A1

TUBE

- flanged, at boom hold valve to boom cylinders

1шт.

4

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 X 35 mm, class 12.9

16шт.

5

112309A1

LOCK WASHER

- lock, special

20шт.

6

153459A1

FLANGE

- split

2шт.

7

150678A1

O-RING

- tube to boom hold valve

1шт.

8

153296A1

VALVE

- holding, boom, parts list figure 8-82

1шт.

9

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

- hex, 10 - 1.5 x 90 mm, class 10.9

2шт.

10

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

6шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

12

154548A1

O-RING

- tubes and, Serial Range: manifold-valves

4шт.

13

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

2шт.

14

150811A1

WASHER

- flat, special, 12 mm

6шт.

15

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

4шт.

16

152997A1

COLLAR

CLAMP - tube

2шт.

17

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

18

152995A1

COLLAR

CLAMP - tube

1шт.

19

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

20

150991A1

WASHER

- flat, special, 16 mm

1шт.

21

152759A1

BRACKET

- tube support

1шт.

22

863-10080

HEX SOC SCREW,M10 x 80mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 80 mm, class 12.9

4шт.

23

153519A1

ELBOW

MANIFOLD - hydraulic, for flanged fittings

1шт.

24

152993A1

BRACKET

- valve mounting

1шт.

25

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

2шт.

26

152884A1

HOSE ASSY.

HOSE - 47-1/4 inch (1200 mm) long, to boom cylinders, Includes: Ref. 27

4шт.

27

154523A1

O-RING

- hose

1шт.
