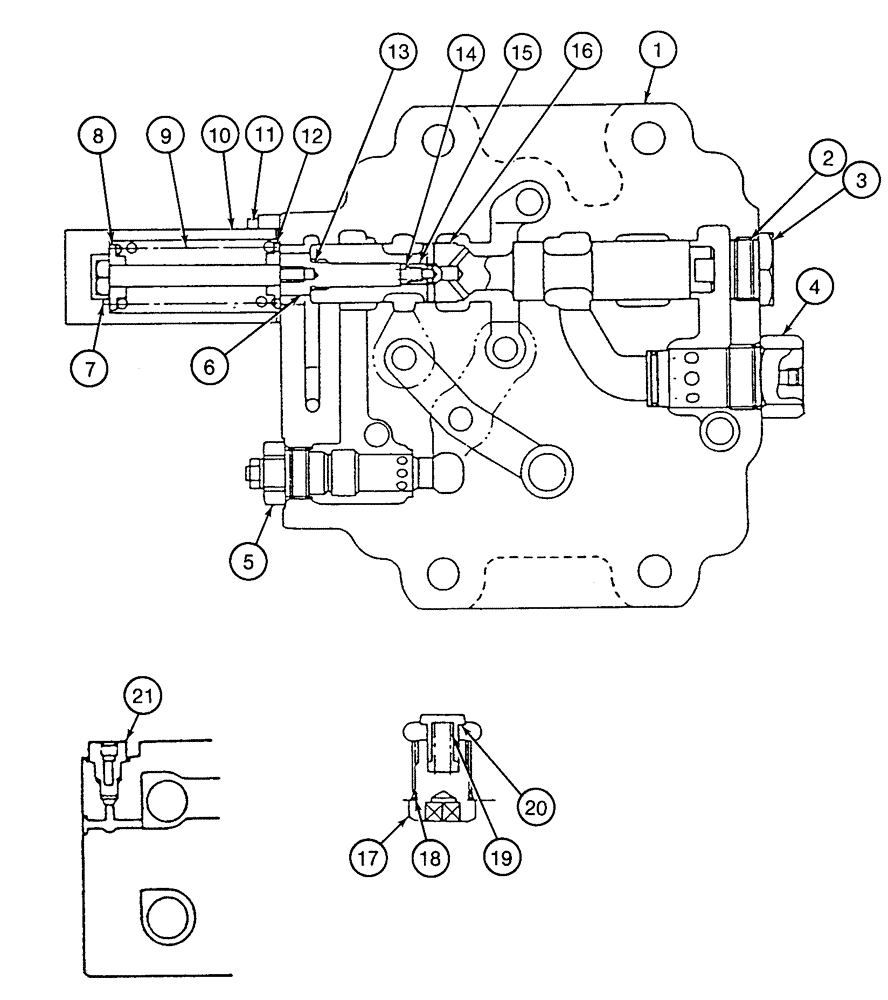

Запчасти Case 9060 (8-078) - 153038A1 CONTROL VALVE, 157333A1 END COVER (08) - HYDRAULICS

153038A1

VALVE, CONTROL

VALVE - hydraulic control, parts list figures 8-072 - 8-078, Includes: Ref. 1 - 21

1шт.

157333A1

SIDE ASSY.

COVER - end, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

153860A1

O-RING

- plug

1шт.

3

157334A1

PLUG

- port

1шт.

4

157335A1

VALVE

- relief

1шт.

5

157336A1

VALVE

- main relief

1шт.

6

157337A1

PLUG

PLUNGER - valve

1шт.

7

157338A1

CAP

RETAINER - spring seat

1шт.

8

157339A1

SPRING SEAT

SEAT - spring

2шт.

9

157340A1

SPRING

- compression

1шт.

10

157341A1

CAP

- valve

1шт.

11

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 X 35 mm, class 12.9

2шт.

12

157342A1

O-RING

- spool end cover

1шт.

13

153884A1

O-RING

-, Serial Range: plunger-spool

1шт.

14

156016A1

SPRING

- compression

1шт.

15

155905A1

VALVE

PLUNGER - valve

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL - straight travel

1шт.

157343A1

VALVE, CHECK

VALVE - check, Includes: Ref. 17 - 20

1шт.

17

155462A1

PLUG

- special

1шт.

18

153879A1

O-RING

- plug

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

20

NSS

NOT SOLD SEPARAT

POPPET - check

1шт.

21

157365A1

PLUG

- port, special

1шт.
