Запчасти Case 9060 (8-076) - 153038A1 CONTROL VALVE, PLUGS, CHECK AND RELIEF VALVES (08) - HYDRAULICS

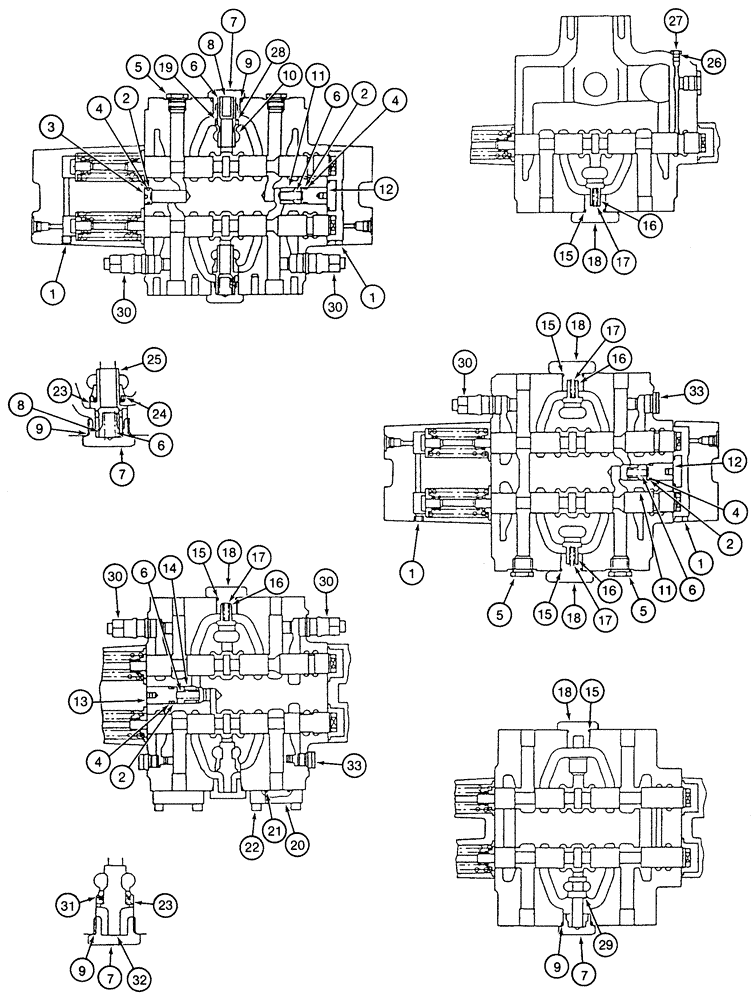

Схема запчастей Case 9060 - (8-076) - 153038A1 CONTROL VALVE, PLUGS, CHECK AND RELIEF VALVES (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

153038A1

VALVE, CONTROL

VALVE - hydraulic control, parts list figures 8-072 - 8-078, Includes: Ref. 1 - 37

1шт.

1

157349A1

PLUG

- port

4шт.

2

155095A1

O-RING

- plug

4шт.

3

157350A1

PLUG

- port

1шт.

4

154426A1

BACK-UP RING

RING - backup

4шт.

5

155453A1

PLUG

- port

4шт.

6

157351A1

SPRING

- compression

5шт.

7

157352A1

PLUG

- special, spring retaining

4шт.

8

157353A1

VALVE POPPET

PISTON - valve

2шт.

9

154583A1

O-RING

- plug

4шт.

10

157354A1

SLEEVE

- valve

1шт.

11

157355A1

WELL

PLUNGER - valve

2шт.

12

157356A1

PLUG

- port, special, spring retaining

2шт.

13

157357A1

PLUG

- port, special, spring retaining, auxiliary section

1шт.

14

157358A1

VALVE POPPET

PLUNGER - valve, auxiliary section

1шт.

15

154539A1

O-RING

- plug

5шт.

16

157359A1

VALVE POPPET

PISTON - valve

4шт.

17

157360A1

SPRING

- compression

4шт.

18

157361A1

PLUG

- port, special, spring retaining

5шт.

19

157369A1

VALVE POPPET

POPPET - check

1шт.

20

156278A1

COVER

PLATE - auxiliary port cover, four bolt

2шт.

21

155211A1

O-RING

- auxiliary cover

2шт.

22

863-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9

8шт.

23

157362A1

SPRING

- poppet return

2шт.

24

157363A1

VALVE POPPET

POPPET - relief

1шт.

25

157364A1

SLEEVE

- valve, arm section

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

27

153883A1

PLUG

- port

1шт.

28

157370A1

SPRING

- compression

1шт.

29

157366A1

SLEEVE

- valve, travel section

1шт.

30

155745A1

VALVE PRESSURE RELIE

VALVE - relief, overload, parts list figure 8-077A

5шт.

31

157367A1

VALVE POPPET

POPPET - relief

1шт.

32

157368A1

SLEEVE

- check, auxiliary section

1шт.

33

155438A1

PLUG

- special, Includes: Ref. 34 - 37

3шт.

34

155223A1

O-RING

- special, not shown

1шт.

35

160368A1

BACK-UP RING

RING - backup, not shown

1шт.

36

160369A1

PLUG

- special, not shown

1шт.

37

160370A1

O-RING

- special, not shown

1шт.

Выбрано товаров: 38
