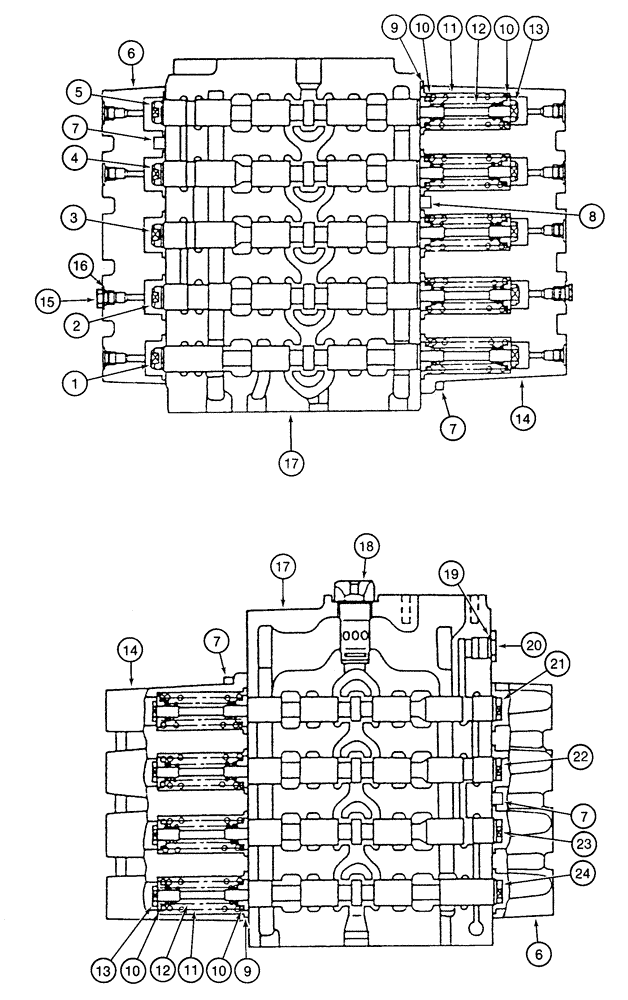

Запчасти Case 9060 (8-074) - 153038A1 CONTROL VALVE, SPOOLS AND RELATED PARTS (08) - HYDRAULICS

153038A1

VALVE, CONTROL

VALVE - hydraulic control, parts list figures 8-072 - 8-078, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - boom, left-hand side

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - arm, left-hand side

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - swing

1шт.

6

157347A1

CAP

COVER - spool end

1шт.

7

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9

18шт.

8

863-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9

1шт.

9

154623A1

O-RING

- spool, Serial Range: cover-housing

18шт.

10

157339A1

SPRING SEAT

SEAT - spring

18шт.

11

157344A1

SPRING

- compression, outer

9шт.

12

157345A1

SPRING

- compression, inner

9шт.

13

157338A1

CAP

RETAINER - spring seat, spool end

9шт.

14

157346A1

CAP

COVER - spool, spring end

1шт.

15

157348A1

PLUG

- port

2шт.

16

154475A1

O-RING

- port plug

2шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

18

157335A1

VALVE

- relief

1шт.

19

154503A1

O-RING

- port plug

1шт.

20

155455A1

PLUG

- port

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL - arm, right-hand side

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL - boom, right-hand side

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL - bucket

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - travel, right-hand side

1шт.
