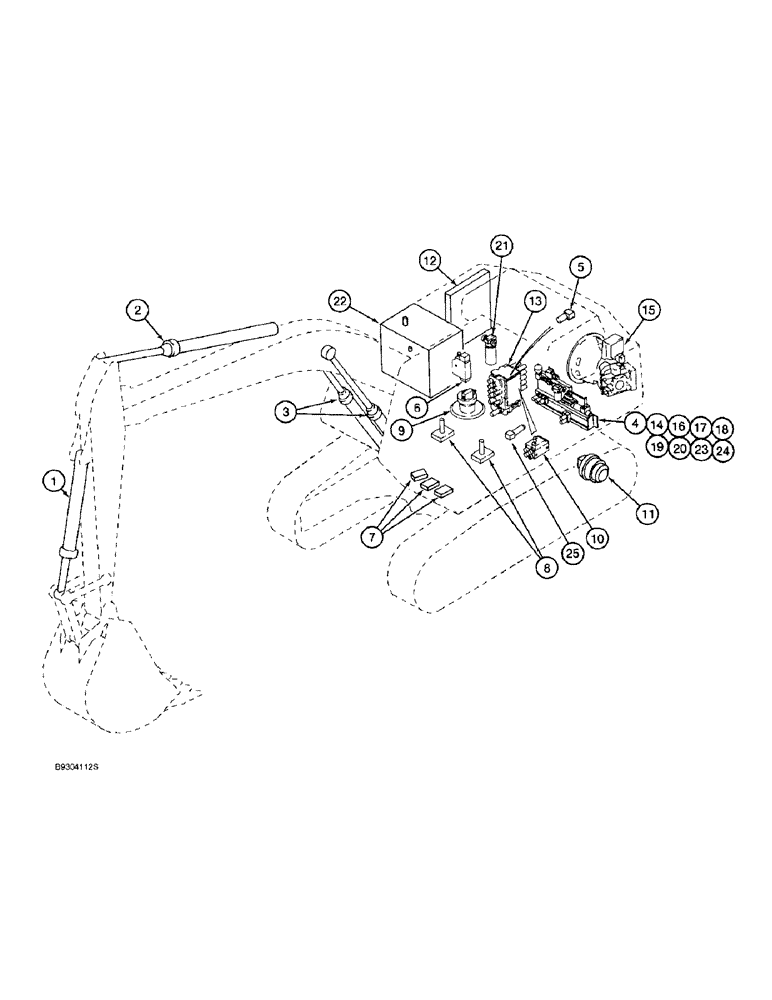

Запчасти Case 9060 (1-10) - PICTORIAL INDEX, BASIC HYDRAULIC COMPONENTS (00) - PICTORIAL INDEX

1

Bucket Cylinder, Page 8-93

1шт.

2

Arm Cylinder, Page 8-91

1шт.

3

Boom Cylinders, Page 8-89

1шт.

4

Pilot Line Filter, Page 8-33

1шт.

5

Free Swing Solenoid Valve, Page 8-45

1шт.

6

Boom Holding Valve, Page 8-83

1шт.

7

Foot Pedal Control Valves, Page 8-57

1шт.

8

Remote Control Valves, Page 8-55

1шт.

9

Swing Motor, Page 8-63, 8-71

1шт.

10

Cushion Valve, Page 8-53

1шт.

11

Track Drive Motor, Page 6-9, 6-11

1шт.

12

Oil Cooler, Page 2-7

1шт.

13

Equipment Control Valve, Page 8-73, 8-79

1шт.

14

Pilot Accumulator, Page 8-33

1шт.

15

Equipment Pump, Page 8-15, 8-23

1шт.

16

Two Speed Travel Control Valve, Page 8-47

1шт.

17

Swing Brake Release Valve, Page 8-47

1шт.

18

Cushion Shutoff Solenoid Valve, Page 8-47

1шт.

19

Control Shutoff Valve, Page 8-43

1шт.

20

Pilot Relief Valve, Page 8-33

1шт.

21

Pilot Return Valve, Page 8-11

1шт.

22

Hydraulic Reservoir, Page 8-3

1шт.

23

Counterweight Hoist Remote Control Valve, Page 8-57

1шт.

24

Counterweight Hoist Valves, Page 8-47

1шт.

25

Boom Down Valve, Page 8-49

1шт.
