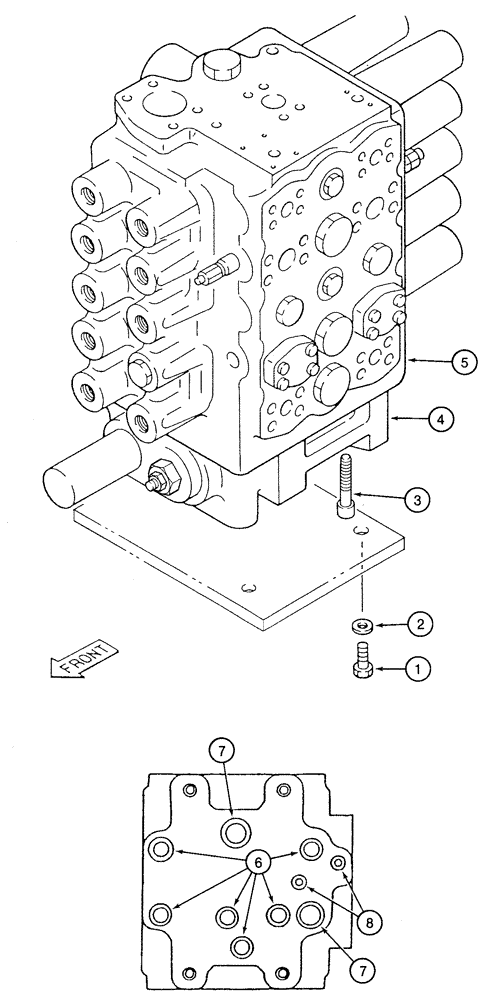

Запчасти Case 9060 (8-072) - 153038A1 CONTROL VALVE AND MOUNTING (08) - HYDRAULICS

1

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, 20 - 2.5 x 80 mm, class 10.9

4шт.

2

153047A1

SPACER

WASHER - flat, special

4шт.

153038A1

VALVE, CONTROL

VALVE - hydraulic control, parts list figures 8-072 - 8-078, Includes: Ref. 3 - 8

1шт.

153038A1

VALVE, CONTROL

VALVE - hydraulic control, parts list figures 8-072 - 8-078

1шт.

3

157332A1

BOLT

BOLT - hex socket, end cover mounting

4шт.

4

157333A1

SIDE ASSY.

COVER - end, parts list figure 8-078

1шт.

5

REF

INSTRUCTION

VALVE - hydraulic control, without end cover, parts list figures 8-074 and 8-076

1шт.

6

154528A1

O-RING

- oil passage, end cover

6шт.

7

150583A1

O-RING

- oil passage, end cover

2шт.

8

155172A1

O-RING

- oil passage, end cover

2шт.
