Запчасти Case 9060 (8-070) - 155843A1 BRAKE VALVE (08) - HYDRAULICS

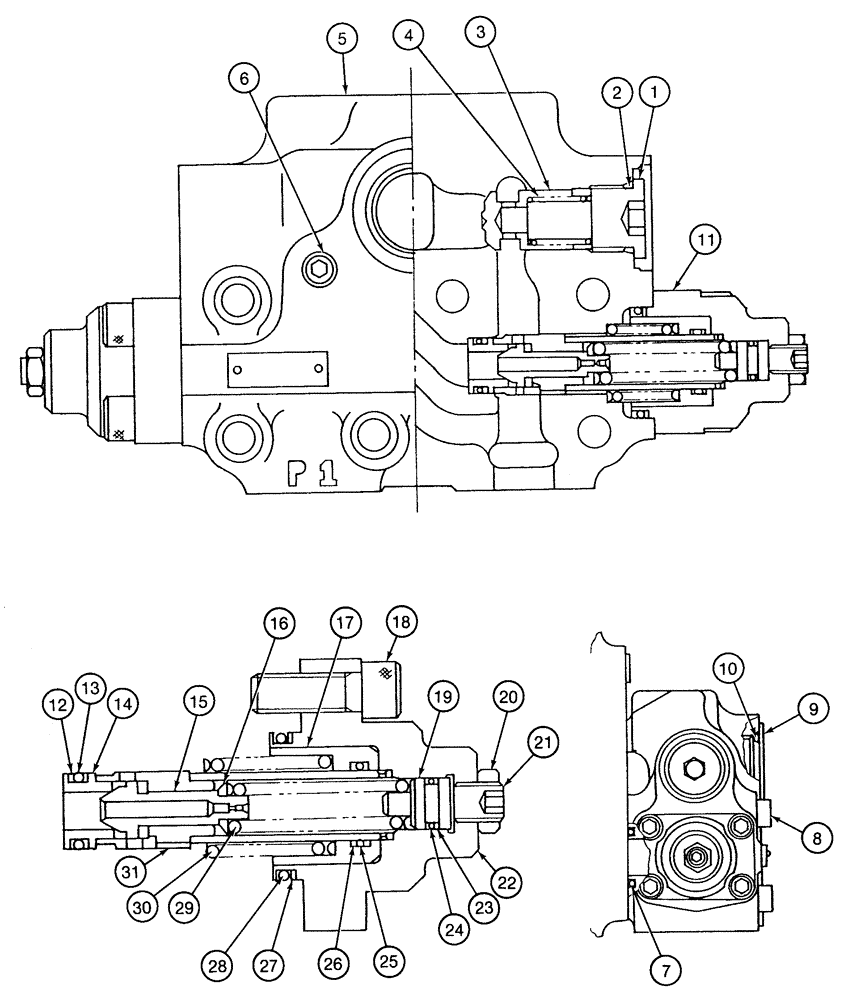

Схема запчастей Case 9060 - (8-070) - 155843A1 BRAKE VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

155843A1

VALVE, CONTROL

VALVE - brake, Includes: Ref. 1 - 31

1шт.

1

155507A1

PLUG

- check valve retaining

2шт.

2

155223A1

O-RING

- plug

2шт.

3

155962A1

VALVE

- check

2шт.

4

156112A1

SPRING

- check valve

2шт.

5

156370A1

BODY

HOUSING - brake valve

1шт.

6

151026A1

PLUG

- port

2шт.

7

154543A1

O-RING

- Oil passage

2шт.

8

156206A1

BOLT (MACHINE),Hex Skt

BOLT - hex socket, special

6шт.

9

155508A1

PLUG

- port

1шт.

10

154523A1

O-RING

- plug

1шт.

11

155842A1

VALVE, PRESSURE RELI

VALVE - relief, Includes: Ref. 12 - 31

2шт.

12

153970A1

BACK-UP RING

RING - backup, seal, poppet seat

2шт.

13

154487A1

O-RING

- poppet seat

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - relief valve

1шт.

18

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9

4шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

20

NSS

NOT SOLD SEPARAT

NUT - adjusting

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW - set, hex socket

1шт.

22

NSS

NOT SOLD SEPARAT

COVER - relief valve

1шт.

23

153958A1

BACK-UP RING

RING - backup, seal, spring guide

1шт.

24

154471A1

O-RING

- spring guide

1шт.

25

154499A1

O-RING

- piston

1шт.

26

153979A1

BACK-UP RING

RING - backup, piston seal

2шт.

27

154027A1

BACK-UP RING

RING - backup, cover seal

1шт.

28

154563A1

O-RING

- cover

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - relief, inner

1шт.

30

156113A1

SPRING

- relief, outer

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING - relief

1шт.

Выбрано товаров: 32
