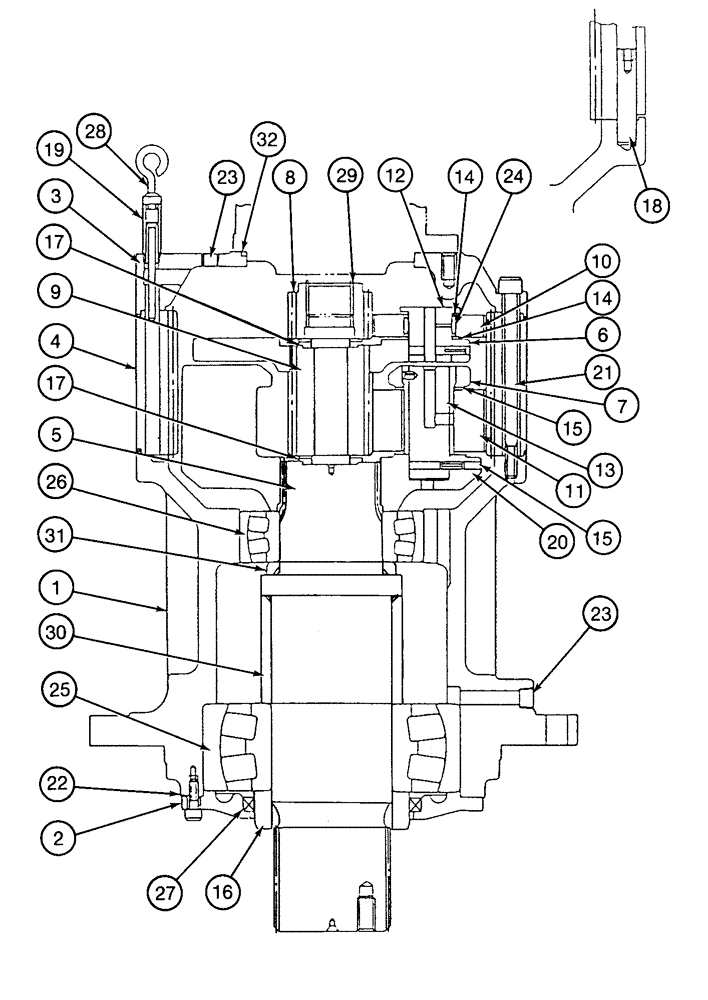

Запчасти Case 9060 (8-066) - 150407A1 SWING REDUCTION GEAR (08) - HYDRAULICS

150407A1

REDUCER

GEAR - reduction, Includes: Ref. 1 - 32

1шт.

1

150321A1

HOUSING ASSY.

HOUSING - gear assembly

1шт.

2

158857A1

RETAINER

- seal, was 150161A1

1шт.

3

150378A1

COVER

- reduction gear assembly

1шт.

4

150411A1

PINION

GEAR - ring

1шт.

5

150382A1

SHAFT

- drive

1шт.

6

150416A1

HOUSING

CARRIER - planetary, secondary

1шт.

7

150421A1

BEARING CARRIER

CARRIER - planetary, primary

1шт.

8

150423A1

SUN GEAR

GEAR - sun, secondary

1шт.

9

150424A1

SUN GEAR

GEAR - sun, primary

1шт.

10

150428A1

SUN GEAR

GEAR - planetary, secondary

3шт.

11

150431A1

SUN GEAR

GEAR - planetary, primary

3шт.

12

150197A1

GEAR SHAFT

SHAFT - gear, secondary

3шт.

13

150199A1

GEAR SHAFT

SHAFT - gear, primary

4шт.

14

150300A1

WASHER, THRUST

WASHER - thrust, secondary

6шт.

15

150209A1

WASHER, THRUST

WASHER - thrust, primary

8шт.

16

150215A1

SEALING RING

RING - seal

1шт.

17

150308A1

PLATE, THRUST

WASHER - thrust

2шт.

18

150228A1

PIN

- special

4шт.

19

150435A1

COLUMN JACKET

TUBE - dipstick

1шт.

20

738-1825

LOCK PIN,M8 x 25, Slotted

7шт.

21

150237A1

BOLT,Hex Skt

BOLT - hex socket, special

18шт.

22

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9

16шт.

23

150829A1

PLUG

- port

2шт.

24

150244A1

BEARING, NEEDLE

BEARING - needle

3шт.

25

150252A1

BEARING,140 mm ID x 300 mm OD x 102 mm

- roller, outer, flanged end

1шт.

26

150335A1

ROLLER BEARING,130 mm ID x 230 mm OD x 64 mm

- roller, inner

1шт.

27

150267A1

OIL SEAL

SEAL - oil

1шт.

28

150438A1

GAUGE

DIPSTICK - oil lube

1шт.

29

800-1155

RETAINER,55mm ID

RING - external retaining, No. 55

1шт.

30

150313A1

SPACER

- bearing, long

1шт.

31

150333A1

SPACER

- bearing, inner, short

1шт.

32

150380A1

O-RING

- to swing motor

1шт.
