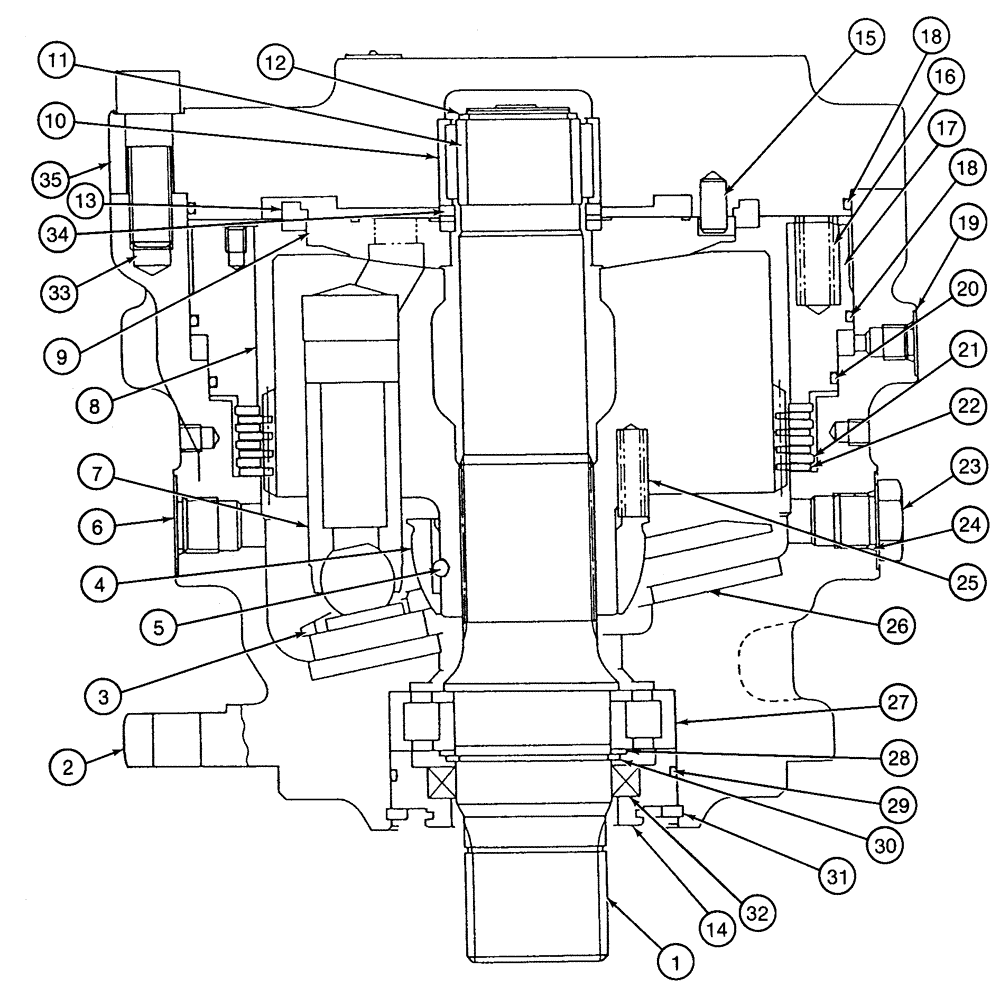

Запчасти Case 9060 (8-064) - 157232A1 SWING MOTOR (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
157232A1
MOTOR
- swing, Includes: Ref. 1 - 35
1шт.
1
155363A1
SHAFT
- drive, motor
1шт.
2
156321A1
BOX
HOUSING - piston motor
1шт.
155782A1
RETAINER
- plate, Includes: Ref. 3 & 4
1шт.
3
NSS
NOT SOLD SEPARAT
PLATE - retainer
1шт.
4
NSS
NOT SOLD SEPARAT
HOLDER - retainer
1шт.
5
155937A1
BALL
- steel
1шт.
6
NSS
NOT SOLD SEPARAT
PLUG - port
1шт.
157472A1
CYLINDER
BLOCK - cylinder, Includes: Ref. 7 - 9
1шт.
7
NSS
NOT SOLD SEPARAT
PISTON - swing motor
9шт.
8
NSS
NOT SOLD SEPARAT
BLOCK - cylinder
1шт.
9
NSS
NOT SOLD SEPARAT
PLATE - valve
1шт.
10
156137A1
BEARING, NEEDLE,Needle, 47.63mm ID x 61.91mm OD x 31.75mm W
BEARING - needle
1шт.
11
156136A1
RING RACE
RACE - bearing, inner
1шт.
12
155624A1
RING, SNAP
RING - retaining
1шт.
13
157474A1
COLLAR
- valve plate
1шт.
14
156315A1
OIL SEAL
RETAINER - seal, shaft oil seal
1шт.
15
155623A1
COTTER PIN
PIN - dowel
1шт.
16
156065A1
SPRING
- compression
16шт.
17
155948A1
PISTON
- brake
1шт.
18
155220A1
O-RING
- piston
2шт.
19
NSS
NOT SOLD SEPARAT
PLUG - port
1шт.
20
155219A1
O-RING
-, Serial Range: piston-housing
1шт.
21
156313A1
BRAKE DISC
PLATE - friction
4шт.
22
156312A1
PLATE
- disc
4шт.
23
155481A1
PLUG
- port
1шт.
25
156083A1
SPRING
- piston return
9шт.
26
155385A1
PLATE, THRUST
PLATE - swash
1шт.
27
156139A1
BEARING, ROLLER,60 mm ID x 110 mm OD x 22 mm
BEARING - roller
1шт.
28
156193A1
WASHER
SPACER - bearing
1шт.
29
154733A1
O-RING
- oil seal retaining plate
1шт.
30
155625A1
RING, SNAP
RING - retaining, bearing
1шт.
31
155626A1
RING, SNAP
RING - retaining, plate
1шт.
32
155108A1
OIL SEAL
SEAL - oil, shaft
1шт.
33
863-16050
HEX SOC SCREW,M16 x 50mm, Cl 12.9
SCREW - hex socket, 16 - 2.0 x 50 mm, class 12.9
9шт.
34
157473A1
COLLAR
SPACER - needle bearing
1шт.
35
157081A1
COVER
- piston motor, swing motor
1шт.
Выбрано товаров: 38
