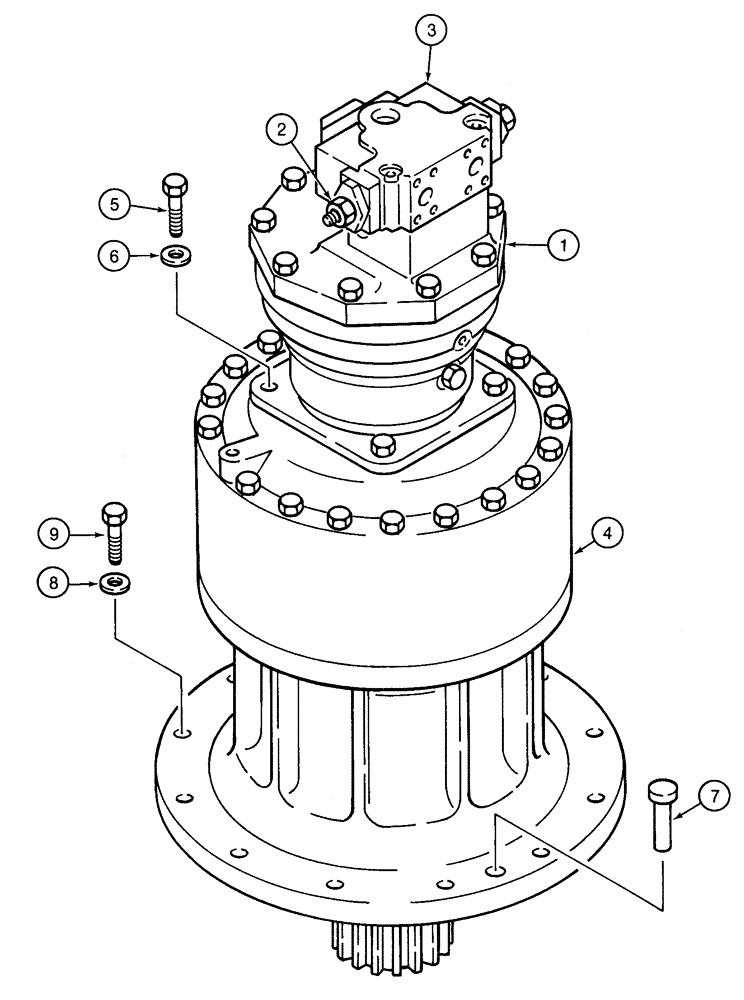

Запчасти Case 9060 (8-062) - SWING MOTOR AND MOUNTING (08) - HYDRAULICS

150444A1

MOTOR

- swing, with reduction gear, parts list figures 8-062 thru 8-070, Includes: Ref. 1 - 6

1шт.

150444A1

MOTOR

- swing, with reduction gear, parts list figures 8-062 thru 8-070, Includes: Ref. 1 - 3

1шт.

150448A1

ASSEMBLY

MOTOR - swing, with check and brake valves, without reduction gear, parts list figures 8-062, 8-064, 8-068 & 8-070

1шт.

1

157232A1

MOTOR

- swing, parts list figure 8-064

1шт.

2

155847A1

VALVE, CHECK

VALVE - check, parts list figure 8-068

1шт.

3

155843A1

VALVE, CONTROL

VALVE - brake, parts list figure 8-070

1шт.

4

150407A1

REDUCER

GEAR - reduction, swing motor, parts list figure 8-066

1шт.

5

626-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

6

150991A1

WASHER

- flat, special, 16 mm

4шт.

7

150317A1

HEADED PIN,24mm OD x 90mm L

PIN - headed, alignment

1шт.

8

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

12шт.

9

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9

12шт.
