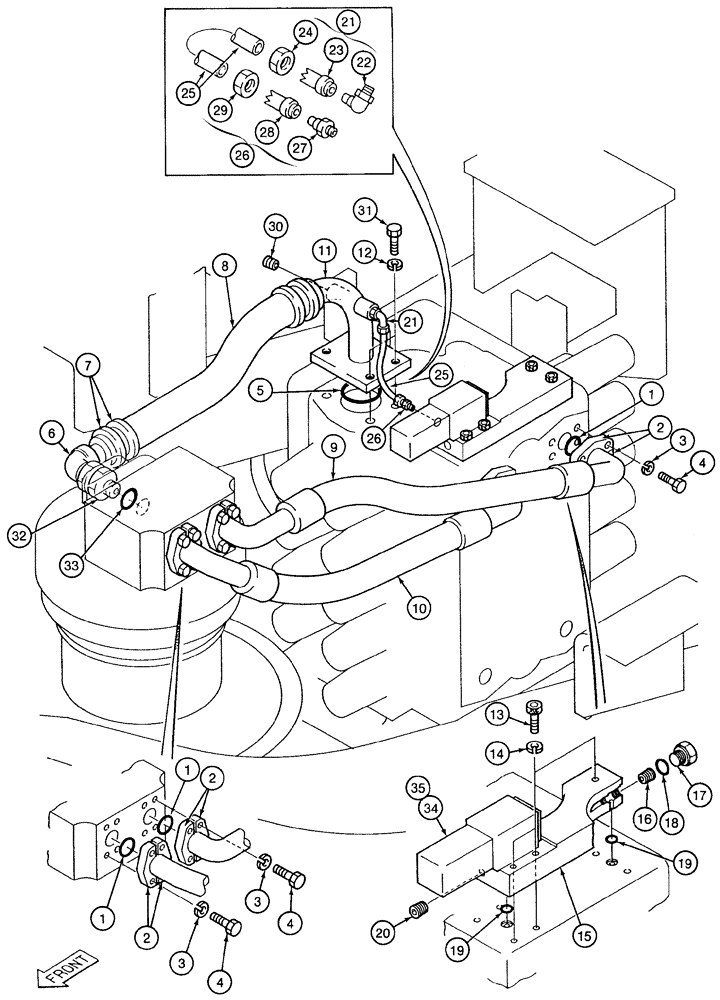

Запчасти Case 9060 (8-060) - SWING MOTOR HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

150678A1

O-RING

- tube

4шт.

2

153459A1

FLANGE

- split, hose mounting

8шт.

3

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

16шт.

4

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

5

154679A1

O-RING

- tube, top of control valve

1шт.

6

152745A1

TUBE,34 mm OD, 113 mm Length

-

1шт.

7

150885A1

COLLAR

CLAMP - adjustable

4шт.

8

151111A1

HOSE

- 14-3/8 inch (365 mm) long, swing motor return

1шт.

9

152897A1

HYDRAULIC HOSE

HOSE - left-hand side of control valve, rear swing port

1шт.

10

152740A1

HOSE ASSY.

HOSE - 26-3/4 inch (680 mm) long, left-hand side of control valve, front swing port

1шт.

11

152898A1

TUBE,34 mm OD, 145, 110 mm Length

- hydraulic, swing motor return, at top of control valve

1шт.

12

153623A1

SPRING WASHER

WASHER - lock, special

4шт.

13

861-6045

HEX SOC SCREW,M6 x 45mm, Cl 12.9

BOLT - hex socket, 6 - 1.0 x 45 mm, class 12.9

6шт.

14

112311A1

WASHER

- lock, special

6шт.

15

152856A1

MANIFOLD

- hydraulic, solenoid mounting

1шт.

16

152746A1

ORIFICE

PLUG - orifice

1шт.

17

153105A1

PLUG

- port

1шт.

18

154475A1

O-RING

- plug

1шт.

19

152445A1

O-RING

- oil passage

2шт.

20

151022A1

PLUG

- hex socket, special

1шт.

21

152948A1

ELBOW

- 90 degree, nylon tube, Includes: Ref. 22 - 24

1шт.

22

153530A1

ELBOW

- compression

1шт.

23

153528A1

SLEEVE

- compression

1шт.

24

153529A1

UNION

NUT - compression fitting

1шт.

25

152951A1

TUBE,6.99 mm ID, 9.53 mm OD, 150 mm Length

- nylon, solenoid return, Includes: Ref. 27 - 29

1шт.

26

152946A1

HYD CONNECTOR

CONNECTOR - straight, nylon tube

1шт.

27

153527A1

CONNECTOR, ELEC

ADAPTER - straight

1шт.

28

153528A1

SLEEVE

- compression

1шт.

29

153529A1

UNION

NUT - compression fitting

1шт.

30

151030A1

PLUG

- port

1шт.

31

150858A1

SPECIAL BOLT,High Strength, Hex, M14 x 35mm

BOLT - hex, special

4шт.

32

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, Includes: Ref. 33

1шт.

33

154523A1

O-RING

- adapter

1шт.

34

153470A1

VALVE

- solenoid, parts list figure 8-044, Includes: Ref. 35

1шт.

35

150125A1

BOLT (MACHINE),Hex Skt

BOLT - hex socket, special

4шт.
