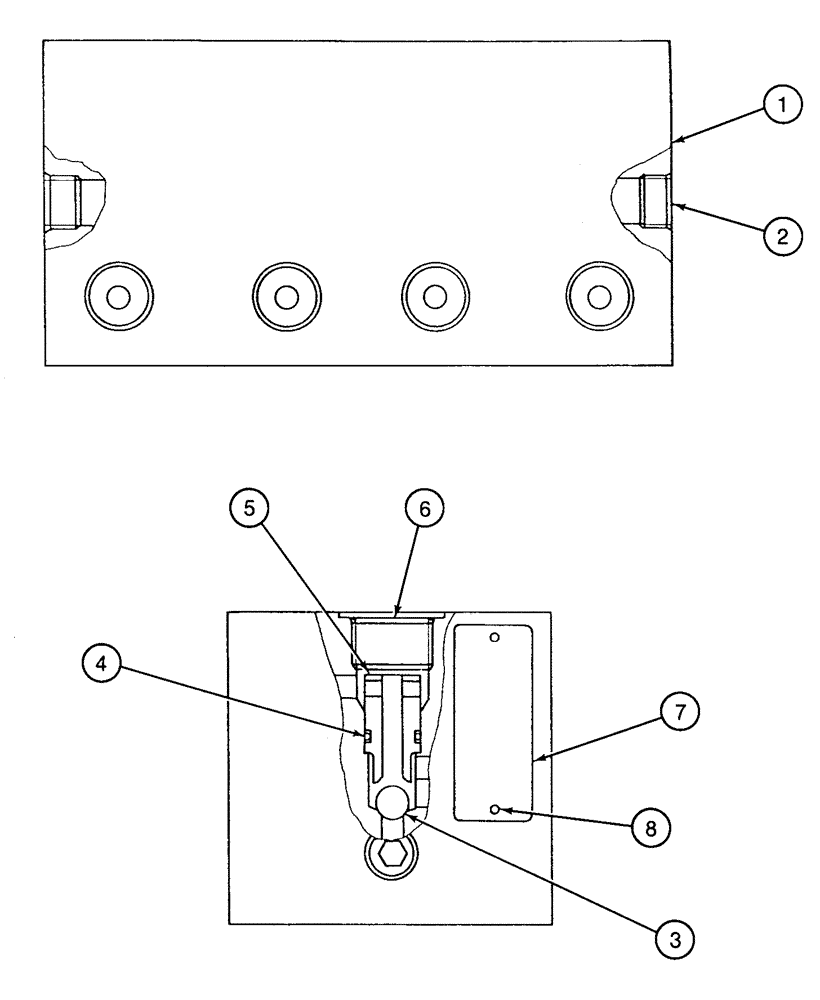

Запчасти Case 9060 (8-058) - 152744A1 SHUTTLE VALVE (08) - HYDRAULICS

152744A1

SHUT-OFF VALVE

VALVE - shuttle, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

151022A1

PLUG

- hex socket, special

2шт.

3

155976A1

BALL

- steel

4шт.

4

154458A1

O-RING

- seal, shuttle

4шт.

5

155565A1

SEAT

SHUTTLE - valve

4шт.

6

151030A1

PLUG

- port, special

4шт.

7

NSS

NOT SOLD SEPARAT

PLATE - identification

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - plate retaining

2шт.
