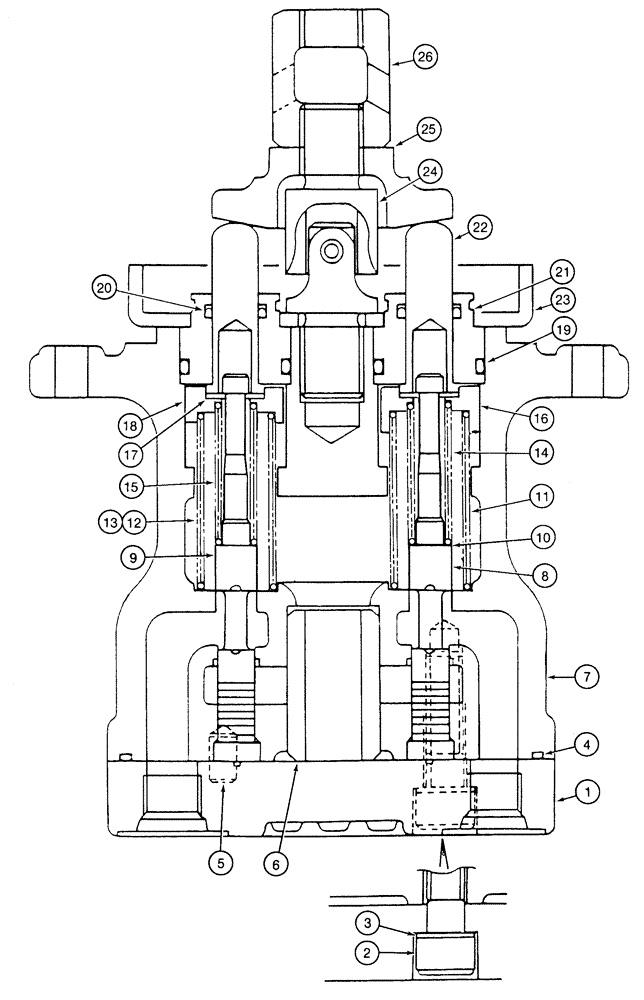

Запчасти Case 9060 (8-054) - 153316A1 REMOTE CONTROL VALVE (08) - HYDRAULICS

153316A1

VALVE

- remote control, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - closed end

1шт.

2

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 30 mm, class 12.9

2шт.

155986A1

SEAL KIT

- seal, cover, Includes: Ref. 3 & 4

1шт.

3

156164A1

SEALING WASHER

WASHER - sealing, cover

2шт.

4

155167A1

O-RING

-, Serial Range: cover-housing

1шт.

5

738-1510

LOCK PIN,M5 x 10, Slotted

PIN - roll, 5 x 10 mm

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - valve

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER - flat, special

4шт.

11

156064A1

SPRING

- valve, outer, port 3

1шт.

12

156040A1

SPRING

- valve, outer, ports 2 and 4

2шт.

13

156021A1

SPRING

- valve, outer, port 1

1шт.

14

156042A1

SPRING

- valve spool, inner

2шт.

15

156043A1

SPRING

- valve spool, inner

2шт.

16

NSS

NOT SOLD SEPARAT

SEAT - spring

2шт.

17

NSS

NOT SOLD SEPARAT

WASHER - flat, special

8шт.

18

NSS

NOT SOLD SEPARAT

SEAT - spring

2шт.

155769A1

PUSH ROD

ROD ASSEMBLY - push, Includes: Ref. 19 - 22

4шт.

155987A1

SEAL KIT

- seal, Includes: Ref. 19 & 20

1шт.

19

154491A1

O-RING

, Serial Range: --housing

1шт.

20

155292A1

SEAL

- push, Serial Range: rod,-guide

1шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - push rod

1шт.

22

NSS

NOT SOLD SEPARAT

ROD - push

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - cover, push rod end

1шт.

24

155255A1

FLEXIBLE JOINT

PIVOT - remote control valve

1шт.

25

155577A1

PIVOTING ARM

ROCKER - remote control valve

1шт.

26

156165A1

NUT

- hex, special

1шт.
