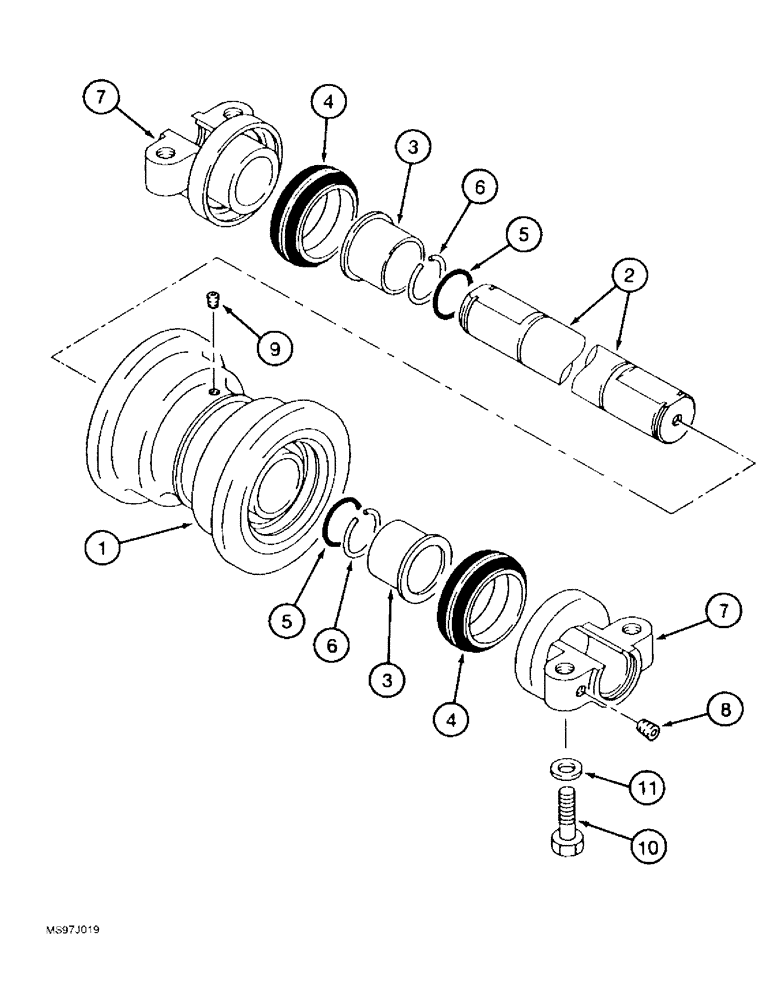

Запчасти Case 9050B (5-14) - TRACK ROLLERS, *TIMBER KING MODELS, P.I.N. DAC0531001 THRU DAC0531007 (11) - TRACKS/STEERING

162083A1

TRACK ROLLER

ROLLER ASSEMBLY - track, Includes: Ref. 1 - 9

16шт.

1

164250A1

ROLLER

HUB - inner flanges

1шт.

2

164253A1

SHAFT

- roller

1шт.

3

164251A1

BUSHING

- roller

2шт.

4

164744A1

SEAL

- face, track roller, includes two rings and two seals

2шт.

5

150200A1

O-RING

- shaft

2шт.

6

151152A1

LOCKING RING

RING - retaining, shaft retaining

2шт.

7

164254A1

COLLAR

BRACKET - mounting, track roller

2шт.

8

150821A1

PLUG

- port

2шт.

9

REF

INSTRUCTION

PLUG - port, not used in this application

1шт.

10

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, 20 - 2.5 x 80 mm, class 10.9, if used

64шт.

10

165831A1

BOLT

- special, sems, if used

64шт.

11

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

64шт.

173497A1

ROLLER

ASSEMBLY - track, Includes: Ref. 1 - 9, P.I.N. EAC0531007 AND AFTER

16шт.

1

NSS

NOT SOLD SEPARAT

HUB - inner flanges

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - roller

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - roller

2шт.

4

173656A1

SEAL

- face, track roller, includes two rings and two seals

2шт.

5

173657A1

O-RING

- shaft

2шт.

6

173658A1

RING

- retaining, shaft retaining

2шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - mounting, track roller

2шт.

8

REF

INSTRUCTION

PLUG - port, not used in this application

2шт.

9

173660A1

PLUG

- port

1шт.

10

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, 20 - 2.5 x 80 mm, class 10.9, if used

64шт.

10

165831A1

BOLT

- special, sems, if used

64шт.

11

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

64шт.
