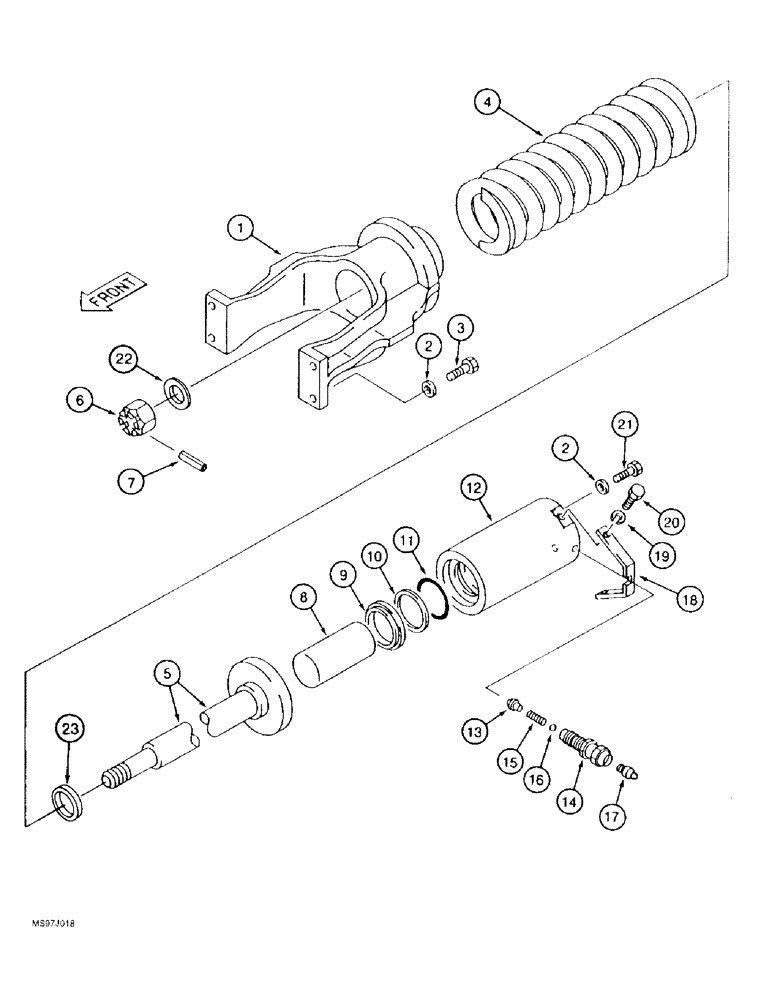

Запчасти Case 9050B (5-10) - TRACK ADJUSTER FOR TIMBER KING MODELS, P.I.N. DAC0531001 THRU DAC0531007 (11) - TRACKS/STEERING

1

162080A1

FORK

YOKE - track adjuster

2шт.

2

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

12шт.

3

626-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

4

162081A1

SPRING

- track tension

2шт.

5

164258A1

ROD

GUIDE - tension spring

2шт.

6

824-3464

NUT

- hex slotted, 64 mm - 6, class 6

2шт.

7

538-816

LOCK PIN,M10 x 100, Slotted

PIN - roll, 10 x 100 mm

2шт.

162082A1

CYLINDER

ASSEMBLY - track adjuster, Includes: Ref. 8 - 20

2шт.

8

164259A1

PISTON ROD

ROD - piston

1шт.

9

164260A1

SEAL

WIPER - rod

1шт.

10

154145A1

BACK-UP RING

RING - backup, rod seal

1шт.

11

154720A1

O-RING

- piston rod

1шт.

12

164263A1

HYD CYL SLEEVE

TUBE - cylinder, track adjuster

1шт.

150107A1

LUBE NIPPLE

VALVE - check, Includes: Ref. 13 - 17

1шт.

13

150120A1

CAP

POPPET - check valve

1шт.

14

150112A1

VALVE SEAT

BODY - check valve

1шт.

15

150115A1

SPRING

- check valve

1шт.

16

150897A1

BALL

- check

1шт.

17

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

18

164264A1

BRACKET

- mounting, check valve

1шт.

19

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

20

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

2шт.

21

827-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

4шт.

22

164265A1

SPACER

WASHER - special

2шт.

1

173663A1

YOKE

- track adjuster, P.I.N. EAC0531007 AND AFTER

2шт.

2

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

12шт.

3

626-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

4

173416A1

SPRING

- track tension

2шт.

5

173664A1

ROD

GUIDE - tension spring

2шт.

6

173414A1

SLOTTED NUT

- hex slotted, special

2шт.

Ref. # 6 is not a good part number.. for serial # DAC0531001 thru DAC0531006 use 825-3064 and for serial # DAC0531007 and after, use 173414a1 per Bob Kruschke.

1шт.

7

173413A1

PIN

- roll, special

2шт.

173440A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - track adjuster, Includes: Ref. 8 - 20

2шт.

8

173433A1

PISTON ROD

ROD - piston

1шт.

9

173434A1

SEAL

WIPER - rod

1шт.

10

REF

INSTRUCTION

RING - backup, not used in this application

1шт.

11

173435A1

SEAL

- piston

1шт.

12

173432A1

CYLINDER ASSY.

TUBE - cylinder, track adjuster

1шт.

150107A1

LUBE NIPPLE

VALVE - check, Includes: Ref. 13 - 17

1шт.

13

150120A1

CAP

POPPET - check valve

1шт.

14

150112A1

VALVE SEAT

BODY - check valve

1шт.

15

150115A1

SPRING

- check valve

1шт.

16

150897A1

BALL

- check

1шт.

17

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

18

173436A1

GUARD

BRACKET - support, check valve

1шт.

19

173438A1

LOCK WASHER

WASHER - lock, special

2шт.

20

173437A1

BOLT

- hex, special

2шт.

21

828-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

4шт.

23

173674A1

SHIM

- washer, spring guide

2шт.
