(5-08) - IDLER WHEEL, TIMBER KING MODELS, P.I.N. DAC0531001 THRU DAC0531007

Запчасти Case 9050B (5-08) - IDLER WHEEL, TIMBER KING MODELS, P.I.N. DAC0531001 THRU DAC0531007 (11) - TRACKS/STEERING

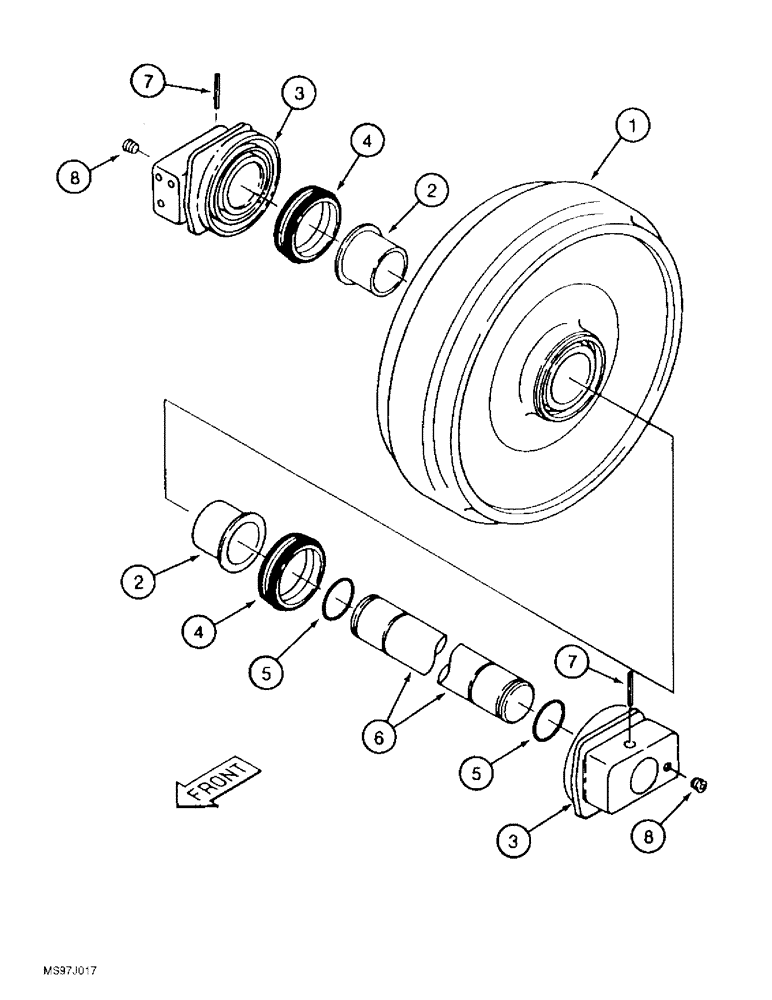

Схема запчастей Case 9050B - (5-08) - IDLER WHEEL, TIMBER KING MODELS, P.I.N. DAC0531001 THRU DAC0531007 (11) - TRACKS/STEERING
4
3
2
4
6
5
5
8
1
2
7
8
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

162084A1

FRONT IDLER

WHEEL ASSEMBLY - idler, track, Includes: Ref. 1 - 8

2шт.

1

NSS

NOT SOLD SEPARAT

WHEEL - idler, track

1шт.

2

165827A1

BUSHING

- idler wheel

2шт.

3

NSS

NOT SOLD SEPARAT

HUB - idler support

2шт.

4

165829A1

SEAL

- face, includes two rings and two seals

2шт.

5

165830A1

O-RING

- shaft

2шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - idler wheel

1шт.

7

165828A1

PIN

- hub

2шт.

8

150821A1

PLUG

- port, hub

2шт.

173652A1

FRONT IDLER

WHEEL ASSEMBLY - idler, track, Includes: Ref. 1 - 8, P.I.N. EAC0531007 AND AFTER

2шт.

1

NSS

NOT SOLD SEPARAT

WHEEL - idler, track

1шт.

2

173666A1

BUSHING

- idler wheel

2шт.

3

NSS

NOT SOLD SEPARAT

HUB - idler support

2шт.

4

173669A1

SEAL

- face, includes two rings and two seals

2шт.

5

173672A1

O-RING

- shaft

2шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - idler wheel

1шт.

7

173670A1

PIN, ROLL

PIN - hub

2шт.

8

173671A1

PLUG

- port, hub

2шт.
