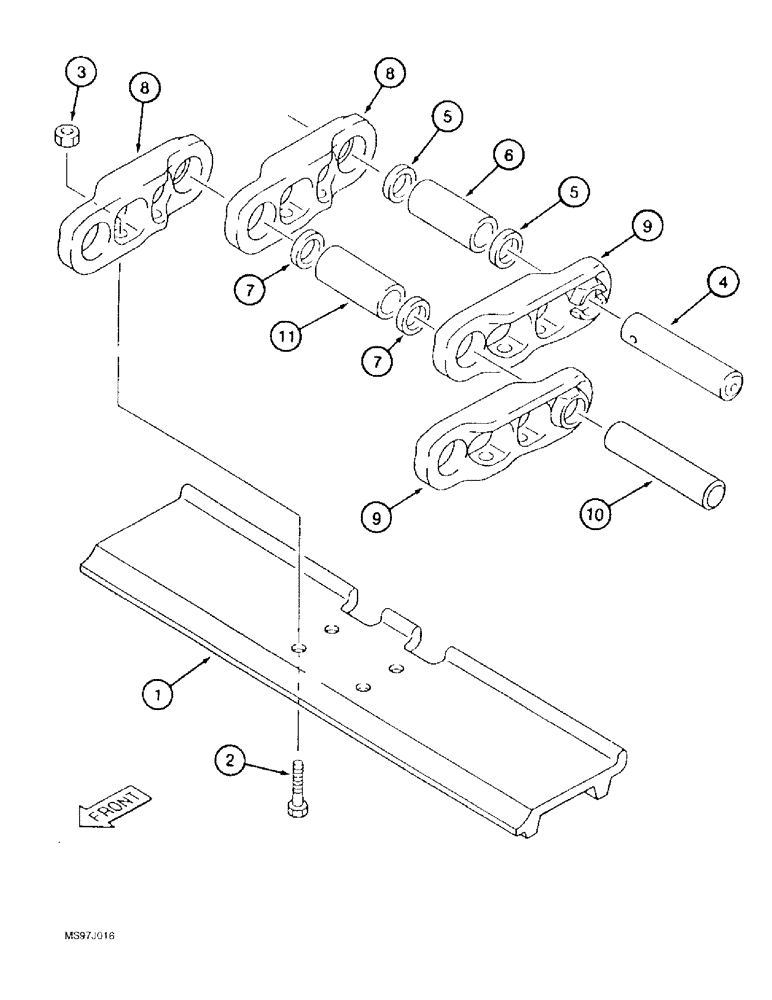

Запчасти Case 9050B (5-06) - TRACK CHAIN AND SHOES, *TIMBER KING MODELS, P.I.N. EAC0531007 AND AFTER (11) - TRACKS/STEERING

REF

INSTRUCTION

CHAIN ASSEMBLY - track, includes track shoes, Includes: Ref. 1 - 11

2шт.

1

173644A1

TRACK SHOE

SHOE - track, two bar grouser, 711 mm (28 inch) wide

49шт.

2

173661A1

BOLT

- special, track shoe mounting

196шт.

3

171336A1

NUT

- special, shoe retaining

196шт.

173646A1

TRACK CHAIN

CHAIN ASSEMBLY - track, without track shoes, Includes: Ref. 4 - 11

1шт.

4

173429A1

PIN

- master link

1шт.

5

173393A1

SPACER

- bushing, master pin

2шт.

6

171331A1

BUSHING

- master

1шт.

7

173430A1

SEAL

- track

98шт.

8

173647A1

LINK

- track, right-hand, standard, right-hand

49шт.

9

173648A1

LINK

- track, left-hand, standard, left-hand

49шт.

10

173649A1

PIN

- track, standard

48шт.

11

171330A1

BUSHING

- pin, standard

48шт.
